Adjusting the armrest height
1) Loosen the Allen head screw on the side panel with a
size 3 Allen key (see Fig.5).
2) Slide the armrests up or down to the desired position.
3) Tighten the Allen head screw.

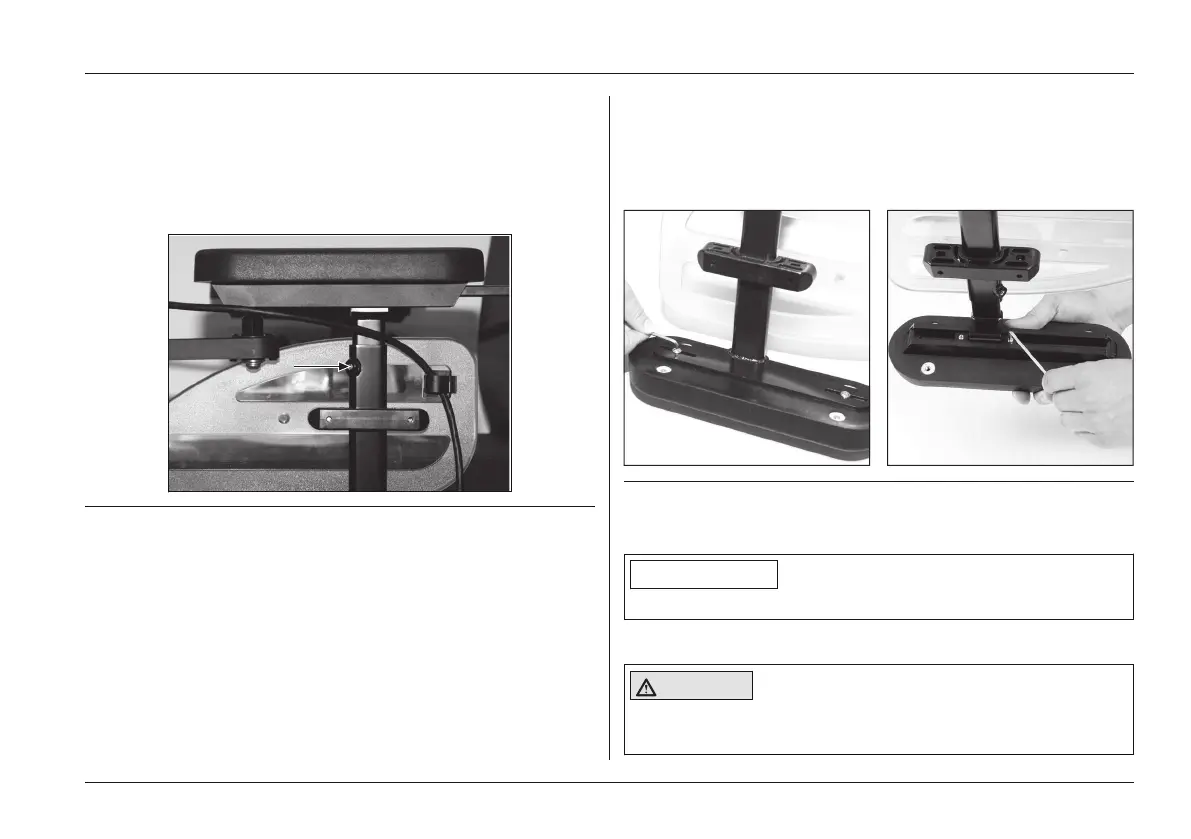

Fig. 5 Allen head screw for height adjustment
Adjusting the armrest to the forearm length
1) Depending on the version, loosen 2 x Allen head screws
on the bottom of the armrest (see Fig.6).
2) Adjusting the armrest:
→ Version 1:Push the armrest along the slotted holes
to the front or back into the desired position ((see
Fig.6), left).
→ Version 2: Slide the armrest with the spare tube for
ward or backwards along the attachment rail to the
desired position ((see Fig.6), right).
3) Tighten the 2 Allen head screws.
Fig. 6 Adjusting the armrest depth
5.3.4 Adjusting the footrests
INFORMATION
To remove and install the footrests: see Page21.
Adjusting the lower leg length
CAUTION
Exposed pinch points
Pinching, crushing of fingers
Preparation for Use
