18 | Ottobock B600
► Ensure that your fingers are not in the danger area
when flipping the footrests up or down.
1) Loosen the grub screws or Allen head screws (depend
ing on the version) on the footplate bar (see Fig.7).
2) Adjust the footplate bar to match the user's lower leg
length.
INFORMATION: Ensure that the footplate bar is
inserted into the swivel segment by at least 40mm.
3) Tighten the grub screws or Allen head screws (depend
ing on the version) on the footplate bar.

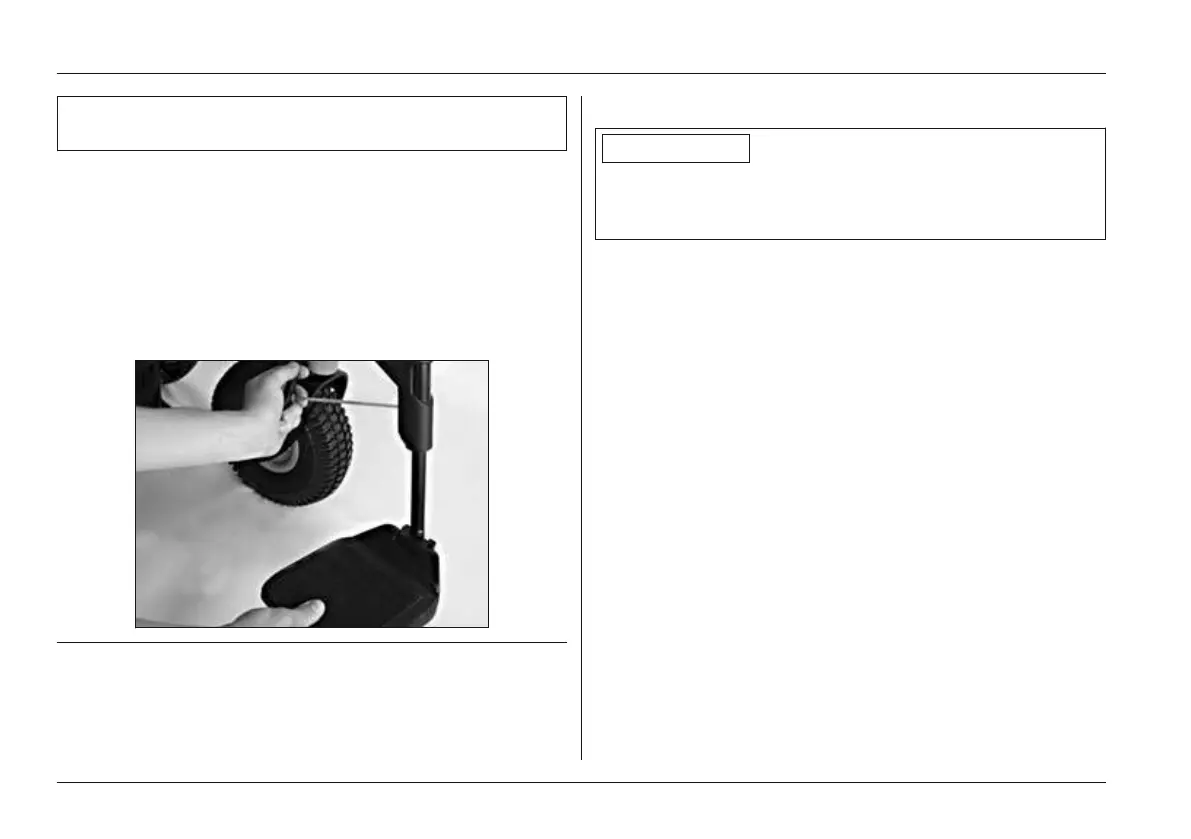

Fig. 7 Adjusting the lower leg length (standard footrest)
5.3.5 Adjusting the belt lengths
To adjust the belt lengths: see Page67.
5.3.6 Adjusting the control panel
INFORMATION
The power wheelchair may be equipped with an optional
height-adjustable or swing-away control panel holder (see
Page65).
Adjusting the control panel to the forearm length
1) Loosen the 3 set screws on the bottom of the armrest.
2) Slide the rail with the control panel forwards or back
wards.
INFORMATION: If the control panel rail is too long
it can be shortened. Please contact the qualified
personnel who adjusted your product.
3) Tighten the 3 set screws on the bottom of the armrest.
Preparation for Use
