4) Manually fold the backrest forward on to the seat sur
face.

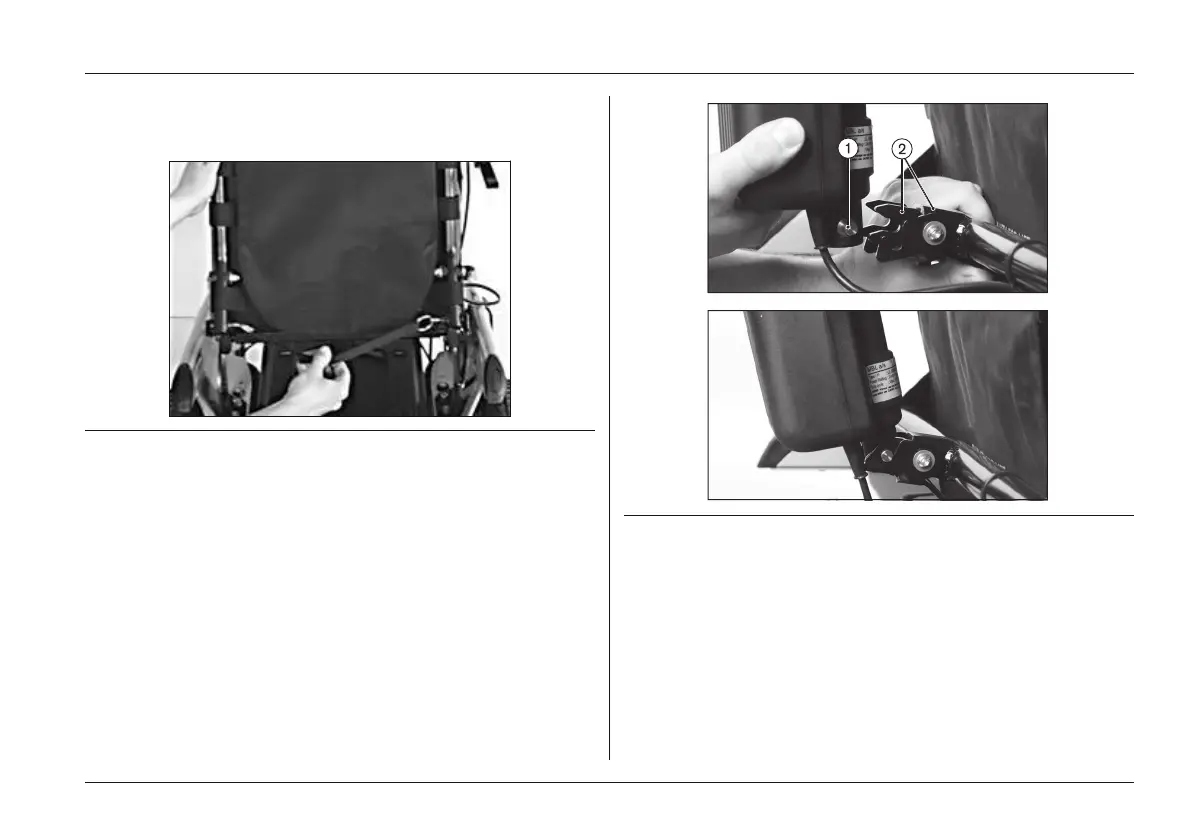

Fig. 49 Folding the backrest down
Folding down the backrest with back angle adjustment
1) Remove the side panels.
2) Push the lever (see Fig.50, item 2) on the back of the
backrest up and unlock the cross bolt (see Fig.50, item
1) at the bottom end of the gas compression spring or
adjustment drive.
3) Remove the cross bolt from the bracket.
4) Fold the backrest forward on to the seat surface.
Fig. 50 Removing the cross bolt
1 Cross bolt 2 Lock with lever
6.13.3 Reducing the transportation size – Recaro® seat
To remove/install the Recaro® seat on the mobility base and
to fold the backrest down: see Page51.
6.13.4 Preparing for transport
1) Position the power wheelchair in its transport location.
2) Turn the control unit off.
