5.8 Separately Mounted Transmitter Installation
(1) The maximum transmission cable length varies with the type of sensor unit: locate the transmitter within this
range.
(2) Secure the transmitter to a horizontal or vertical steel pipe 2 inches in nominal size using the U-bolts
furnished as standard accessories.
(3) Installation location should be accessible for maintenance and in good environment.
(4) The customer to furnish the stanchion (steel pipe).
CAUTION
Avoid installation in such location as
① Difficult to access for maintenance and servicing.
② Excessive temperature changes and vibration.
③ Potential immersion in water.

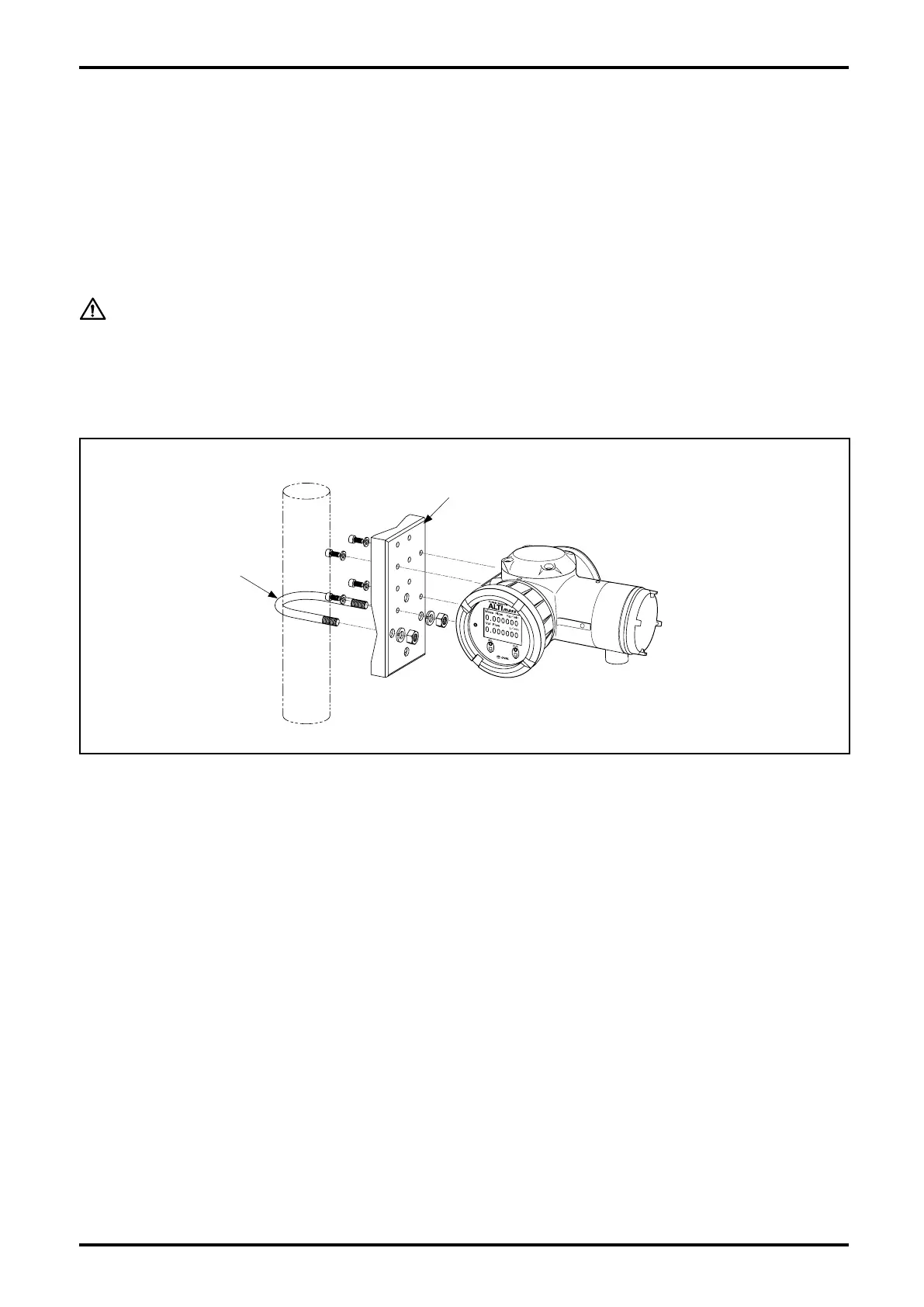

Installation on a vertical pipe
U-bolt
(2˝×1) ※
Hold-down hardware ※
※: U-bolts, hold-down hardware and bolts
are standard accessories.
Fig.5.9
To Next Page
