L-737-3-E
20
Fig.5.13

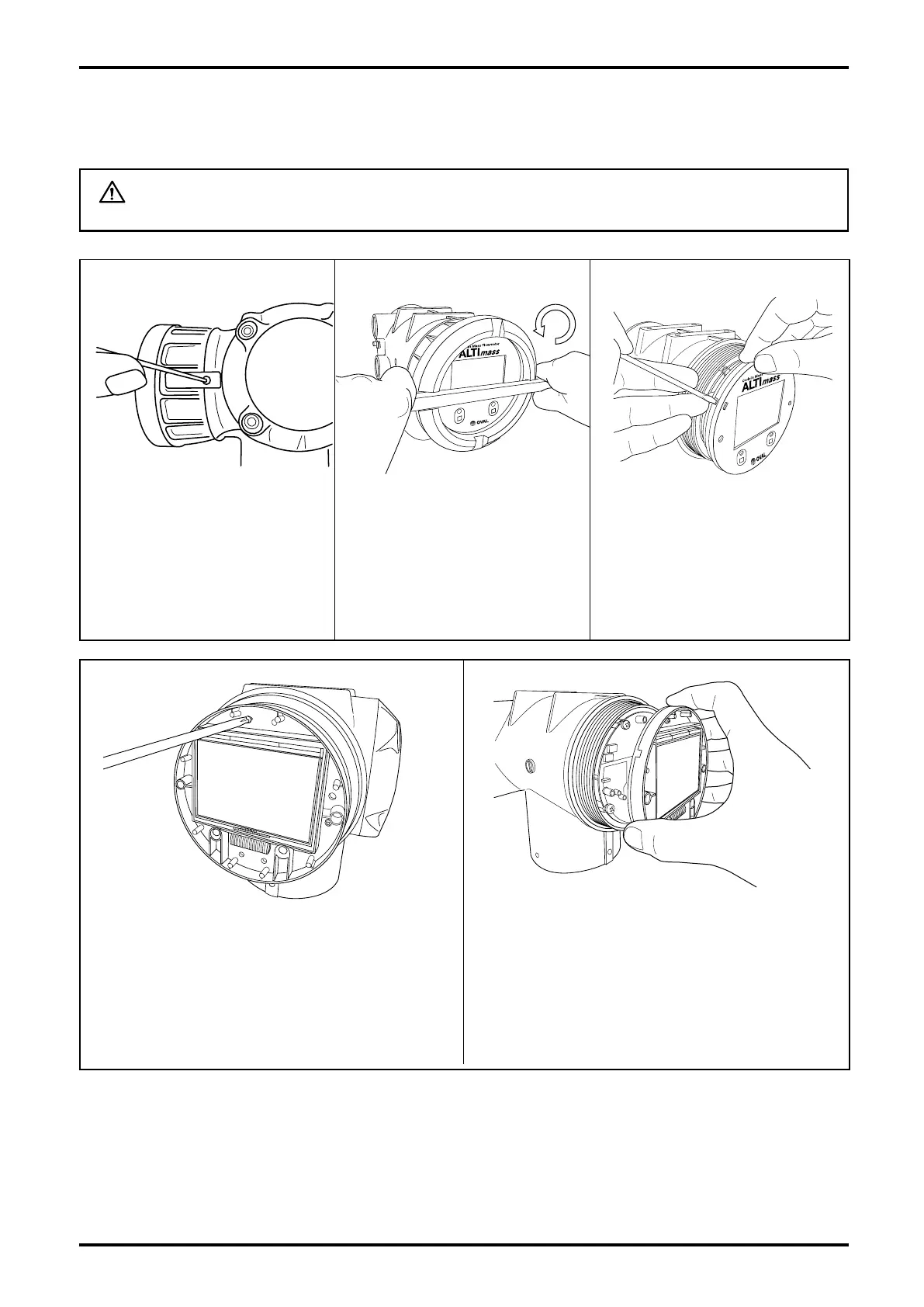

5.10 How to Change Transmitter Display Orientation
The transmitter display may be rotated through 360 in steps of 90°within the housing.
WARNING: Be sure to turn off power and discharge your static electricity before you
work.
② Using a flat tool 10mm wide
approx., turn the display lid
counterclockwise to loosen,
and loosen further by hand. (Be
careful so as not to damage the
finish.)
③ Disengage the hooks (3 places).
(Recommended tool: Precision
flathead screw-driver)
Fig.5.12Fig.5.11
① Remove the locking part.
Fig.5.15
④ Loosen display unit fitting screws (3 places) with
precision flathead screwdriver. "Set washers" to
prevent screws from falling out are attached on the
back of display; do not completely remove screws.
⑤ Separate the display unit.
Fig.5.14
To Next Page
