Owon HSA1000 Series User Manual

4.Quick Start
13
1
2
3 4 5 6 7 8 9
10
11 12 13 1514
16
17
19
18
20
21
22
23
24
25
27
30
26
29
28
35
34
33
32
31

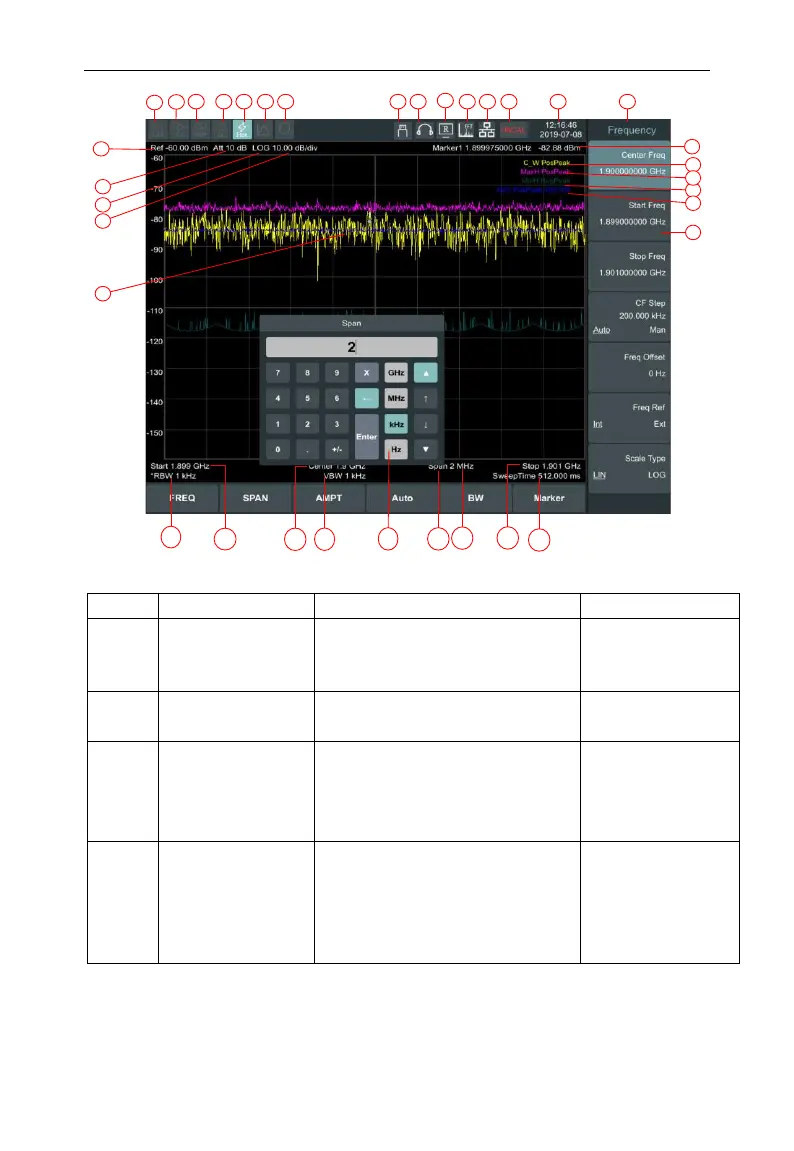

Figure 4-4 User interface
NO.
Name
Description
Related Key
①
External
reference
Set the reference
frequency as Int (internal)
or Ext (external) input.
FREQ →
[Freq Ref]
②
Preamplifier
Turn on/off the
preamplifier.
AMPTD→
[Preamplifier]
③
Sweep status
Set the sweep status to
Single or Cont
(continuous).
【Sweep】→
[Sweep
Single] or
[Sweep Cont]
④
Source
Show the source type as
CW (Continuous Wave) or
TG (Tracking Generator),
press to turn on/off the
source output.
【Source】→
[Output] and
[Source GEN]
