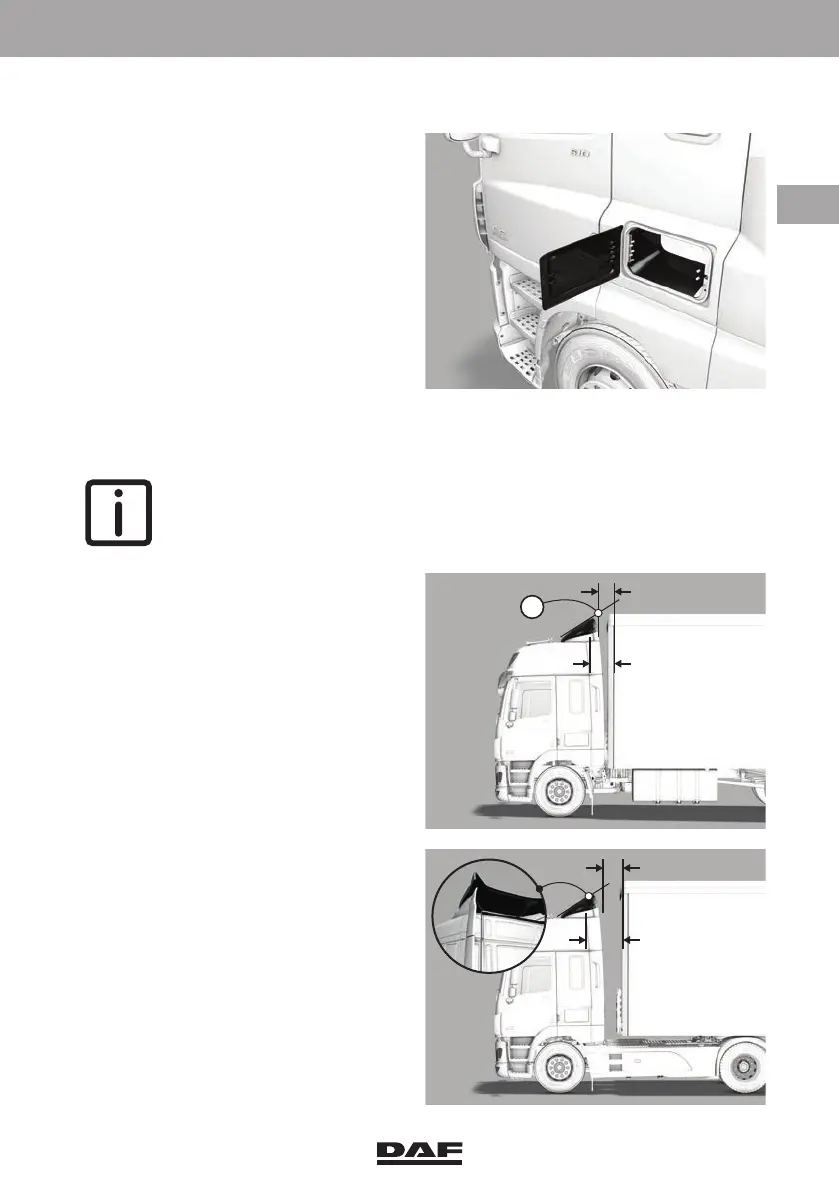

3.1.19 Tool/storage compartments
Tool/storage compartments are located
on both sides and can be accessed
from outside the cabin. The
compartment can also be accessed
from inside the cabin. Unlock the cover
from the inside using the knob located
between the grab handles on the door
pillars and the seat.
3.1.20 Adjusting the roof spoiler
NOTE: Correct adjustment of the roof spoiler is essential to minimise fuel
consumption.
1. Place the vehicle on a level and
horizontal surface. Make sure that
in the case of a tractor and semi-
trailer combination the tractor is
straight in front of the semi-trailer.
2. Determine the centreline of the
vehicle and put a slat on the
superstructure roof protruding in the
direction of the cabin.
3. Put another slat (as a tangent) onto
the outer roof spoiler edge (P)
pointing in the direction of the
superstructure.
Both slats must cross at half the
distance (½ X) between the roof
spoiler edge and the start of the
superstructure.
D001776
D001779
1
/
2
X
X
P
D001778
1
/
2
X
X
