136
Master display
4.1 GENERAL
The master display is part of the Vehicle Intelligence Centre (VIC-3). The master
display consists of two different fields: an indication bar and an interactive and dialogue
area.
In the interactive and dialogue area, messages can be displayed to show warnings and
information regarding the function and operation of the various systems. These
messages are displayed as pop-up screens.
In addition, the system contains a Menu Control Switch (MCS) and a buzzer.
4.2 MASTER DISPLAY

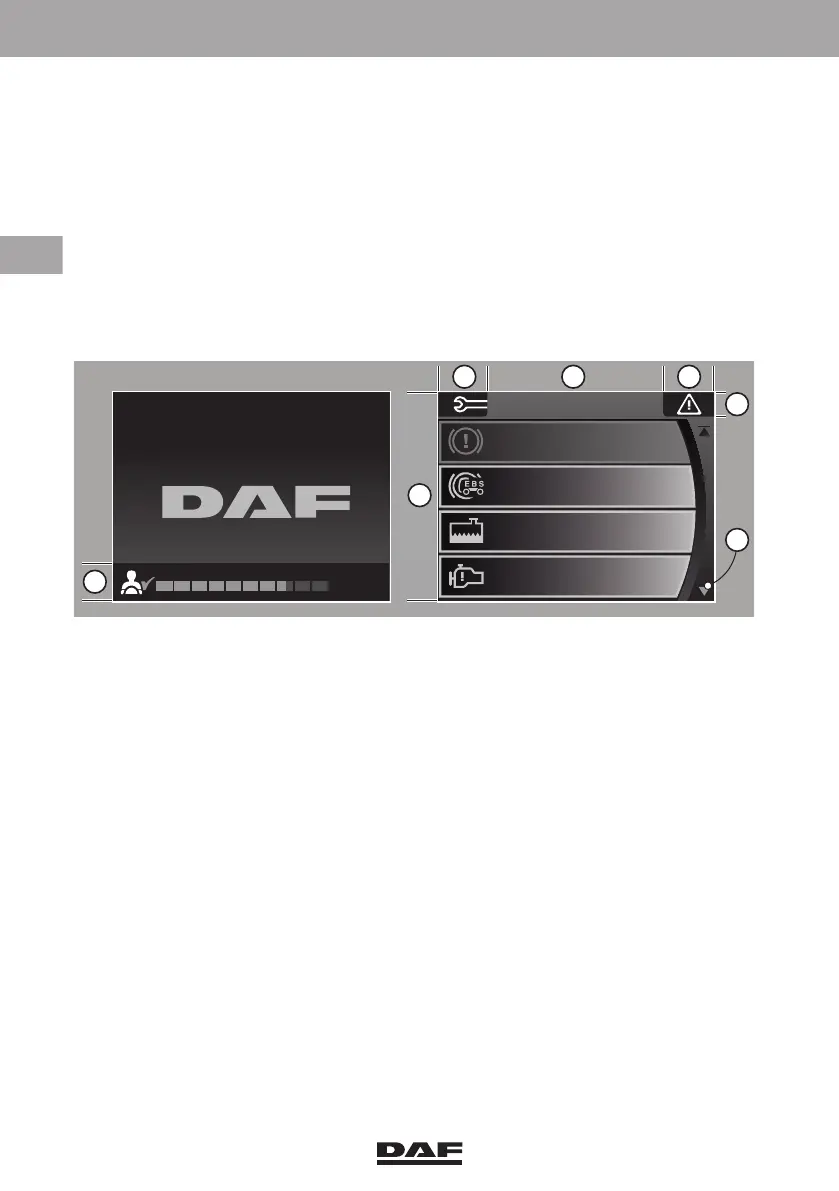

D001661-3
Warnings
Air pressure too low
EBS truck malfunction
Coolant level low
Engine malfunction
75%
A
C
1 2 3
4
B
A Interactive and dialogue area.
B Indication bar.
C Driver Performance Assistant
(DPA) status bar.
1 Symbols of selected menu. See
section 'Menu overview'.
2 Menu title. If selected via the
Menu Control Switch (MCS) or the
Steering Wheel Switches (SWS).
3 Warning indicators. See section
'Warning indicators on master
display'.
4 Scroll function available.
In the interactive and dialogue area various information can be displayed such as;
– System warnings. See section 'System warnings'.
– Information and settings.
– Main menu. See section 'Menu overview'.
DW63246305.book Page 136 Friday, March 22, 2019 4:54 PM
