 Stabilizers pins test (Fig. 5.21 - C)
This test is used to check if the microswitches on the stabilizers pins are working property.
To do this test, set the stabilizers pins with the confi gurations of the following table
and check if for both situations, the display shows the same symbol of the table.
PINS SYMBOL
ALL THE STABILIZERS PINS COMPLETELY IN
ONE ORE MORE STRABILIZERS PIN NOT COMPLETELY IN
!
WARNING!
Inform the responsible personnel of any problem encountered.
Clicking on
SENSORS TEST you can check if all the safety sensors of the machine are
working property (Fig. 5.22 and 5.23).

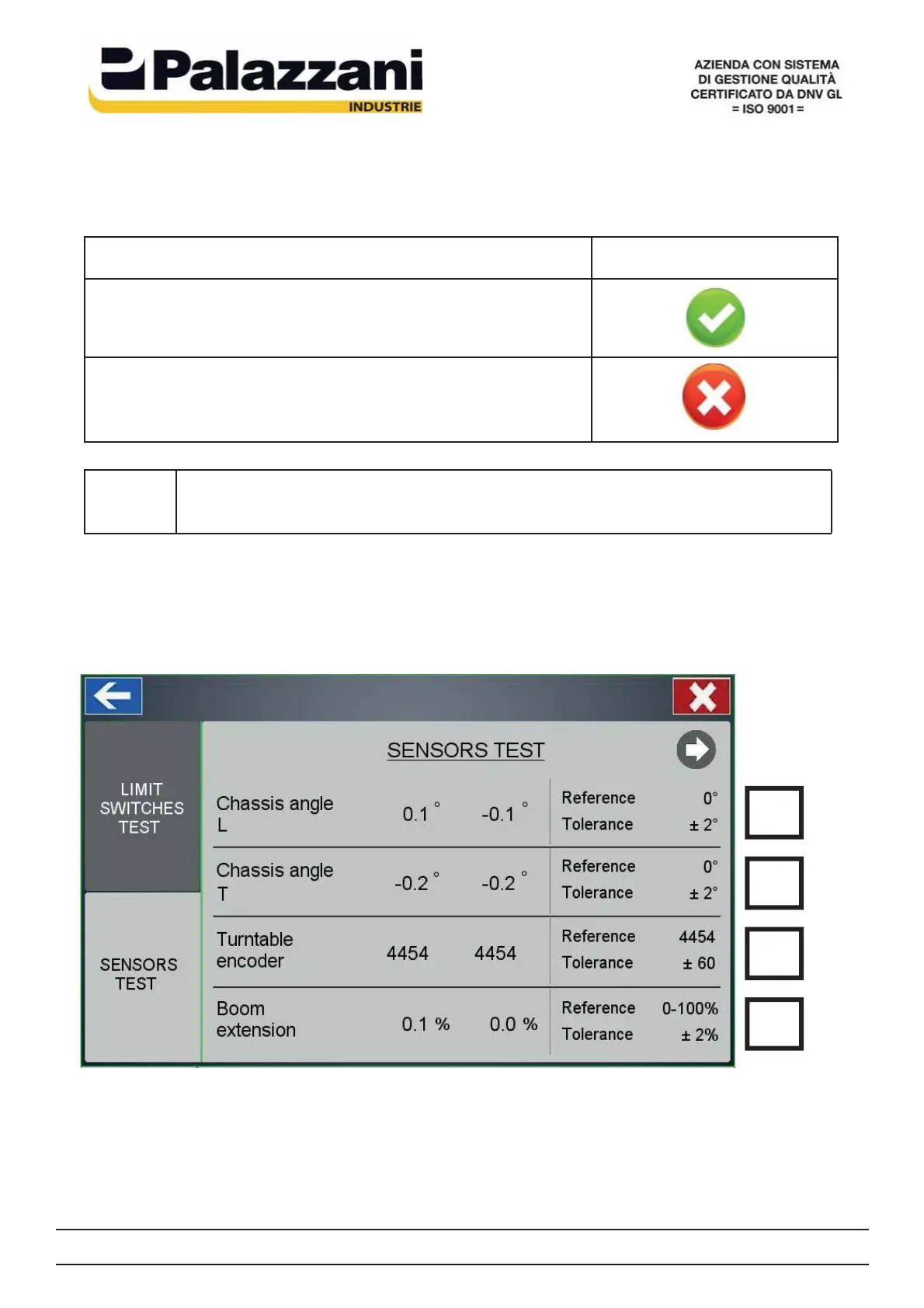

Fig. 5.22
B
A
C
D
