PALAZZANI RAGNO XTJ 43 - Right Side Stabilizers Configuration Test (Fig. 5.21 - A); Right Side Stabilizers Configuration Test (Fig. 5.21 - B)

Tel. 0039 030 6857073 - Fax 0039 030657079 info@palazzani.it - www.palazzani.it
Pag. 91OM5029_GB

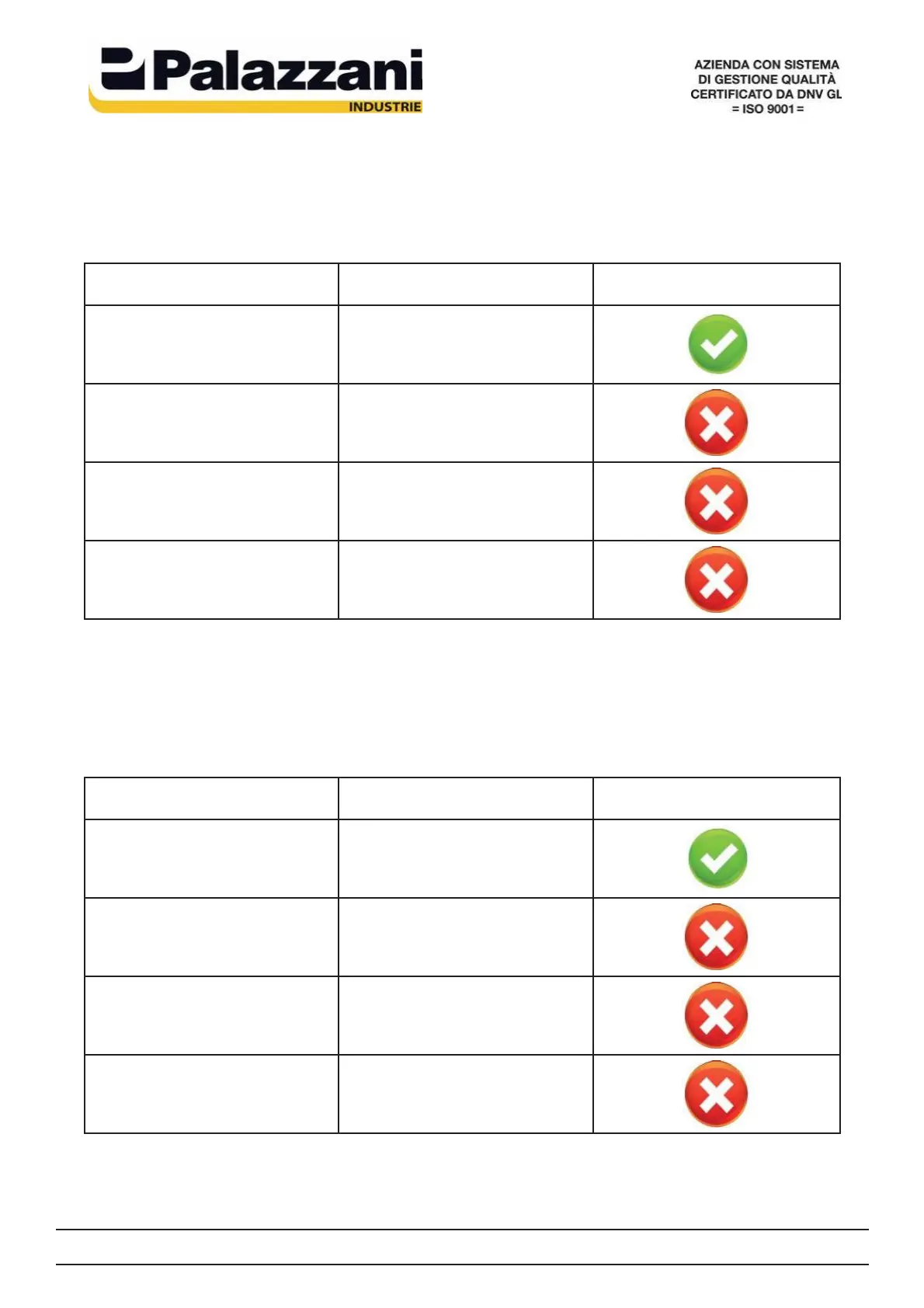

 Right side stabilizers confi guration test (Fig. 5.21 - A)
This test is used to check if the microswitches that detect the position of the stabilizers n°2 e
n°4 (right side of the machine) are working property.
To do this test, set the stabilizers with the confi gurations of the following table and check that
for all the 4 situations, the display shows the same symbol of the table.
STABILIZER 2 STABILIZER 4 SYMBOL
LARGE LARGE
LARGE NARROW
NARROW LARGE
NARROW NARROW
 Right side stabilizers confi guration test (Fig. 5.21 - B)
This test is used to check if the microswitches that detect the position of the stabilizers n°1 e
n°3 (left side of the machine) are working property.
To do this test, set the stabilizers with the confi gurations of the following table and check that
for all the 4 situations, the display shows the same symbol of the table.
STABILIZER 1 STABILIZER 3 SYMBOL
LARGE LARGE
LARGE NARROW
NARROW LARGE
NARROW NARROW
