Pag. 90OM5029_GB

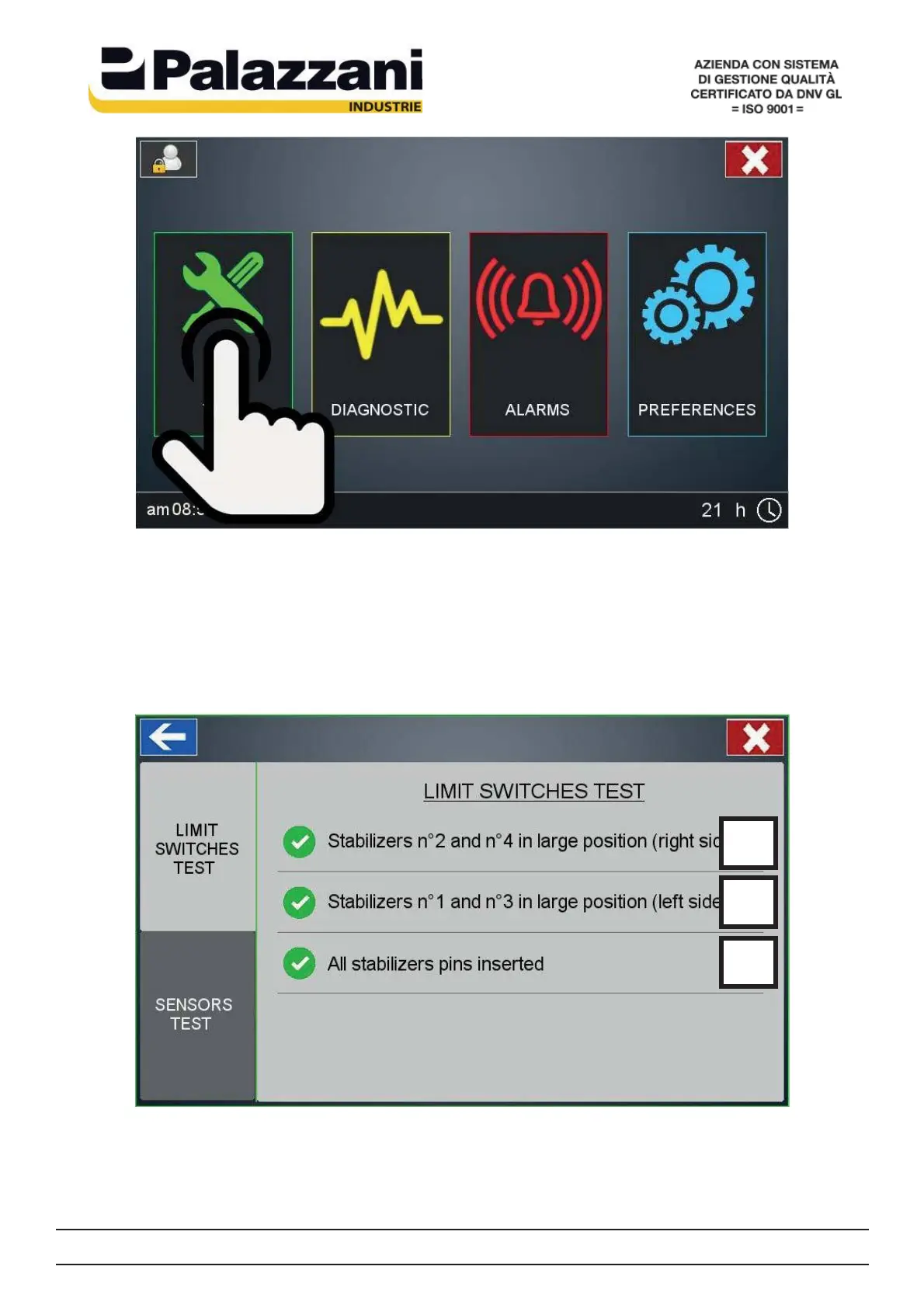

From the microswitches page (Fig. 5.21) is possible to check the proper operation of
the following signals:
- microswitches for the confi guration of the stabilizers on the right side (stab. 2 and 4)
- microswitches for the confi guration of the stabilizers on the left side (stab. 1 and 3)
- stabilizers pins
Fig. 5.20
Fig. 5.21
A
B
C
