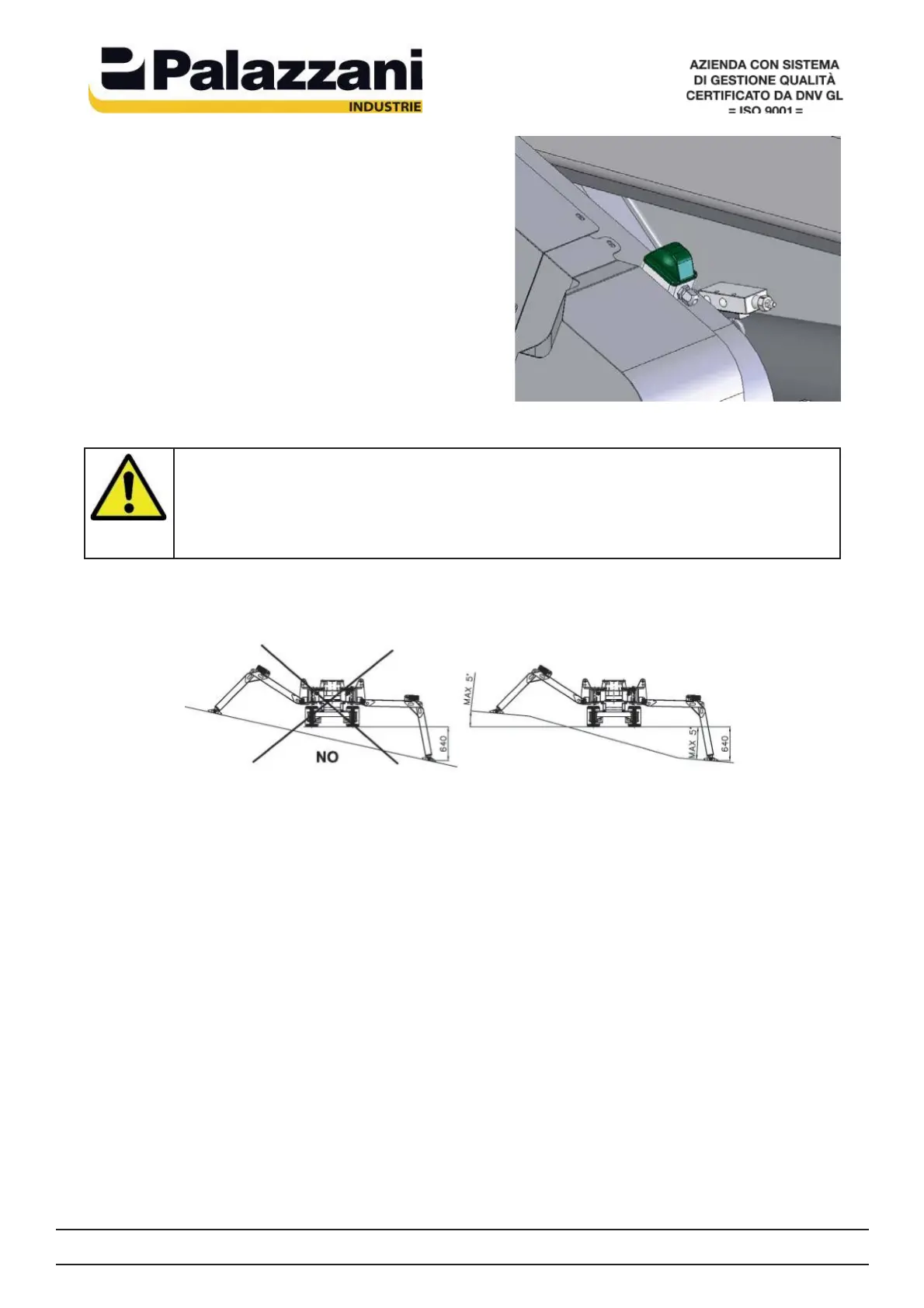

Fig 3.9
Fig 3.10
To retract the stabilizers, check that the green
light on the turntable (Fig. 3.9) is lighted on.
Turn the key 2 of fi g. 3.1 on stabilizer symbol,
use the accelerator level part. 6 of fi g. 3.4 and
the level from 1 to 4 to the lifting of stabilizers
direction until the stabilizers are retracted. This
operation can be done in automatic mode using
the selector on the main desk (11 fi g. 3.1) or the
control panel at ground if the selector 10 of fi g.
3.1 is on “AUT”.
DANGER
The max slope between the two support planes of the stabilizers plates can
not exceed 5°, independently from the escarpement, to avoid the machine
sliding due to the limited friction resistance (Fig. 3.10).
