Telescopic in
While the engine is running, open the box 2 containing the levers to move the boom and
act on VD4 to put the telescopic in (Fig. 4.4) till the end of the extensions. check the
green sticker on the box 2 to know exactly the operation of every lever.
Boom lowering
To lower the boom, move the lever VD3 of the distributor and in the same time press
the electrovalve EV23 (fi g.4.4). Using the hydraulic levers of the distributor, you are
excluding all the safety devices of the machine, so recovery interventions must be
executed exclusively by specialized personnel, authorized by the employer
Turntable rotation
To rotate the turret, use the lever VD5 of the distributor and in the same time press the
electrovalve EV26A or EV26B depending on the direction of the movement.
Every electrovalve works for one direction only, so if the maneuver doesn’t work, be
sure to press the right one.
EV23
VD6
VD5
VD4
EV10EV26A EV26B
VD3

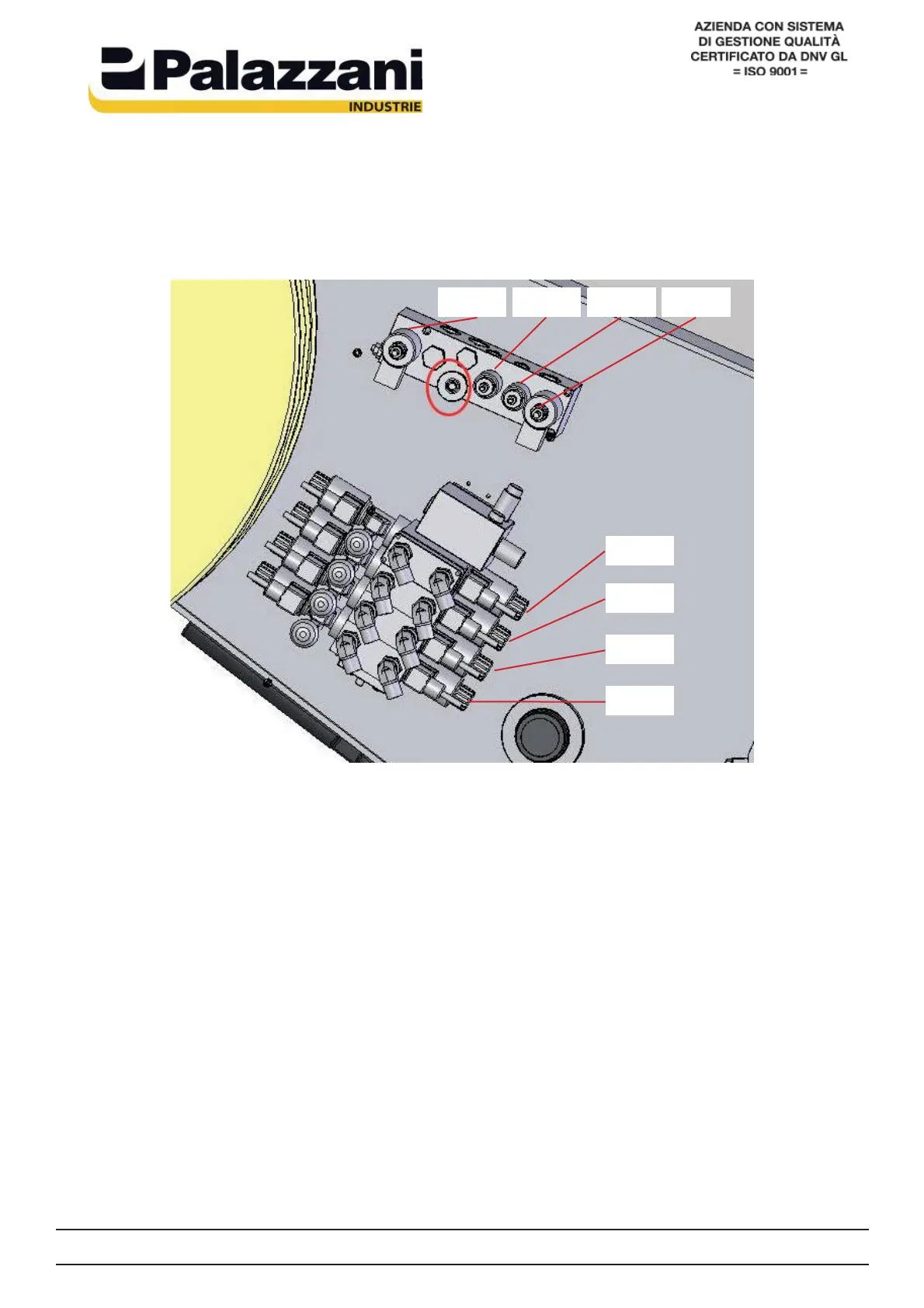

Fig. 4.4
