ATTENTION!

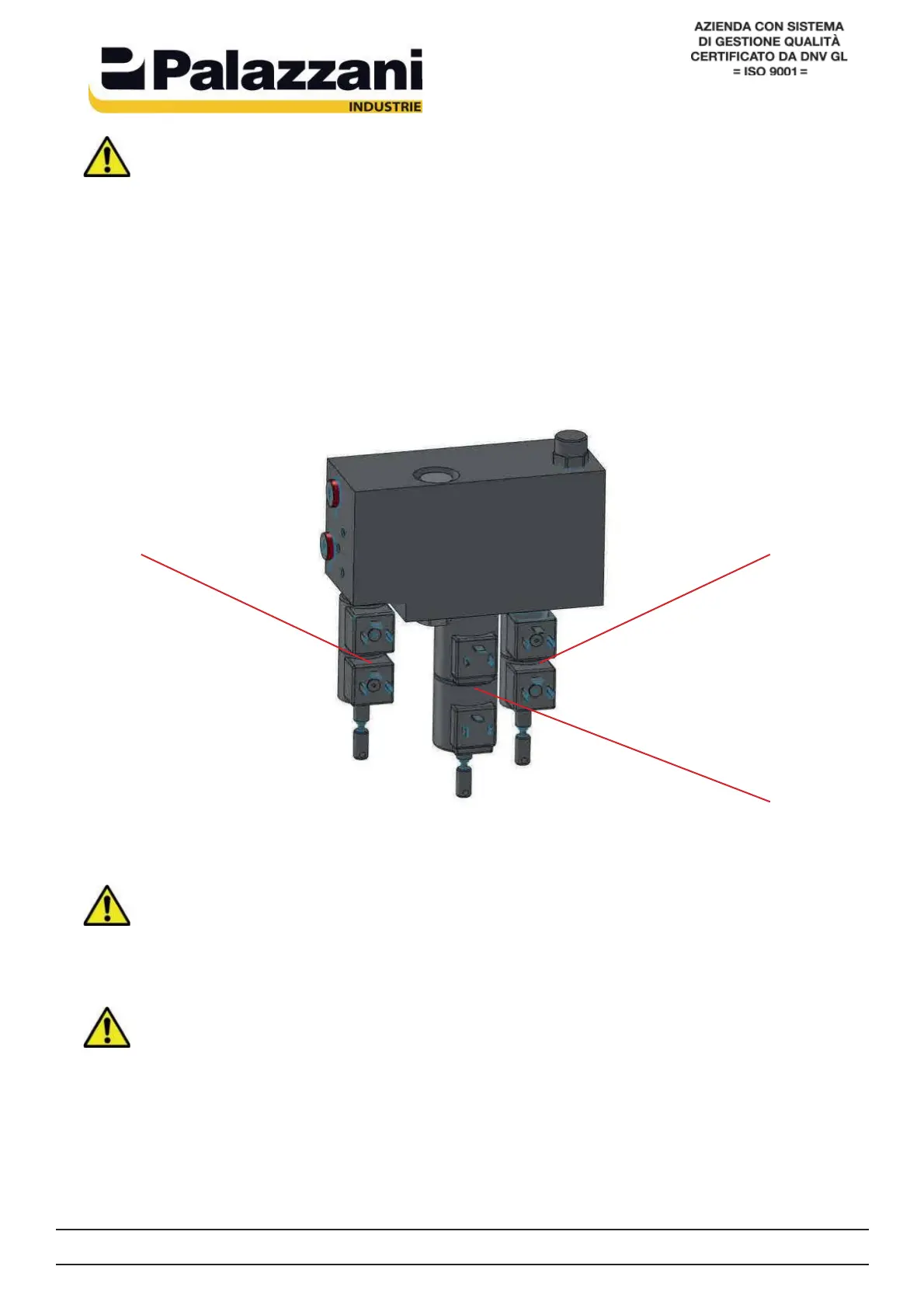

During the boom emergency movements, the basket levelling is not automatic,
but the operator must do it manually acting on the electrovalve EV16; you must pull or
push the electrovalve pin to level the basket in one direction or in the other one.
This operaion works if the operator on the ground is moving the boom or the jib only.
If you need to move the levelling only, keep pushed the electrovalve EV10 (Fig. 4.4)
and in the same time the valve EV16. When the basket reaches the right level, you can
release it. When the electrovalve EV10 is pushed manually, you can also press the valve
EV15 to rotate the basket and EV17 to extent and retract the jib (Fig. 4.5).
EV16EV15
EV17
Once the operation has been completed, inform the responsible personnel so that
they control the machine, also informing about how the machine has been used and in
which conditions the failure has occurred.
The manual activation of the electrovalves EV09 and EV23 must be justifi ed on
the register of the machine manual, and the valves must be locked again with the lead
wire before start the work.
Tampering unjustifi ed of these valves will void the manufacturer’s responsibility.
