COPPIE DI SERRAGGIO (kgm)
Classe della
vite
Diametro della vite
ISO DIN M 10 M 12 M 14 M 16 M 18 M 20 M 22 M 24 M 27 M 30
8,8 8G 4 7 12 18 26 33 44 57 80 105
10,9 10K 6 8,5 15 22 32 41 53 69 100 127
12,9 12K 8 10 18 26 38 49 63 82 115 150

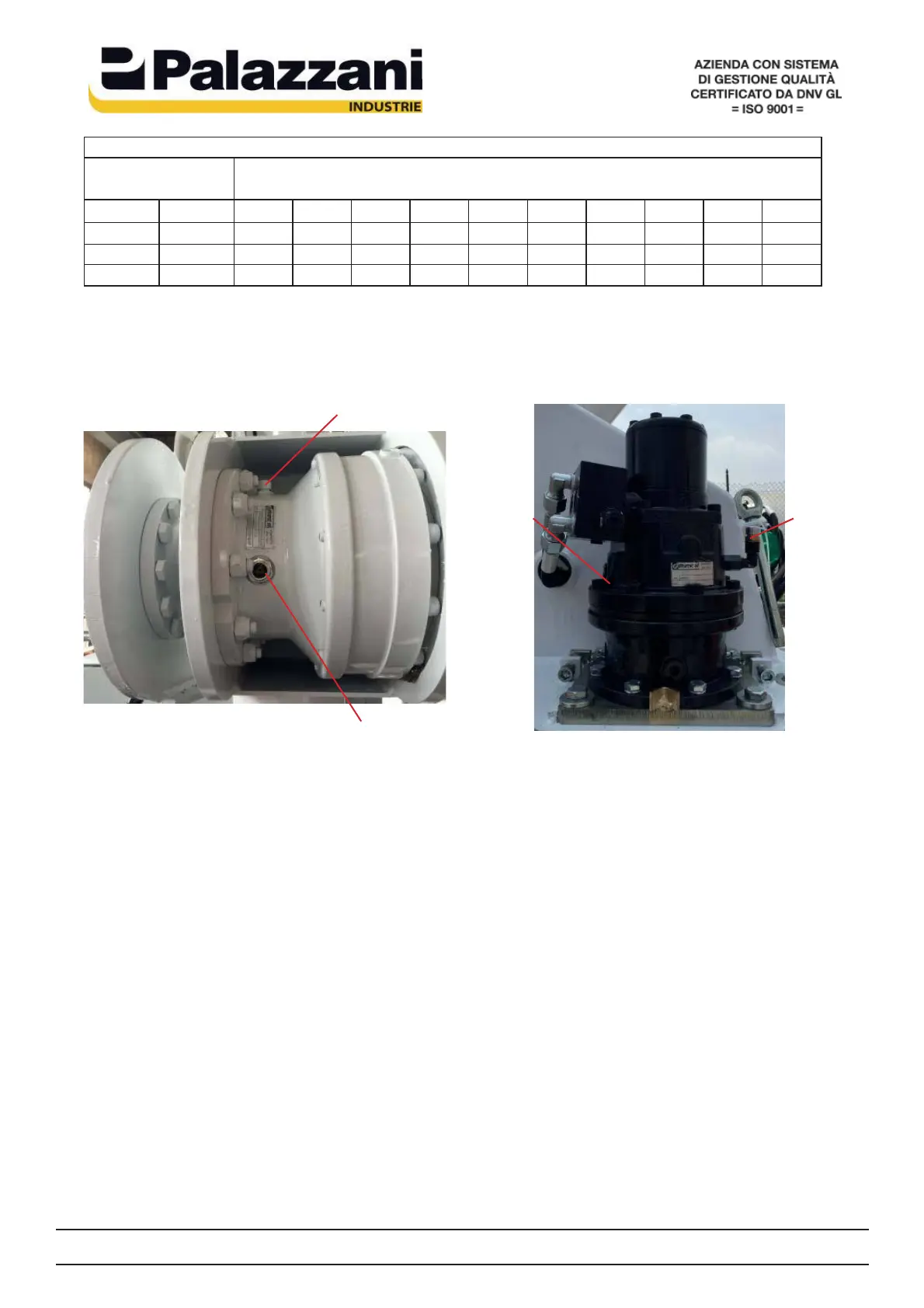

Check the oil level in the reducer gear for the cage levelling by means of the
special display Fig. 5.4 and Fig. 5.5.
When the display is in horizontal position, the oil level has to be at the middle. If not
refi ll by means of the dedicate cap
Check the play of the reducer and the slewing
Check all the microswitch (stabilizers pins, stabilizers articulations...)
Fig. 5.4
Fig. 5.5
Display
Display
Re ll
Re ll
