Check the correct functioning of the outreach limiting device in this way:
select the large position for all the stabilizer
set up the machine lifting up the tracks about 15/20 cm
remove every weight from the basket
open the jib and lower the boom horizontal
with the boom horizontal, extend it till the stop of the extention and the
lowering of the boom
in these conditions, verify that the distance between the turntable center and
the basket border (R1, look Fig. 5.6) is the same of the value written in the
chapter 1 with a tollerance of 30 cm

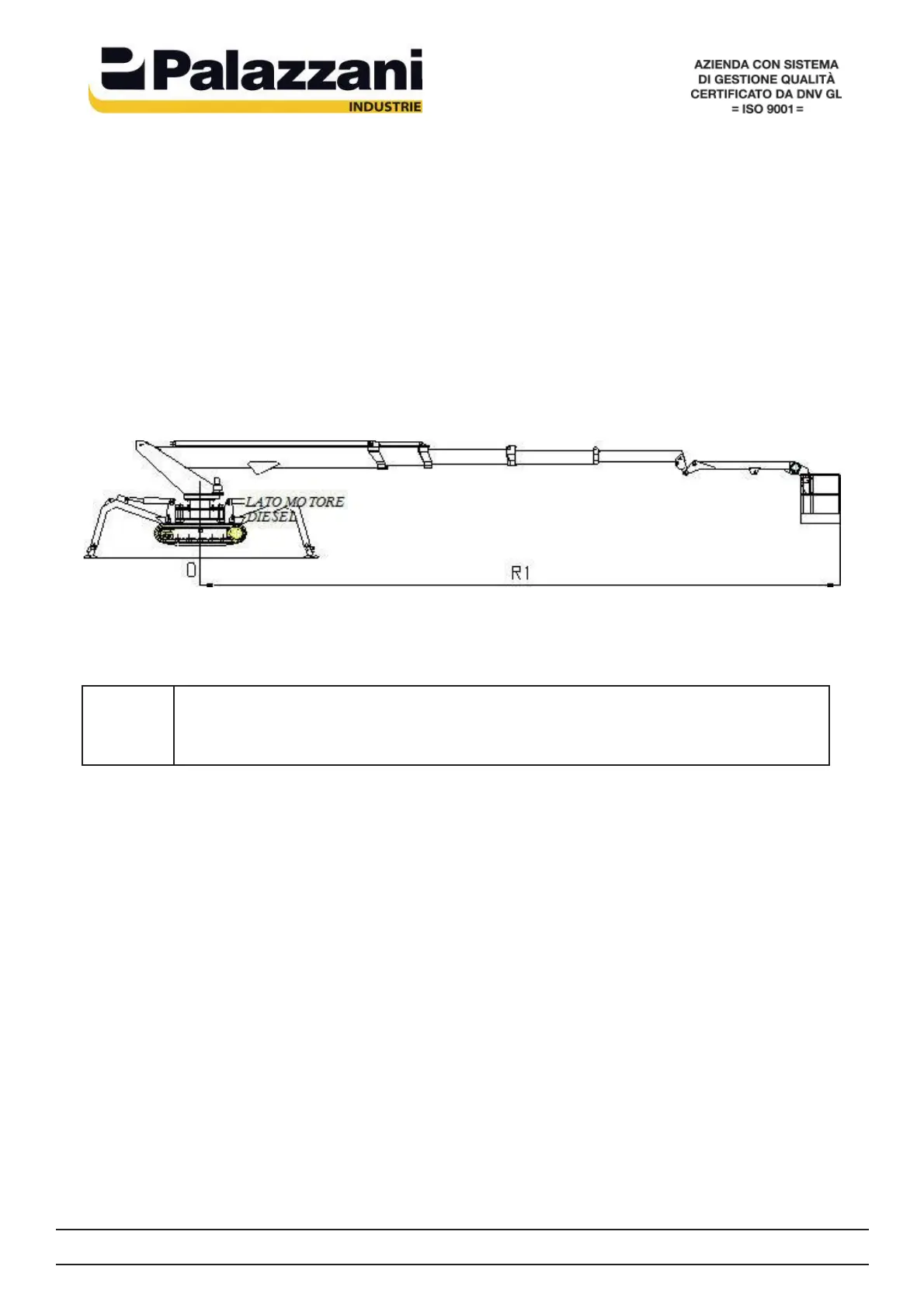

Fig. 5.6
!
WARNING!
If during the check, the outreach is more than the value of the chapter 1, do
not use the equipment and contact Palazzani Industrie.
