27

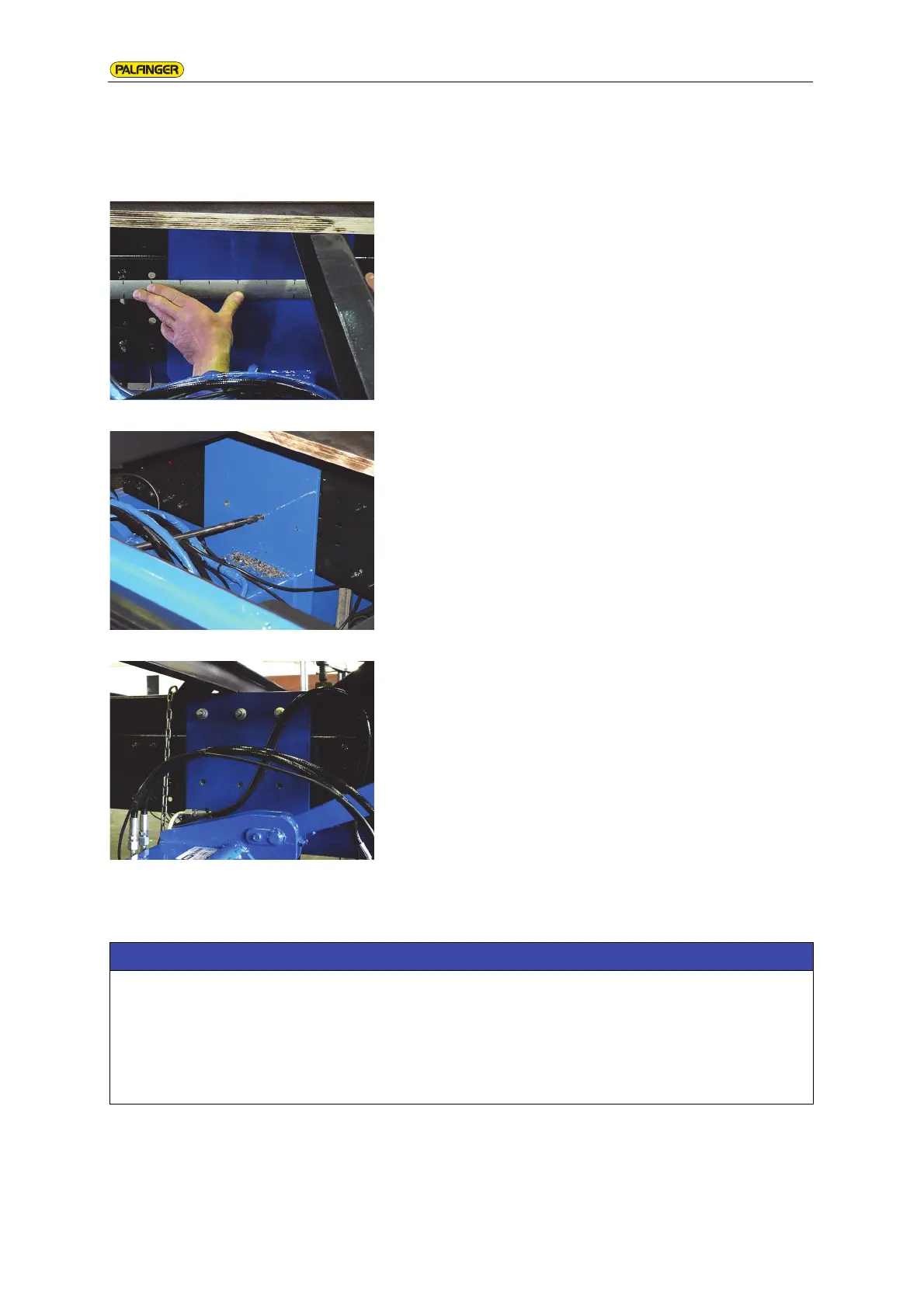

Installing lifting mechanism
To fix the lifting mechanism with welded consoles to the vehicle
chassis, proceed as follows:
In the event that you have to carry out welding work on the stand
tube, please strictly observe the following safety instructions:
Mark the following holes on the console plate.
Observe the general assembly diagram and
vehicle manufacturer's box body mounting
guidelines. Above all, note the number, position
and diameter of drill holes.
Drill the holes in the console plates. The hole
pattern of the bearer can be used for this. If there
is no hole pattern on the bearer, the bearer must
be drilled through.
Bolt the console plates to the vehicle chassis. In
the process, note the tightening torques in the
general assembly diagram and in the table on
page 28.
ATTENTION
Damage to the slide-in unit during welding work
If you do not pull out the slide-in unit before starting welding work on the stand tube,
it may be damaged.
Pull out the slide-in unit before starting welding work on the stand tube.
Protect the slide-in unit from possible damage caused by welding.
