29

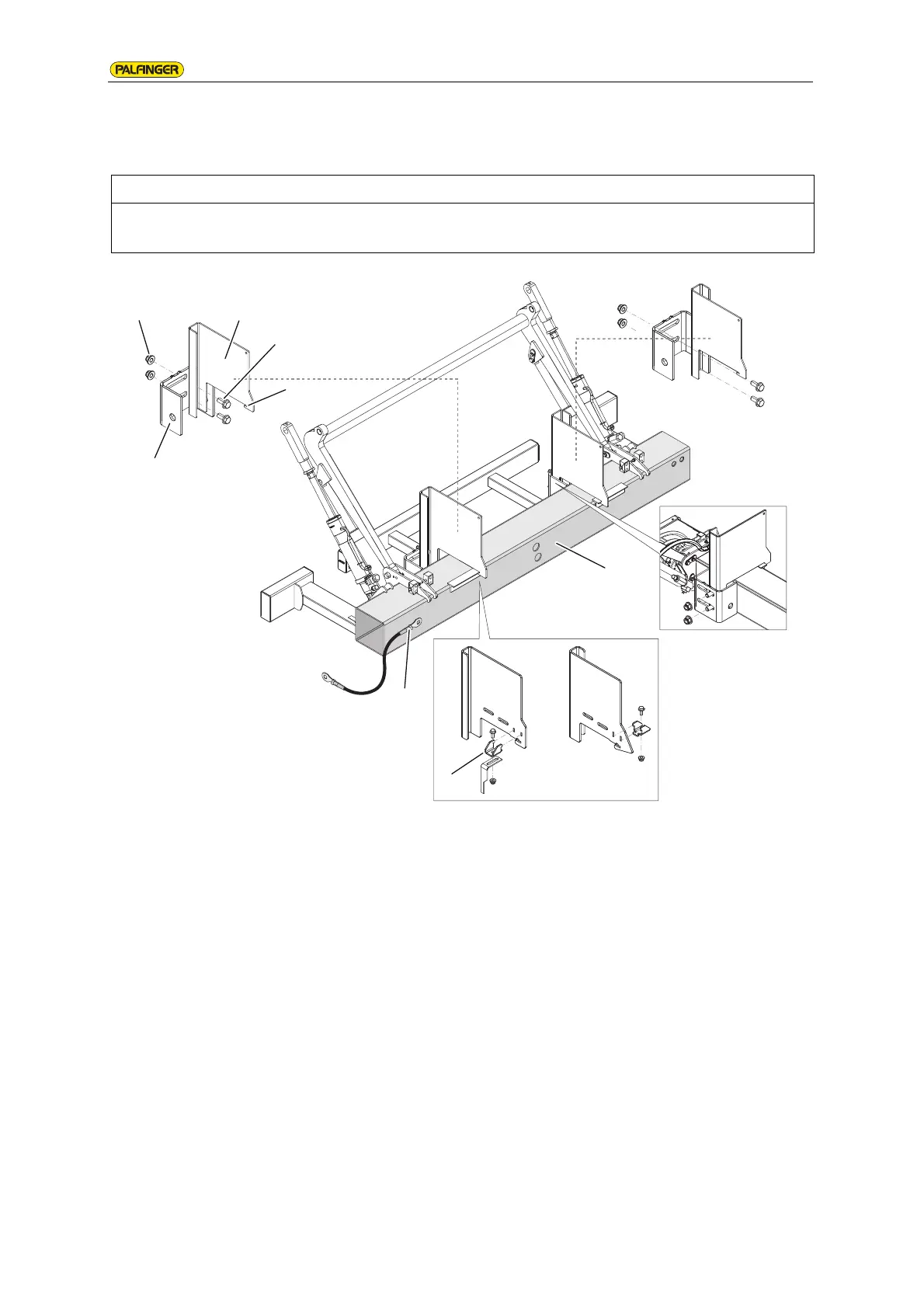

Installing lifting mechanism
To fix the lifting mechanism with bolted consoles to the vehicle
chassis, proceed as follows:
Optional: Connect the locking clamps (7) to the console
plate (2).
Thread the console plates (2) with the bolts (3) and the hook (4)
into the mountings on the stand tube (1).
Turn the hex. nuts (5) on the bolts (3) and thus fix the console
plate (2) and the U-section (6).
Align the two console plates corresponding to the frame width
and pretighten the hex. nuts.
NOTE
We recommend installation of the bolted consoles to the vehicle chassis before
positioning of the lifting mechanism under the vehicle.
1 stand tube
2 console plate
3 Bolts
4 hooks
5 hex. nuts
6 U-section
7 locking clamps (option)
8 ground cable (option)
