NOTE: How to set INPUT MIC LEVEL
MIC level can be set to -40dB, -50dB or -60dB as determined by MENU > AUDIO > INPUT
SETTINGS > INPUT1/2 MIC LEVEL. Choose the closest value that matches the sensitivity
of your microphone. Following is an example using one of Panasonic’s microphone i.e.
AG-MC200. With this microphone, “-50dB” would be the most suitable Input Mic Level setting
to use.

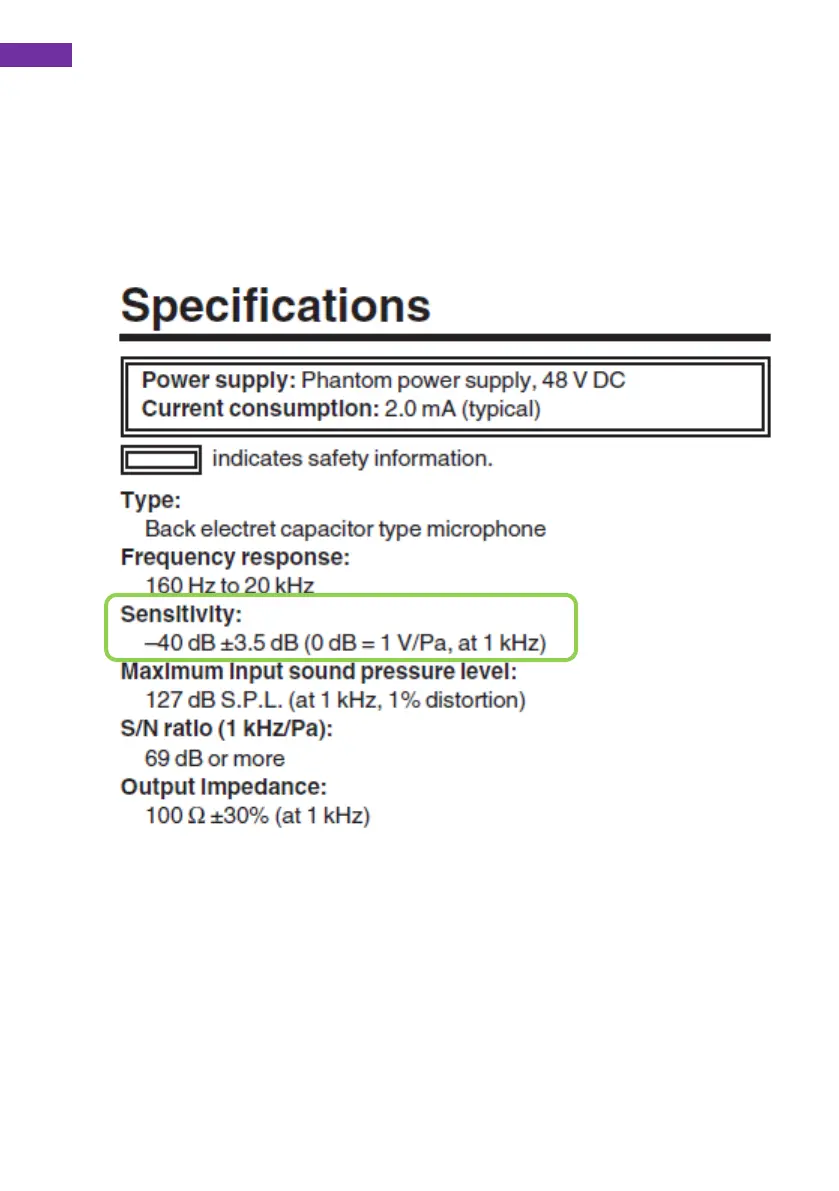

Example: Sensitivity specification of Panasonic AG-MC200 microphone
