Getting started
VQT3C84
15
≥Connect to terminals of the same colour.

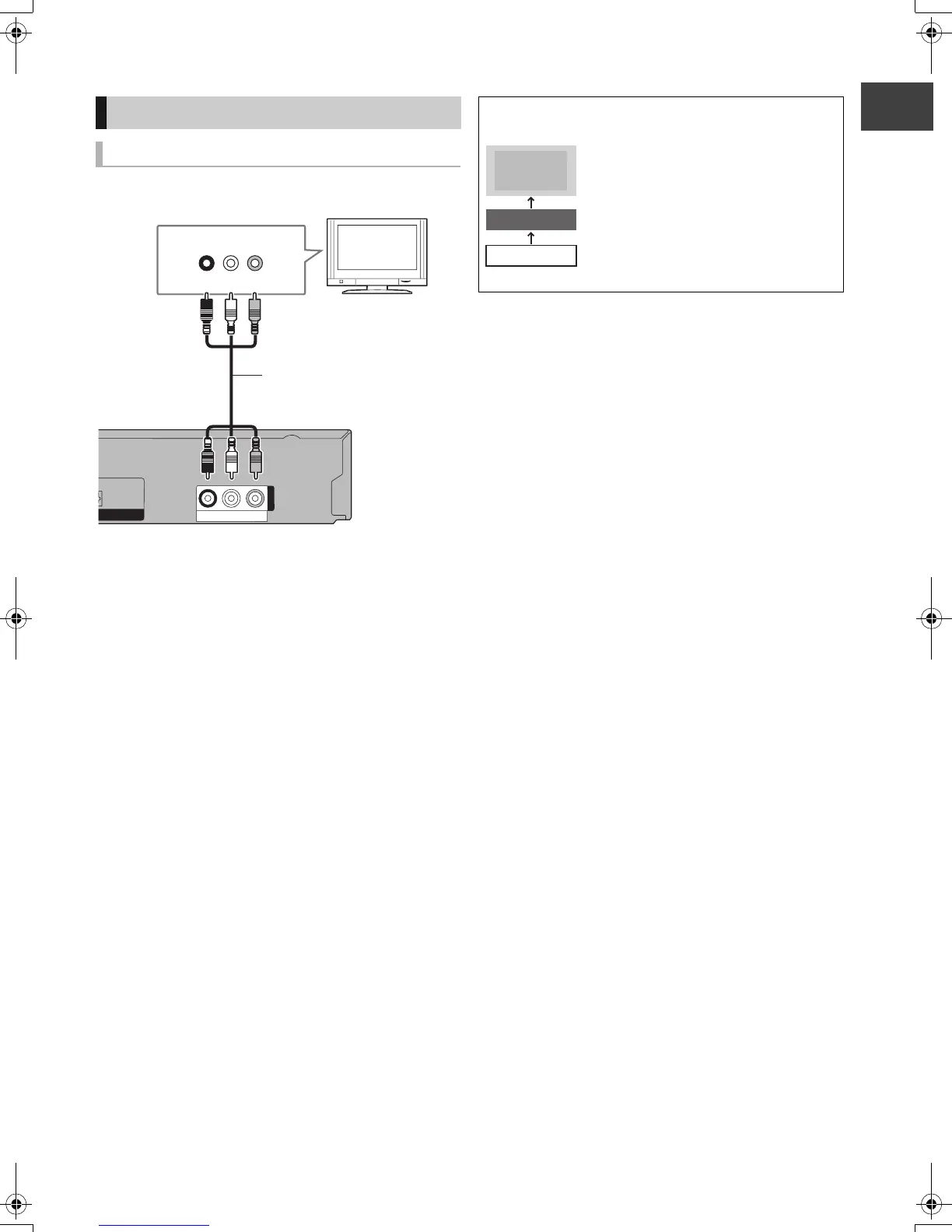

Other TV connections
AUDIO/VIDEO terminals
AV O U T
R-AUDIO-L
VIDEO
OPTICAL
L AUDIO OUT
/BITSTREAM)
AUDIO IN VIDEO IN
LR
Audio/Video cable
(supplied)
TV
This unit’s rear panel
Connect the unit directly to the TV
If you connect the unit through an AV
selector or VCR to the TV, video signal
will be affected by copy protection
systems and the picture may not be
shown correctly.
≥When connecting to a TV with a
built-in VCR
Connect to the input terminals on the
TV side if there are both TV and VCR
input terminals.
