Getting started
VQT3C84
12
Connection
When connected to an HDMI compatible unit, you can enjoy high quality, digital video and audio.
3D programmes can be played back when this unit is connected to a 3D compatible TV using an HDMI cable.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Other TV connections (> 15)

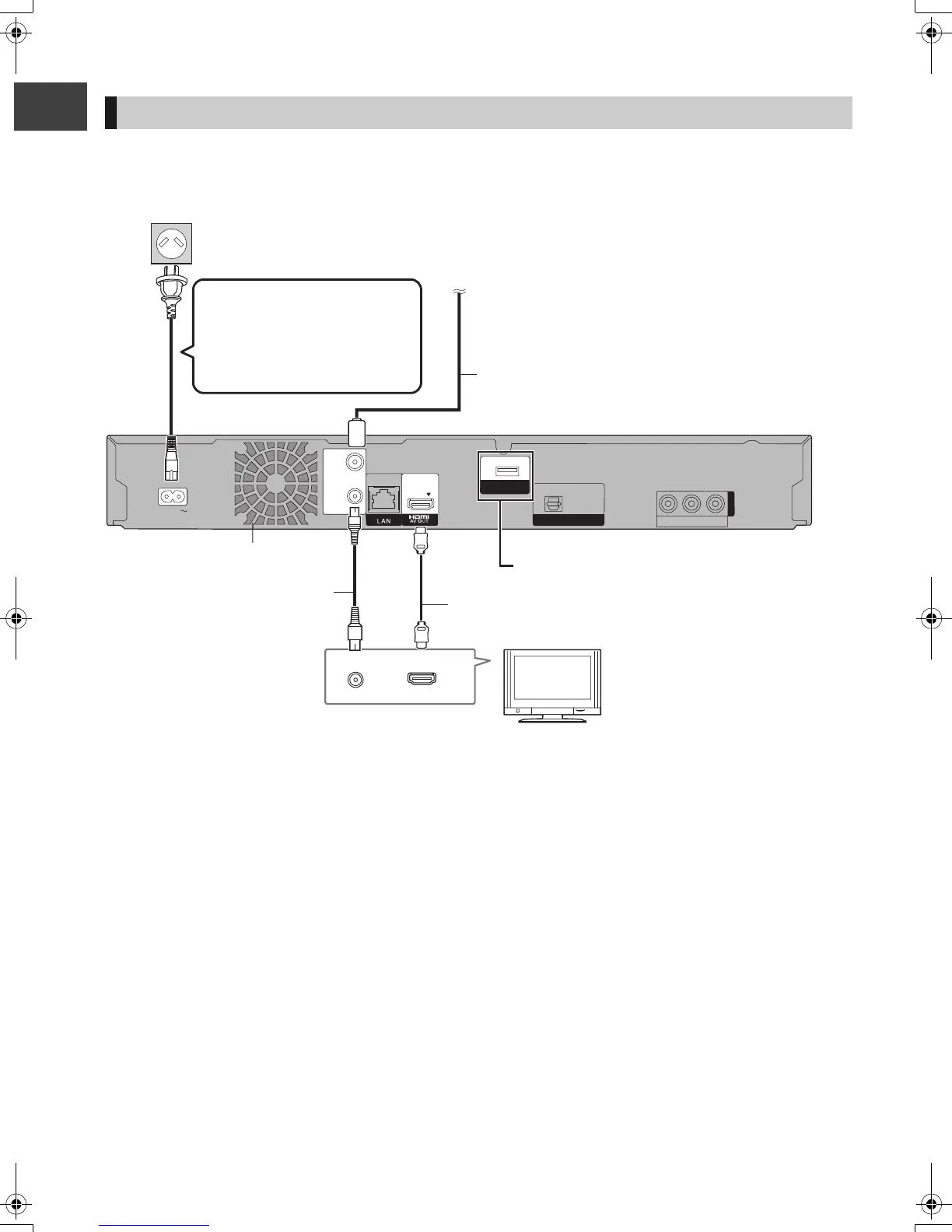

Basic connections
10BASE-T/
100BASE-TX
AC IN
AV O U T
R-AUDIO-L
VIDEO
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMMUNICATION
CAMERA
RF INRF IN
RF OUTRF OUT
HDMI
VHF/UHF
RF IN
To the aerial
TV
Aerial cable
RF coaxial cable
(supplied)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Cooling fan
AC mains lead
(supplied)
≥Connect only after all other
connections are complete.
HDMI cable
When using Communication Camera (> 67)
