Tape Type The aim of Tape position between the starting edge and the finishing
edge

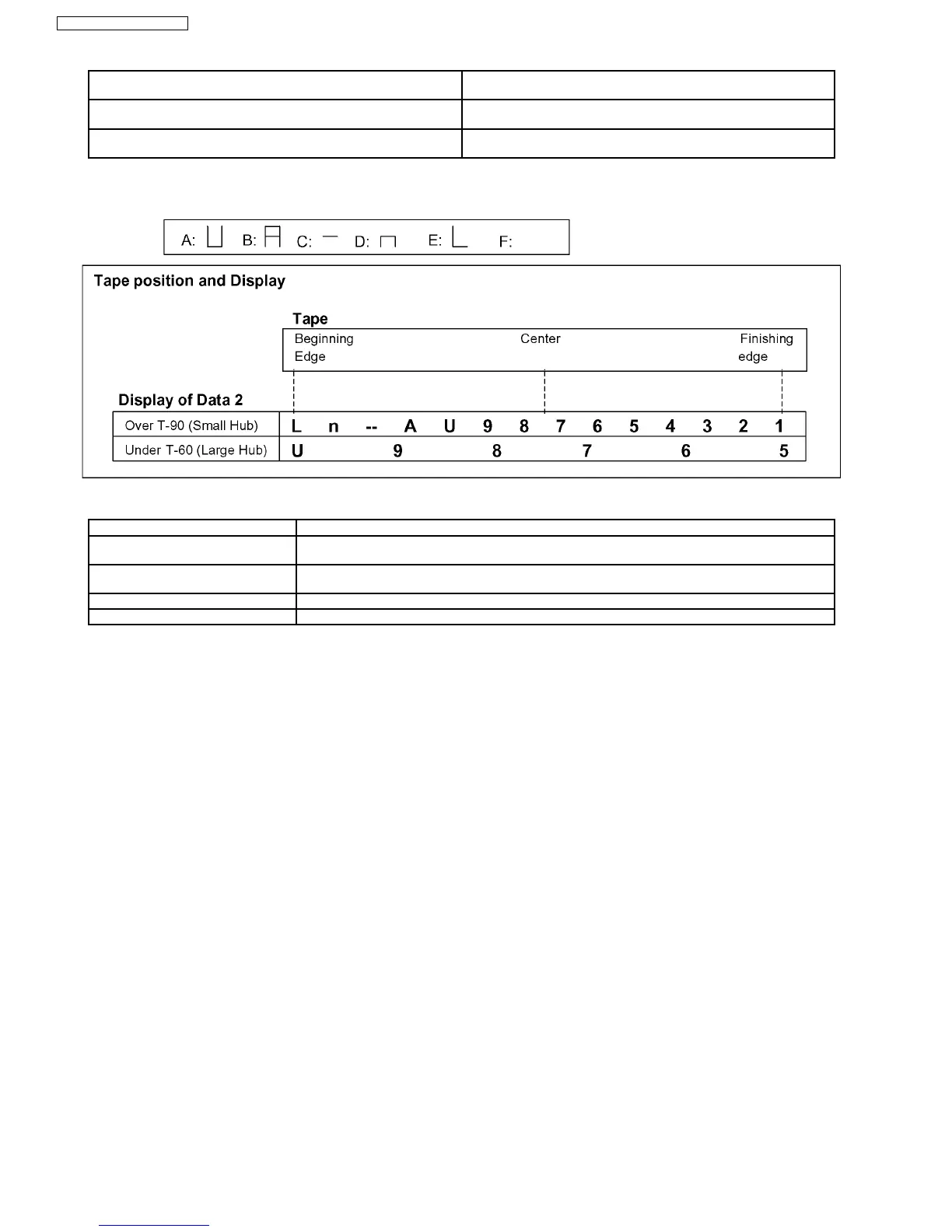

60 min. or less type (Large Hub) The Tape position is divided into 6 stages between the Tape beginning
edge: "A " and the Tape end edge: "5".
90 min. or over type (Small Hub) The Tape position is divided into 14 stages between the Tape
beginning edge: "E " and the Tape end edge: "1".
● "A" and "E" is hexadecimal. "A" =10 (Decimal), "E" =14 (Decimal).
● Hexadecimal indication from "A" to "E" are shown below.
Note 3: Supplementary Data 2 (Reason of Ejection)
Supplementary Data 2 Reason
1 S-reel pulse is less than 3 when the loading has been completed.
(Miss catching the tape)
2 Pulse Timer over during the short rewind at the DOWN position.
(Error of S-photo sensor system, S-reel system, Capstan system)
3 Mechanism lock from the DOWN position to the LOAD position during the loading.
4 Both ends have been detected at the LOAD position when the loading is started.
