80
DP-8032/8025
2008Ver. 1.2

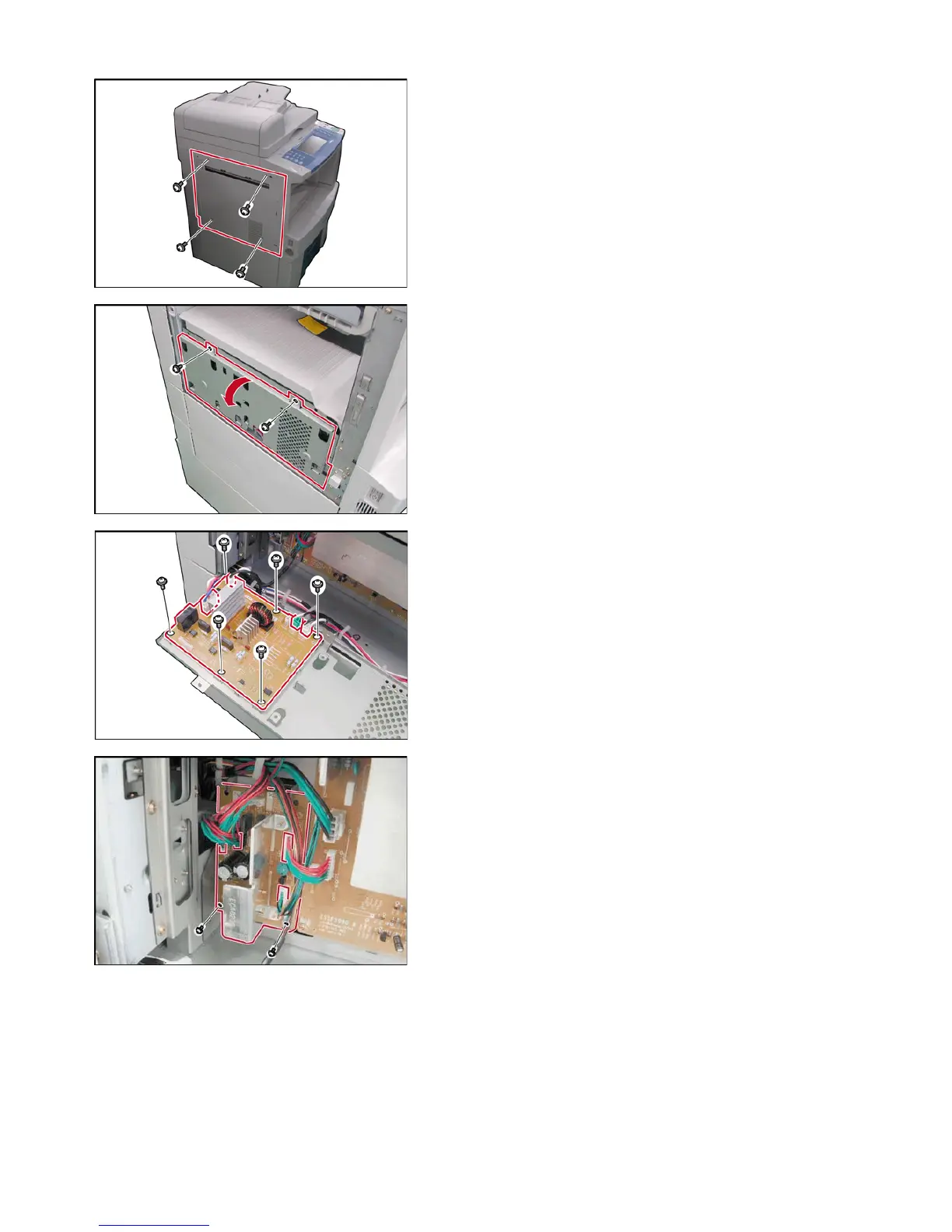

(7) Remove 2 Shoulder Silver Screws (L8: Upper) and
2 Silver Screws (S6: Lower).
(8) Remove 2 Screws (6P).
(9) Open the LVPS Cover (301).
(10) Remove 6 Screws (6P).
(11) Disconnect all the Harnesses on the ACD PC Board.
(12) Remove the ACD PC Board (1904).
(13) Remove 2 Screws (6P).
(14) Disconnect all the Harnesses on the DC PC Board.
(15) Remove the DC PC Board (1905).
