Panasonic FP-X0 L30R User Manual

2.3 Input/Output Specifications
2.3.1 Input Specifications
Item
Description
Insulation method
Optical coupler
Rated input voltage
24V DC
Operating voltage range
21.6 to 26.4V DC
Rated input current
X0 to X3
Approx. 3.5 mA
From X4
Approx. 4.3 mA
Input points per common
8 points/common (L14R), 16 points/common (L30R)
24 points/common (L40R), 16 points/common x 2 (L60R)
(Either the positive or negative of the input power supply
can be connected to common terminal.)
Min. on voltage/
Min. on current
X0 to X3
19.2 V DC/3 mA
From X4
19.2 V DC/3 mA
Max. off voltage/
Max. off current
X0 to X3
2.4V DC/1 mA
From X4
2.4V DC/1 mA
Input impedance
X0 to X3
Approx. 6.8 kΩ
From X4
Approx. 5.6 k
Ω
Response time
off→on
X0 to X3
Normal input: 1 ms or less
high-speed counter, pulse catch, interrupt nput settings:
25 µs or less (L14/L30), 10 µs or less (L40/L60)
Note)
From X4
1 ms or less
on→off
Same as above
Operating mode indicator
LED display
Note) This specification is applied when the rated input voltage is 24 V DC and the temperature is 25 °C.

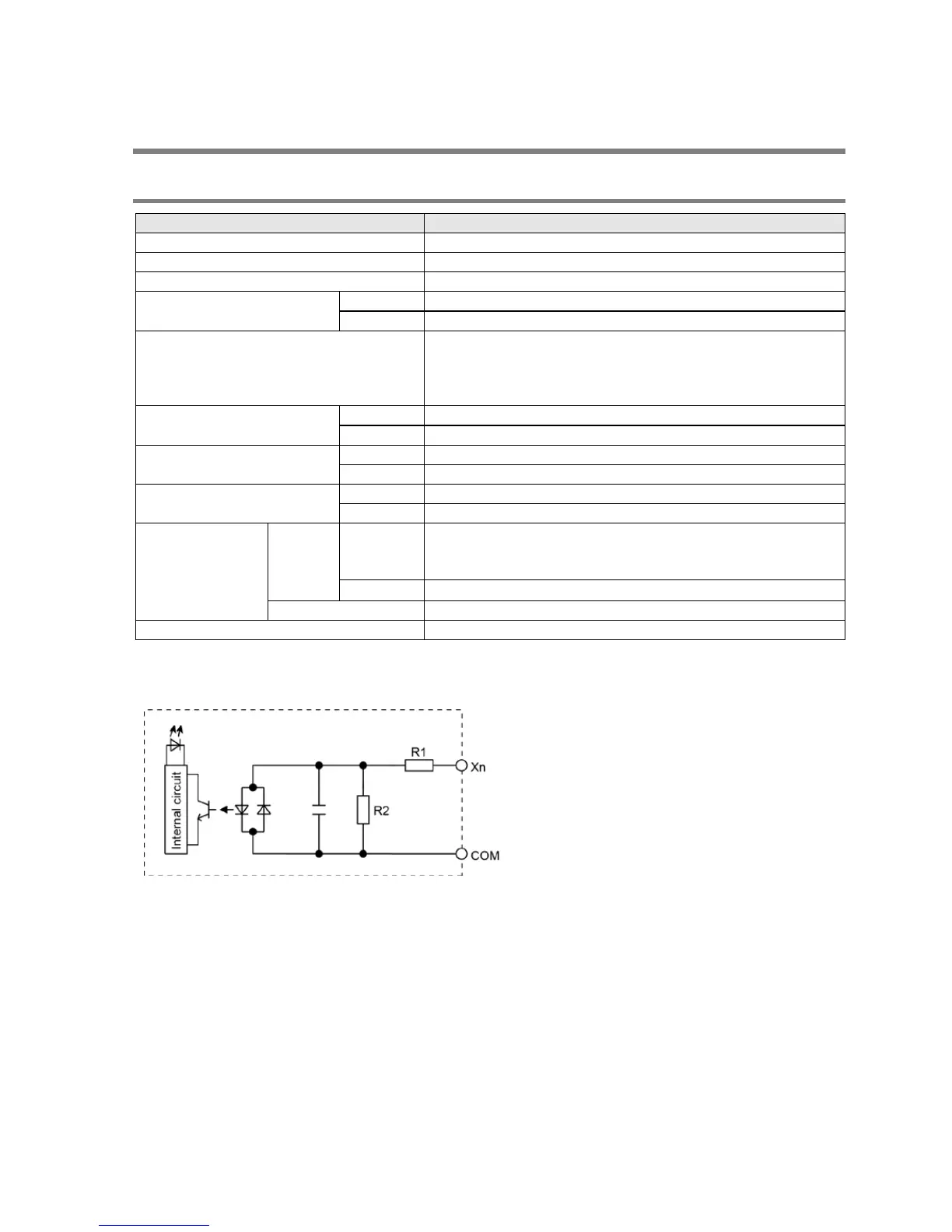

Circuit diagram
For X0 to X3: R1=6.8 kΩ R2=820 Ω
From X4: R1=5.6 k
Ω
R2=1 k
Ω
