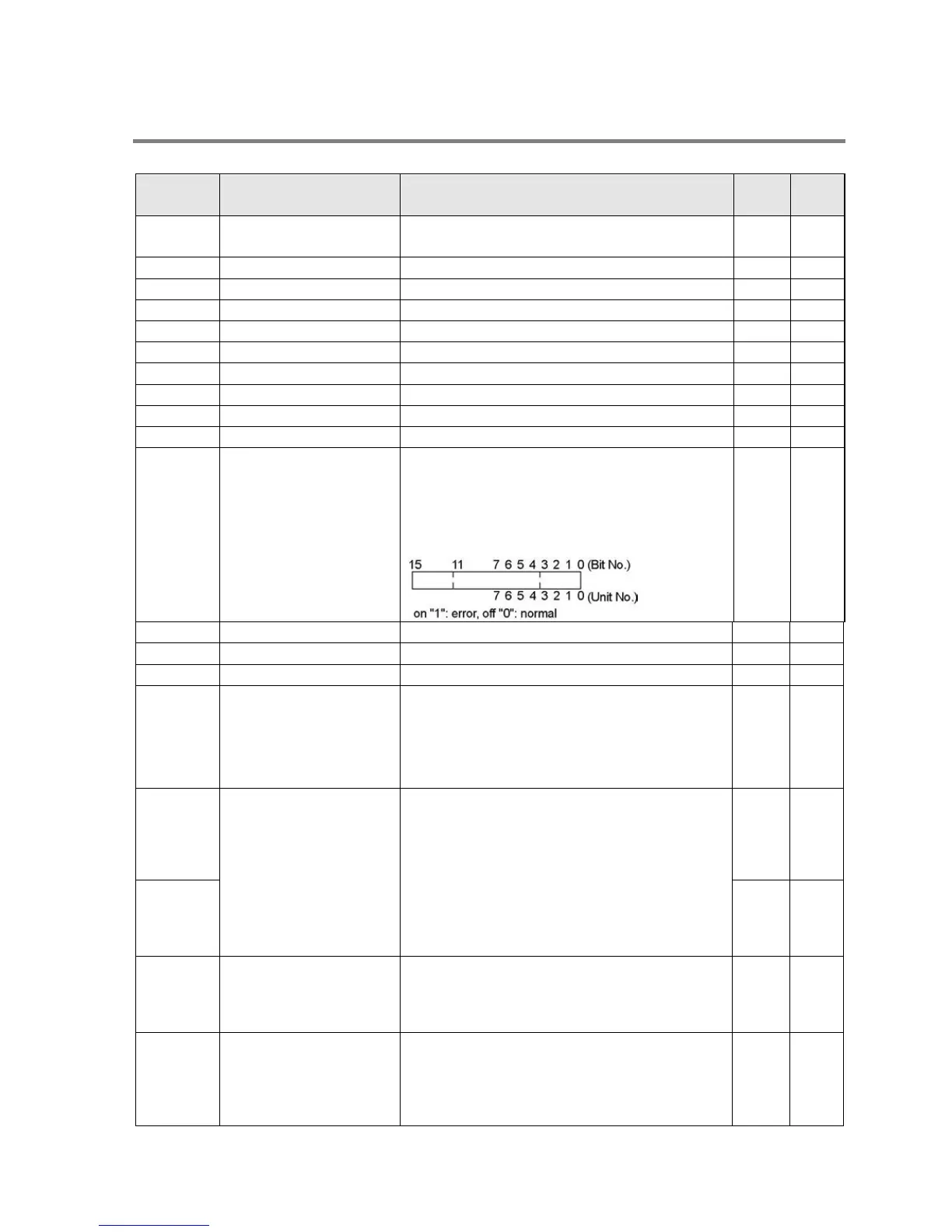

14.1.4 Table of Special Data Registers for FP-X0 L14 / L30 / L40 / L60
(A: Available, N/A: Not available)
Address
Name Description
Read
-ing
Writ-
ing
DT90000
Self-diagnostic error
code
The self-diagnostic error code is stored here
when a self-diagnostic error occurs.
A N/A
DT90001
Not used
-
N/A
N/A
DT90002
Not used
-
N/A
N/A
DT90003
Not used
- N/A N/A
DT90004
Not used
-
N/A
N/A
DT90005
Not used
- N/A N/A
DT90006
Not used
-
N/A
N/A
DT90007
Not used
- N/A N/A
DT90008
Not used
-
N/A
N/A
DT90009
Not used
- N/A N/A
DT90010
Extension I/O verify
error unit
When the state of installation of FP-X0
expansion I/O unit has changed since the
power was turned on, the bit corresponding to
the unit No. will turn on. Monitor using binary
display.
A N/A
DT90011
Not used
-
N/A
N/A
DT90012
Not used
-
N/A
N/A
DT90013
Not used
-
N/A
N/A
DT90014
Operation auxiliary
register for data shift
instruction
One shift-out hexadecimal digit is stored in bit
positions 0 to 3 when the data shift instruction,
F105 (BSR) or F106 (BSL) is executed. The
value can be read and written by executing F0
(MV) instruction.
A A
DT90015
Operation auxiliary
register for division
instruction
The divided remainder (16-bit) is stored in
DT90015 when the division instruction F32(%)
or F52(B%) instruction is executed. The
divided remainder (32-bit) is stored in
DT90015 and DT90016 when the division
instruction F33(D%) or F53(DB%) is executed.
The value can be read and written by
executing F0(MV) instruction.
A A
DT90016 A A
DT90017
Operation error
address (hold type)
After commencing operation, the address
where the first operation error occurred is
stored. Monitor the address using decimal
display.
A N/A
DT90018
Operation error
address (non-hold
type)
The address where an operation error
occurred is stored. Each time an error occurs,
the new address overwrites the previous
address. Monitor the address using decimal
display.
A N/A
