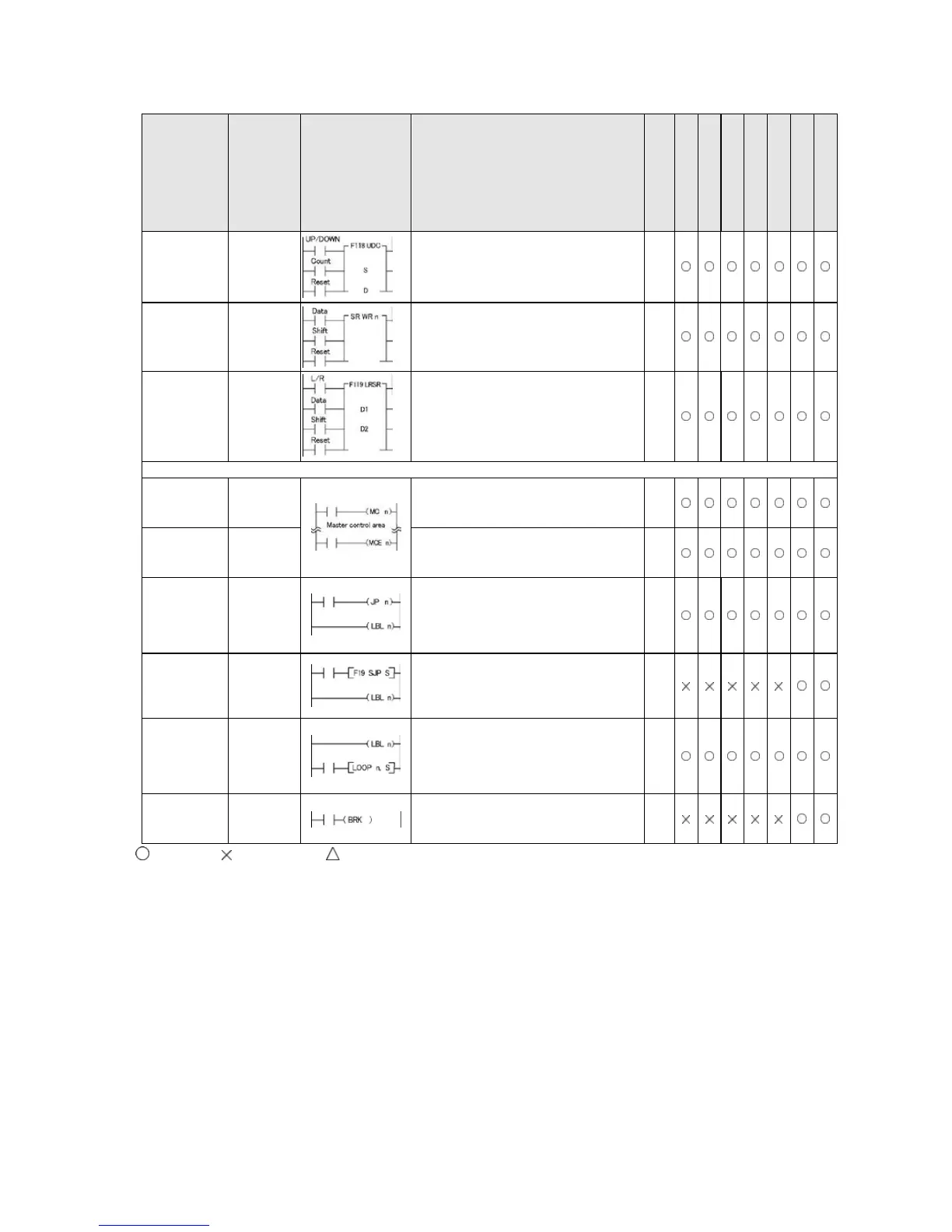

Name Boolean Symbol Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP-X0
FP2
FP2SH/FP10SH
UP/DOWN
counter
F118
(UDC)
Increments or decrements from the
preset value “S” based on up/down
input.
5
Shift register
SR
Shifts one bit of 16-bit [word internal
relay (WR)] data to the left.
1
(2)
*1
Left/right
shift register
F119
(LRSR)
Shifts one bit of 16-bit data range
specified by “D1” and “D2” to the left or
to the right.
5
Control instructions
Master
control relay
MC Starts the master control program.
2
Master
control relay
end
MCE
Ends the master control program.
2
Jump Label
JP
LBL
The program jumps to the label
instruction and continues from there.
2
(3)
*2
1
Auxiliary
jump Label
F19
(SJP)
LBL
The program jumps to the label
instruction specified by “S” and
continues from there.
3
1
Loop Label LOOP
LBL
The program jumps to the label
instruction and continues from there (the
number of jumps is set in “S”).
4
(5)
*3
1
Break BRK Stops program execution when the
predetermined trigger turns on in the
TEST/RUN mode only.
1
: Available, : Not available, : Not available partially
*1) In the FP2/FP2SH/FP10SH, when internal relay WR240 or higher is used, the number of steps is the number in
parentheses. Also, in the FP2/FP2SH/FP10SH, when the specified internal relay number (word address) has an index
modifier, the number of steps is the number in parentheses.
*2) In the FP2/FP2SH/FP10SH, when the number “n” in a jump instruction has an index modifier, the number of steps
isthenumber in parentheses.
*3) In the FP2/FP2SH/FP10SH, when the number “n” in a loop instruction has an index modifier, the number of steps is the
number in parentheses.
