RELEASE]
bu_on j'

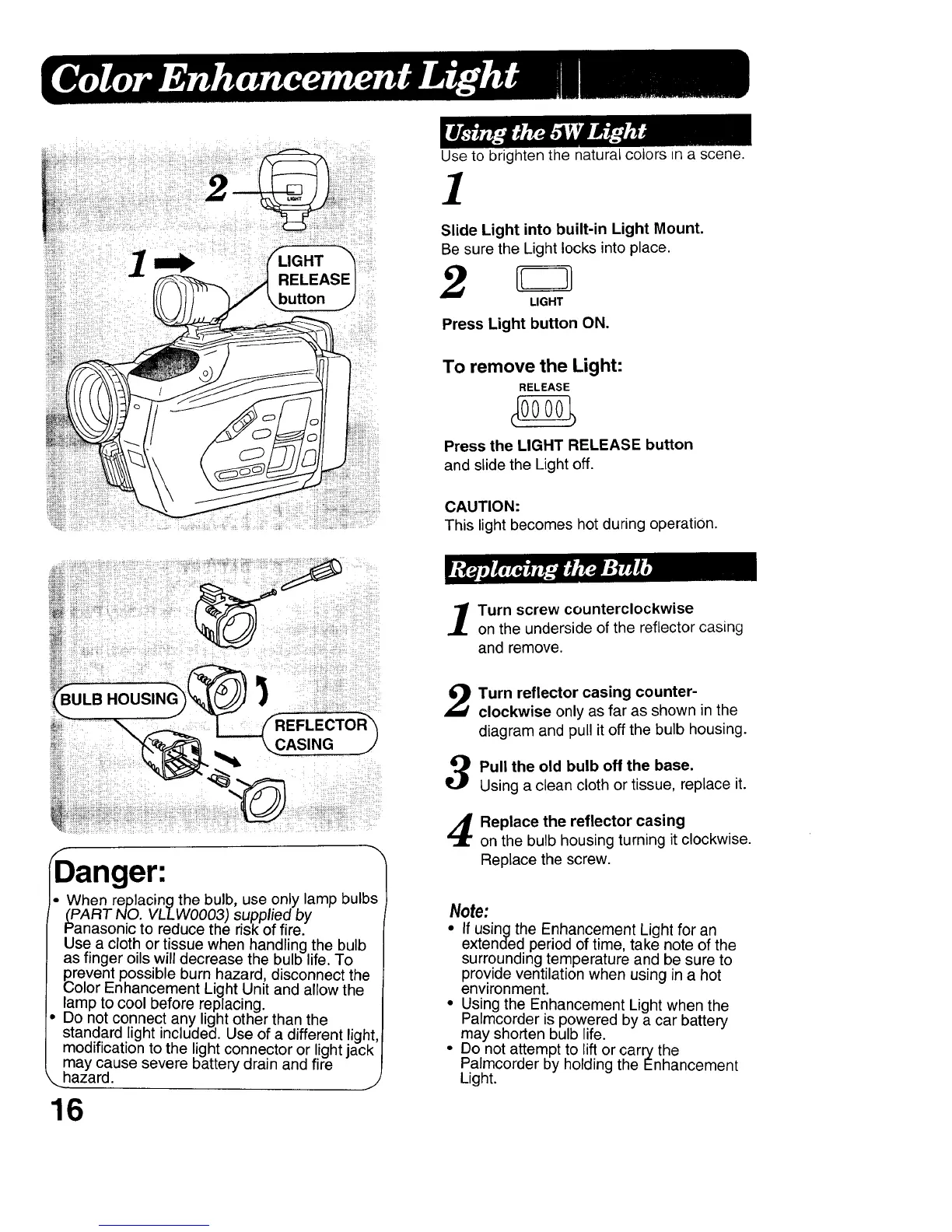

Use to brighten the natural colors in a scene.
1
Slide Light into built-in Light Mount.
Be sure the Lightlocks into place.
2
LIGHT
Press Light button ON.
To remove the Light:
RELEASE
Press the LIGHT RELEASE button
and slide the Light off.
CAUTION:
This light becomes hot during operation.
...........i:¸
)anger:
• When replacing the bulb, use only lamp bulbs
__PARTNO. VLLWO003) supplied by
Panasonic to reduce the risk of fire.
Use a cloth or tissue when handling the bulb
as finger oils will decrease the bulb life. To
prevent possible burn hazard, disconnect the
Color Enhancement Light Unit and allow the
lamp to cool before replacing.
Do not connect any light other than the
standard light included. Use of a different light,
modification to the light connector or light jack
may cause severe battery drain and fire
_hazard. 1
16
Turn screw counterclockwise
on the underside of the reflector casing
and remove.
Turn reflector casing counter-
clockwise only as far as shown in the
diagram and pull it off the bulb housing.
Pull the old bulb off the base.
Using a clean cloth or tissue, replace it.
Replace the reflector casing
on the bulb housing turning it clockwise.
Replace the screw.
Note:
• If using the Enhancement Light for an
extended period of time, take note of the
surrounding temperature and be sure to
provide ventilation when using in a hot
environment.
• Using the Enhancement Light when the
Palmcorder is powered by a car battery
may shorten bulb life.
• Do not attempt to lift or carry the
Palmcorder by holding the Enhancement
Light.
To Next Page
