Panasonic SA-PM4E - Disassembly of CD Mechanism

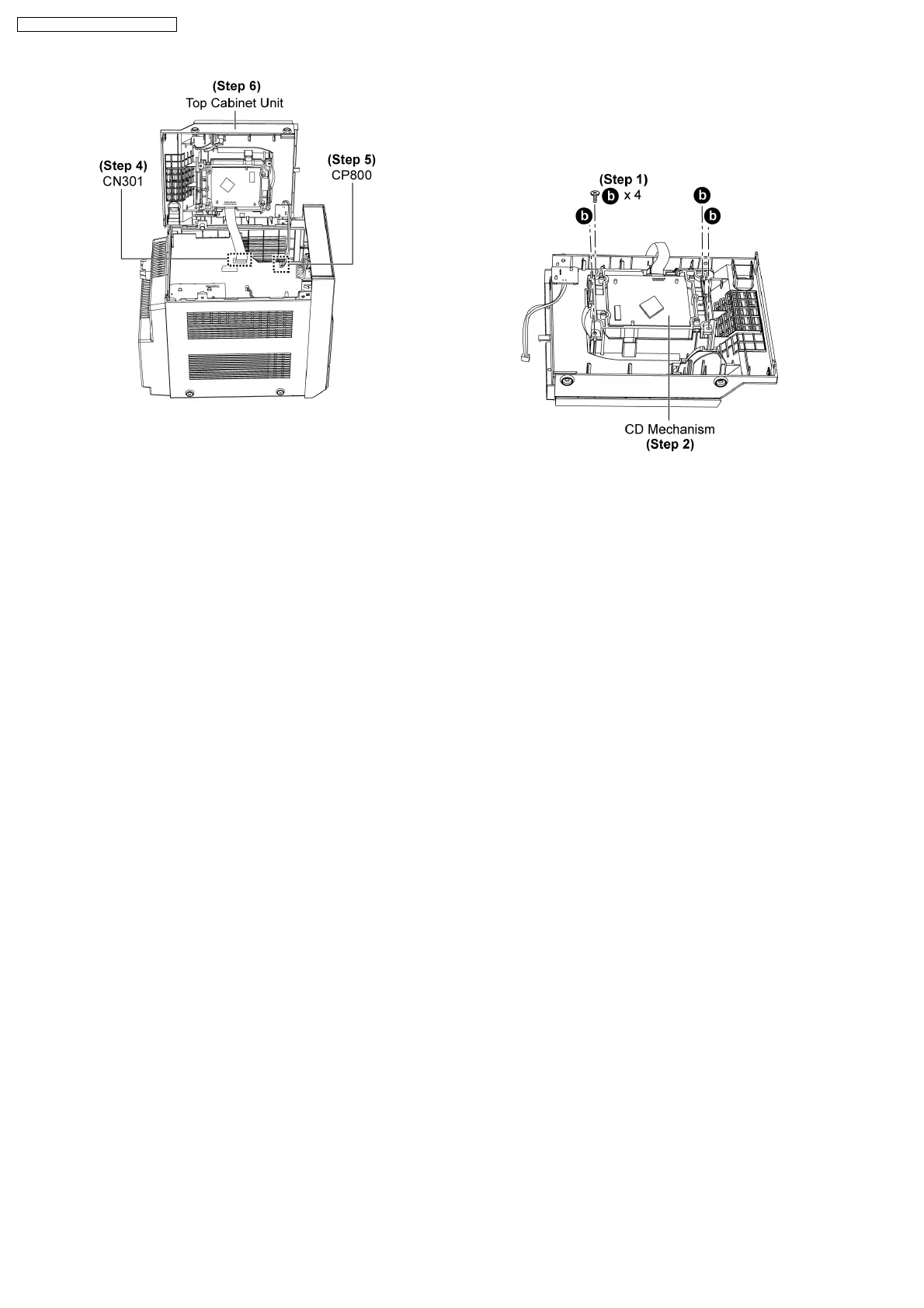

Step 4: Disconnect FFC cable (CN301).
Step 5: Detach connector (CP800).
Step 6: Remove top cabinet unit.
9.6. Disassembly of CD
Mechanism
· Follow the (Step 1) - (Step 6) of Item 9.5.
Step 1: Remove 4 screws.
Step 2: Remove CD mechanism. (Refer to section
9.16 for disassembly of CD mechanism unit).
20
SA-PM4E / SA-PM4EB / SA-PM4EG
