Panasonic SA-PM4E - Replacement of CD Damper Gear; Replacement of Traverse and CD Servo P.C.B

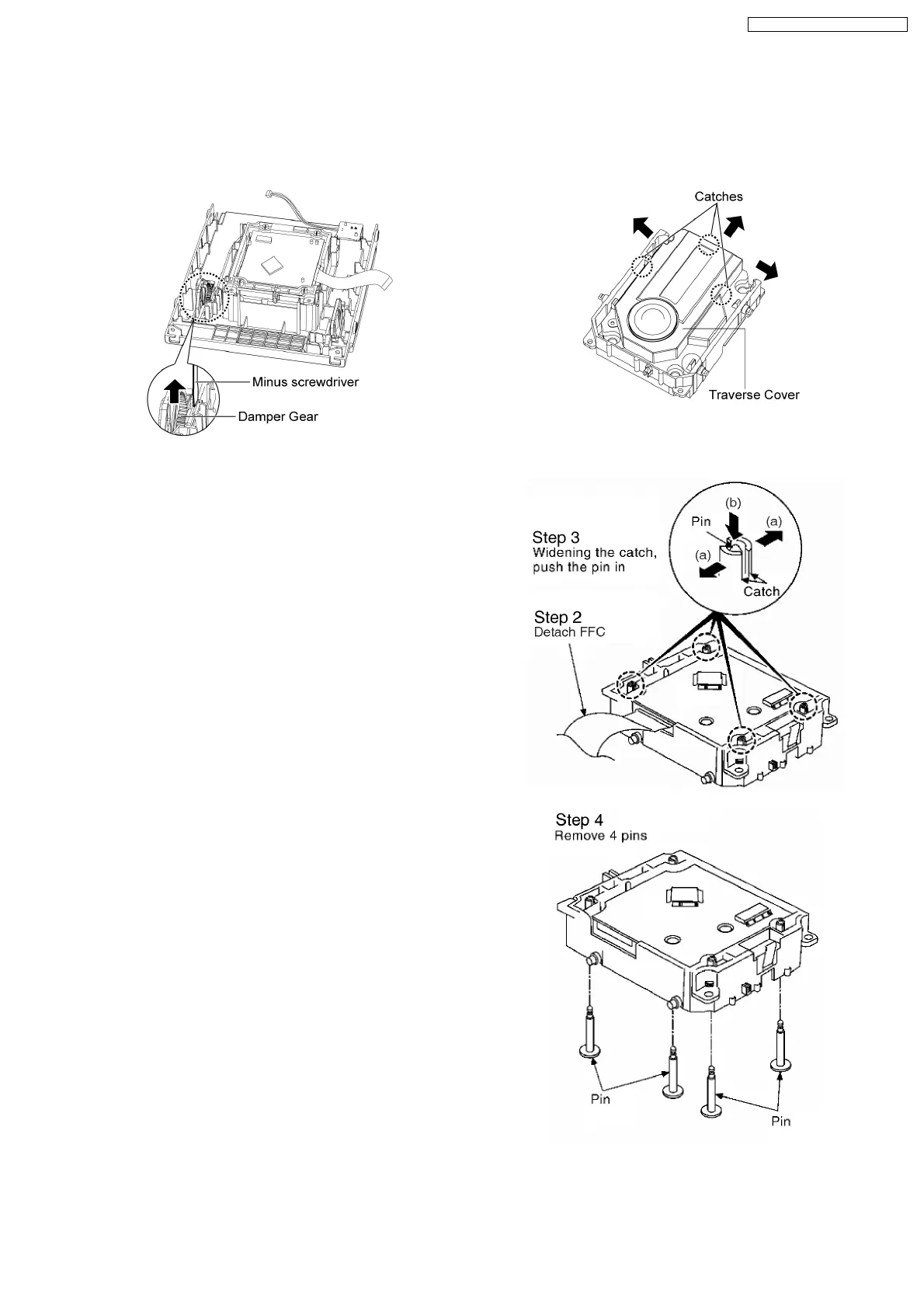

9.15. Replacement of CD Damper
Gear
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Follow the (Step 2) of Item 9.14.
Step 1: Use a minus screwdriver slot into the gap
and push out the damper gear as arrow shown. (Be
careful of the catches)
9.16. Replacement of Traverse and
CD Servo P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 2) of Item 9.6.
Step 1: Release 3 catches and remove the traverse
cover.
27
SA-PM4E / SA-PM4EB / SA-PM4EG
