Panasonic SA-PM4E - Disassembly of Rear Panel

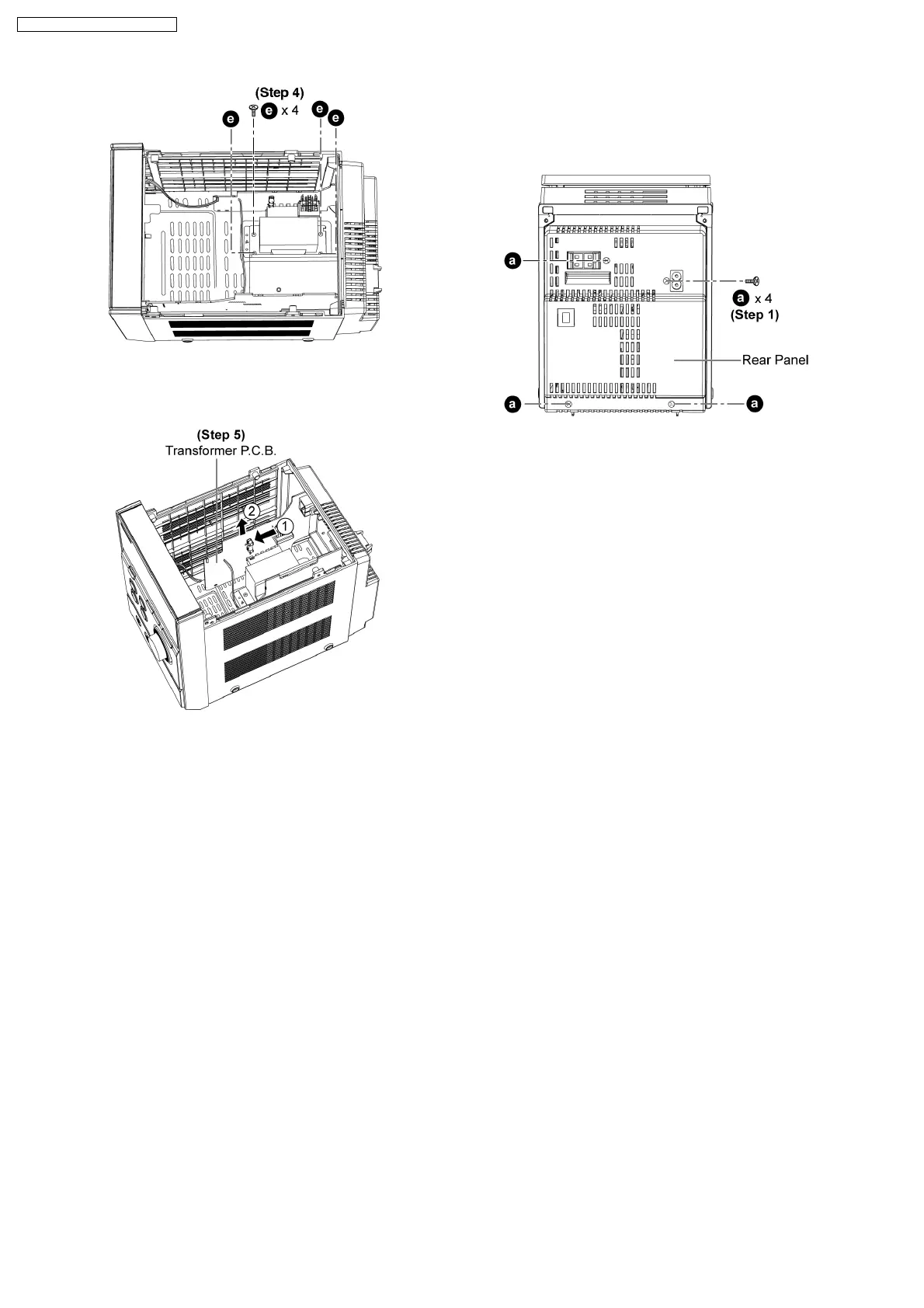

Step 4: Remove 4 screws.
Step 5: Remove the Transformer P.C.B. as shown
in arrow sequence.
9.12. Disassembly of Rear Panel
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
Step 1: Remove 4 screws and remove the rear
panel.
24
SA-PM4E / SA-PM4EB / SA-PM4EG
