Panasonic SA-PM4E - Disassembly of Panel P.C.B

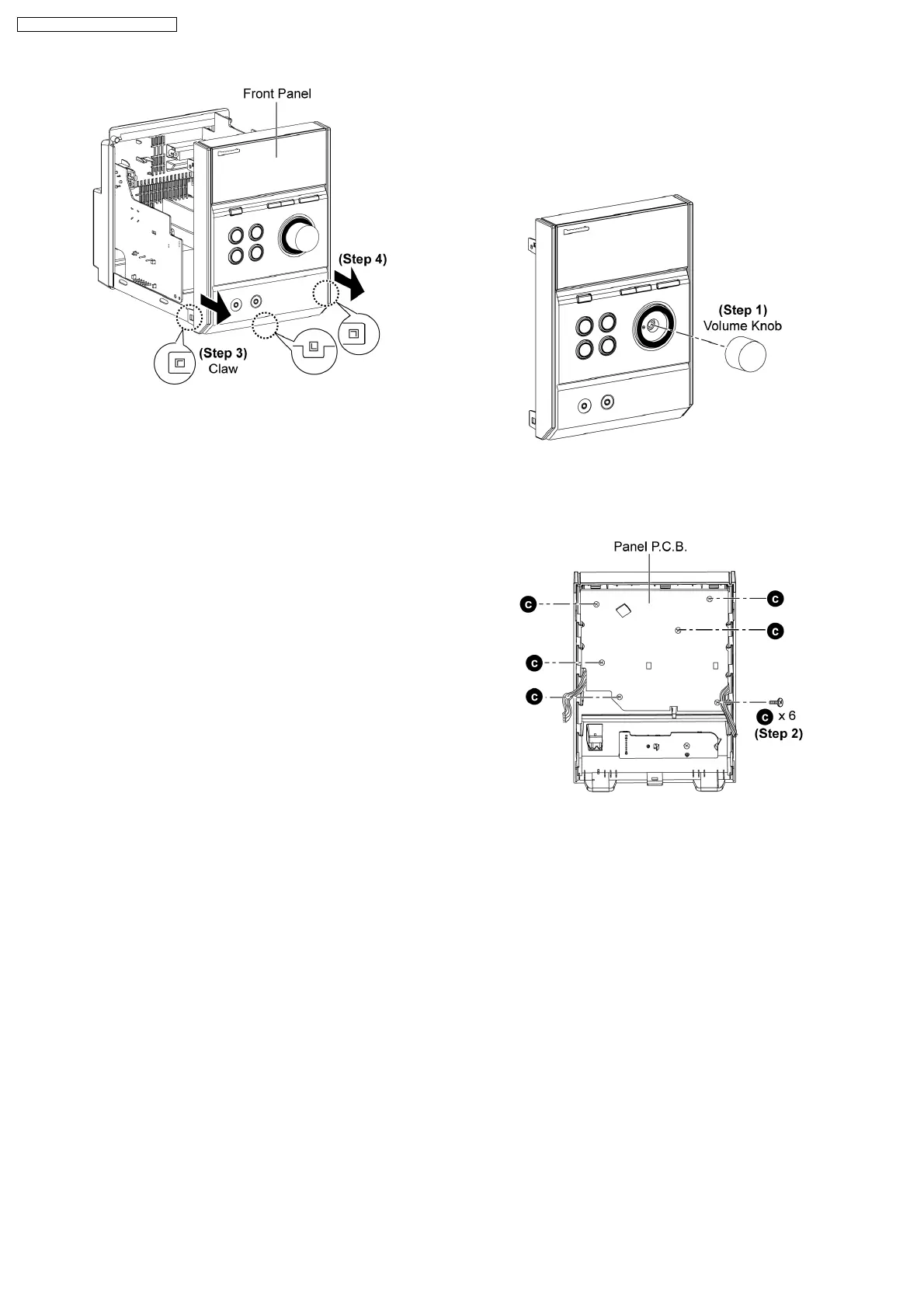

Step 3: Release 3 claws.
Step 4: Remove the front panel as arrow shown.
9.9. Disassembly of Panel P.C.B.
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 4) of Item 9.8.
Step 1: Remove the volume knob.
Step 2: Remove 6 screws and remove Panel
P.C.B..
22
SA-PM4E / SA-PM4EB / SA-PM4EG
