Panasonic SA-PM4E - Disassembly of HP; Music Port; Disassembly of Transformer

9.10. Disassembly of HP / Music
Port P.C.B.
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 4) of Item 9.8.

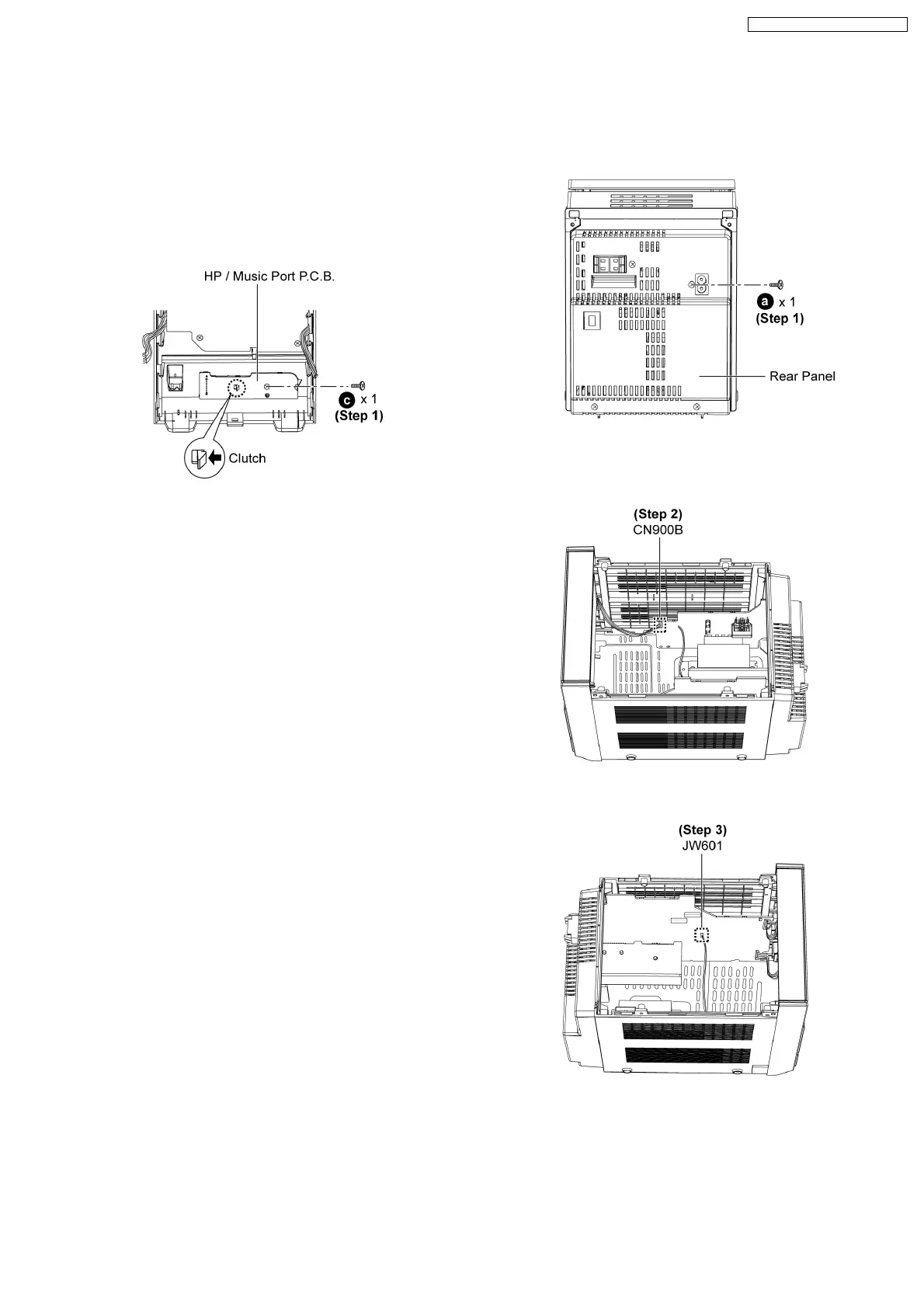

Step 1: Remove 1 screw.
Step 2: Release 1 clutch and remove the HP /
Music Port P.C.B..
9.11. Disassembly of Transformer
P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.5.
Step 1: Remove 1 screw.
Step 2: Detach connector (CN900B).
Step 3: Detach wire (JW601).
23
SA-PM4E / SA-PM4EB / SA-PM4EG
