Panasonic SA-PM4E - Disassembly of CD Eject; Disassembly of Front Panel

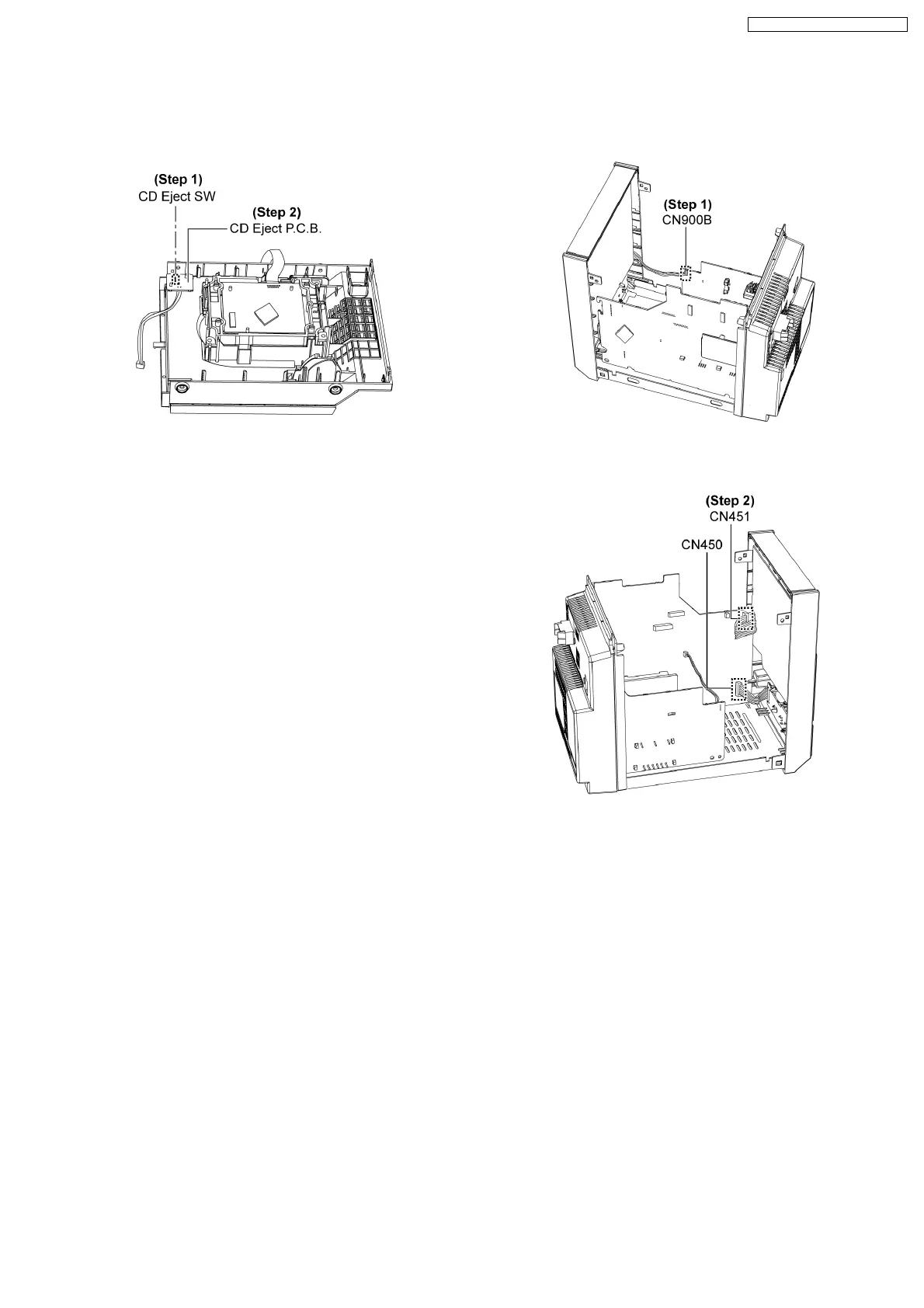

9.7. Disassembly of CD Eject
P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.5.
Step 1: Unsolder the CD Eject SW.
Step 2: Remove CD Eject P.C.B.
9.8. Disassembly of Front Panel
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
Step 1: Detach wire (CN900B).
Step 2: Disconnect FFC cable (CN450 and CN451).
21
SA-PM4E / SA-PM4EB / SA-PM4EG
