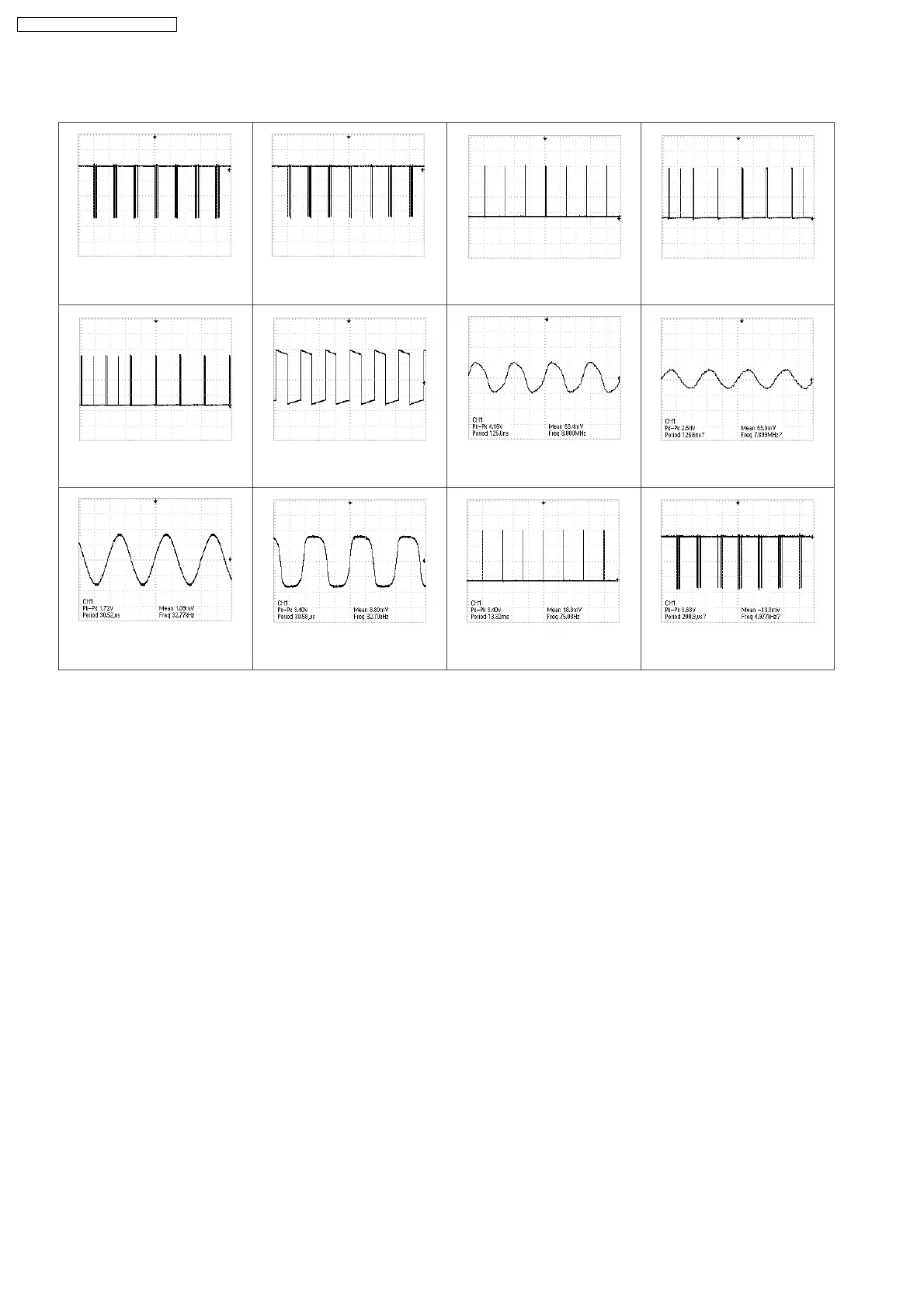

11.2. Waveform Chart
CN301 PIN 10
CD PLAY
3.56Vp-p (10msec.div)
CN301 PIN 11
CD PLAY
3.52Vp-p (10msec.div)
CN451 PIN 1
CD PLAY
3.44Vp-p (50msec.div)
CN451 PIN 2
CD PLAY
3.36Vp-p (50msec.div)
CN451 PIN 3
CD PLAY
3.60Vp-p (50msec.div)
IC800 PIN 12
CD PLAY
4.16Vp-p (50nsec.div)
IC800 PIN 13
CD PLAY
2.64Vp-p (50nsec.div)
IC800 PIN 15
CD PLAY
1.72Vp-p (10usec.div)
IC800 PIN 16
CD PLAY
3.40Vp-p (10usec.div)
IC800 PIN 29
CD PLAY
3.40Vp-p (10msec.div)
IC800 PIN 33
CD PLAY
3.68Vp-p (10msec.div)
CN301 PIN 13
CD PLAY
3.44Vp-p (10msec.div)
