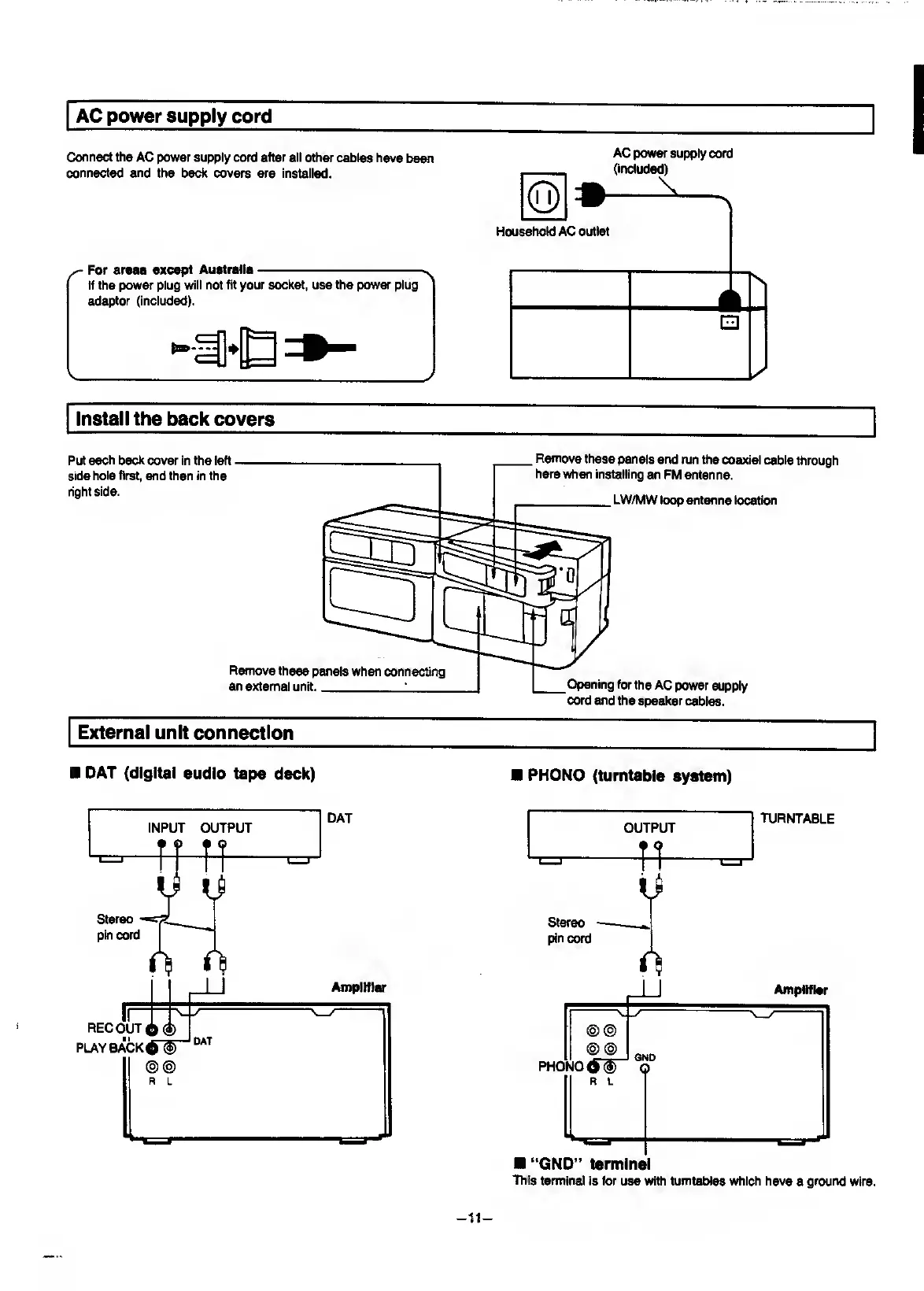

Panasonic SC-CH7 - AC Power and External Unit Connections

AC power supply cord
Connect the AC power supply cord after all other cables have been
connected and the back covers are installed.
AC power supply cord
(induded)
Household AC outlet
For areas exc^ Australia-
If the power plug will not fit your socket, use the power plug
adaptor (included).
— i
□
■ DAT (digital audio tape deck)
■ PHONO (turntable syatem)
■ “GND” terminal
This temninal is for use with turntables which have a ground wire.
- 11 -
