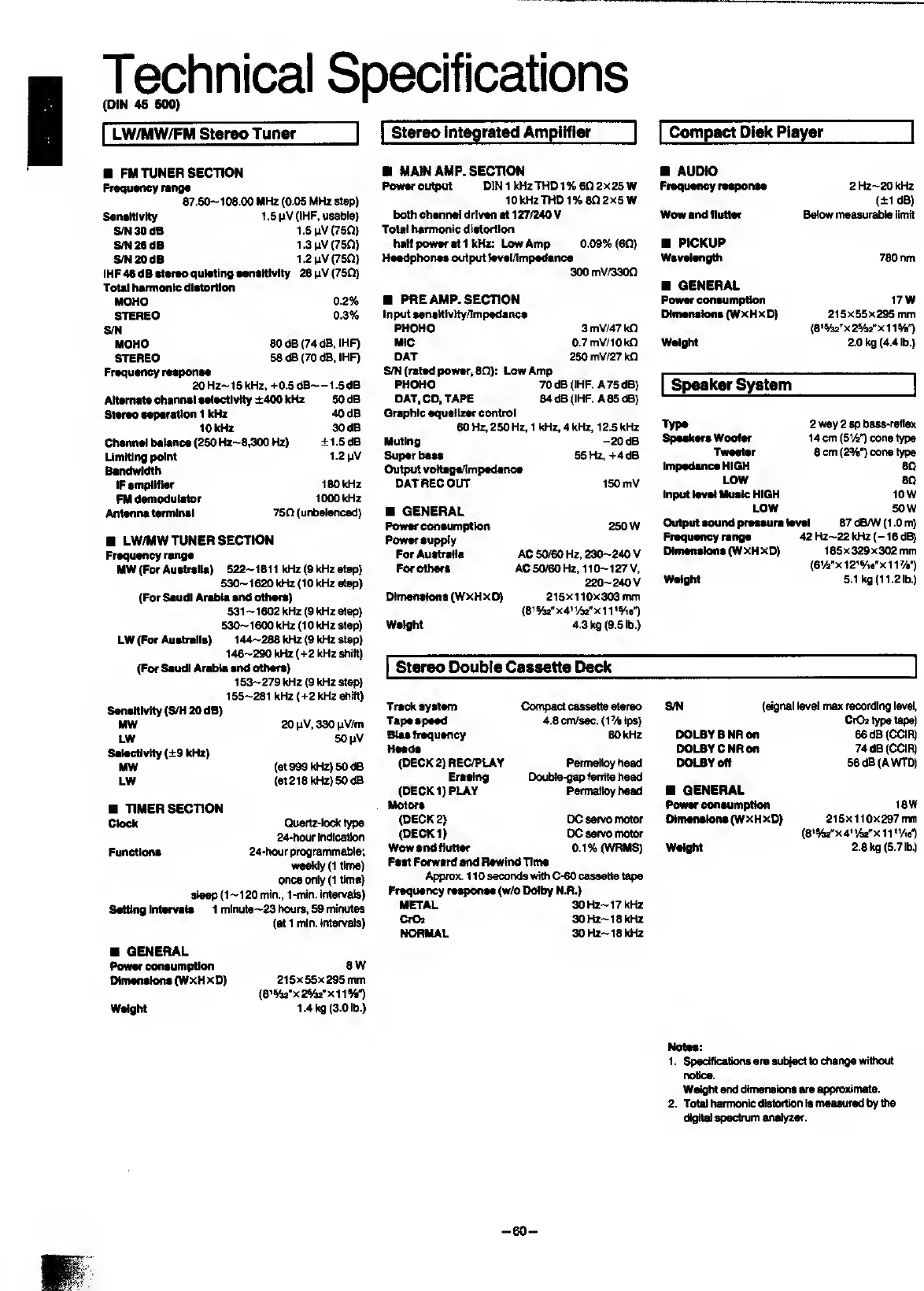

Technical Specifications
/ruu iie KAAV I
(EMN 45 500)
LW/MW/FM Stereo Tuner
Stereo integrated Amplifier Compact Disk Player
■ FM TUNER SECTION
Pr«qu«ncyrange
87.S0~106.00 MHz (0.05 MHz step)
Senenivity 1.5 mV(IHF, usable)
S/N30dB 1.5 mV (750)
Senenivity
S/N30dB
S/N26dB
8/N20dB
1.3 mV (750)
1.2 mV (750)
IHF 46 dB Stereo quieting eenenivity 26 mV (750)
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 60dB(74dB.IHF)
STEREO 56dB(70dB,IHF)
Frequency response
20 Hz-15 kHz, +0.5 dB— 1.5 dB
Altemate channel selectivity ±400 kHz 50 dB
Stereo separaUon 1 kHz 40 dB
10kHz 30dB
Channel balance (250 Hz~6,300 Hz) ±1.5 dB
Limning point 1.2 mV
Bandwidth
IFamplHier 180 kHz
FM demodulator 1000 kHz
Antenna terminal
750 (unbalanced)
■ LW/MW TUNER SECTION
Frequency range
MW (For Australia) 522~1611 kHz (9 kHz step)
530~1620 kHz (10 kHz step)
(For Saudi Arabia artd others)
531 ~1602 kHz (9 kHz step)
530~1600 kHz (10 kHz step)
LW (For Australia) 144~286 kHz (9 kHz step)
146~290 kHz (+2 kHz shift)
(For Saudi Arabia and others)
153~279kHz (9kHzst^)
155-281 kHz (+2 kHz Shift)
Sensnivny(S/N20dB)
MW 20 mV, 330 MV/m
LW 50 mV
8electivny(±9kHz)
MW (at 999 kHz) 50 dB
LW (at216kHz)S0dB
■ TIMER SECTION
Clock Quartz-lock type
24-hour indication
Functions 24-hour programmable;
weekly (1 time)
once only (1 time)
sleep (1-120 min., 1 -min. intervals)
Setting Intervals 1 minute~23 hours, 59 minutes
(at 1 min. Intervals)
■ GENERAL
Power consumption
DImenaiona (WxH x D)
■ MAIN AMP. SECTION
Powaroutput DIN 1 kHzTHD1%6a2x25W
10ld1zTHD1%6a2x5W
bottr chanr>ei driven at 127/240 V
Total harmonic distortion
half power at 1 kHz: Low Amp 0.09% (6Q)
Headphones output level/impectence
300mV/3300
6W
215x55x295 mm
(8’%z'x2%2-x11W)
1.4 kg (3.0 lb.)
■ PREAMP. SECTION
Input aensitivlty/impedanee
PHONO 3 mV/47 kO
MIC 0.7 mV/10 kQ
DAT 250 mV/27 kO
S/N (raM power, 6Q): Low Amp
PHONO 70dB(IHF.A75dB)
DAT, CD, TAPE 84dB(IHF. A85dB)
Graphic equalizer control
80 Hz, 250 Hz, 1 kHz, 4 kHz. 12.5 kHz
Muting -20 dB
Super bass 5SHz,+4dB
Output voltage/lmpedartce
DATRECOUT ISOmV
■ GENERAL
Power consumption
Power supply
For Aus^lla
For others
Dimertslons (WxHxD)
AC 50/60 Hz, 230-240 V
AC 50/60 Hz,110-127V.
220-240 V
215x110x303 mm
(8’%2'x4”/52"x11’ViO
4.3 kg (9.5 lb.)
Stereo Double Cassette Deck
Track system Corr^>act cassette stereo
Tape speed 4.8 cm/sec. (1 % ips)
Bias frequency 80 kHz
Heads
(DECK 2) REC/PLAY Permalloy head
Erasing Double-gap ferrite head
(DECK 1) PLAY Permalloy head
Motors
(DECK 2) DC servo motor
(DECK1) DC servo motor
Wowandflutter 0.1%(WRMS)
Fast Forward and Rewind Tima
Approx. 110 seconds with C-60 cassette tape
Frequency re sp onse (w/o Dolby N.R.)
METAL 30 Hz-17 kHz
CrOi 30 Hz-16 kHz
NORMAL 30 Hz-16 kHz
■ AUDIO
Frequency response
Wowandflutter
■ PICKUP
Wavelength
■ GENERAL
Power consumpdon
Dlmenaions(WxHxD)
Speaksr System
2 Hz-20 kHz
(±1dB)
Below measurable limit
17W
215x55x295 mm
(8'%2’’x2%2"x11%”)
2.0 kg (4.4 lb.)
Type 2 way 2 sp bass-reflex
Speakers Woofer l4cm(5'/^lconetype
Tweeter 6 cm (2%”) cone type
Impedance HIGH 8Q
LOW 60
Input level Music HIGH 10 W
LOW SOW
Output sound pressure level 67 dB/W (1.0 m)
Frequency range 42 Hz-22 kHz (-16 dB)
Dimensions (WxHxD) 165x329x302 mm
(6’/4''x12’Vie''x11%')
Weight 5.1 kg(11.2lb.)
/N (signal level max recording level.
CrOs type tape)
DOLBY B NR on 66 dB (CCIR)
DOLBY C NR on 74 dB (CCIR)
DOLBY off 56dB(AWTD)
■ GENERAL
P ower consumption
Dhnensiona (WXHXD)
16W
215x110 x 297 mm
(8Wx4”A2'’x11”/i«T
2.6 kg (5.7 lb.)
Notes:
1. Specifications are subject to change without
notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the
digital spectrum mialyzer.
