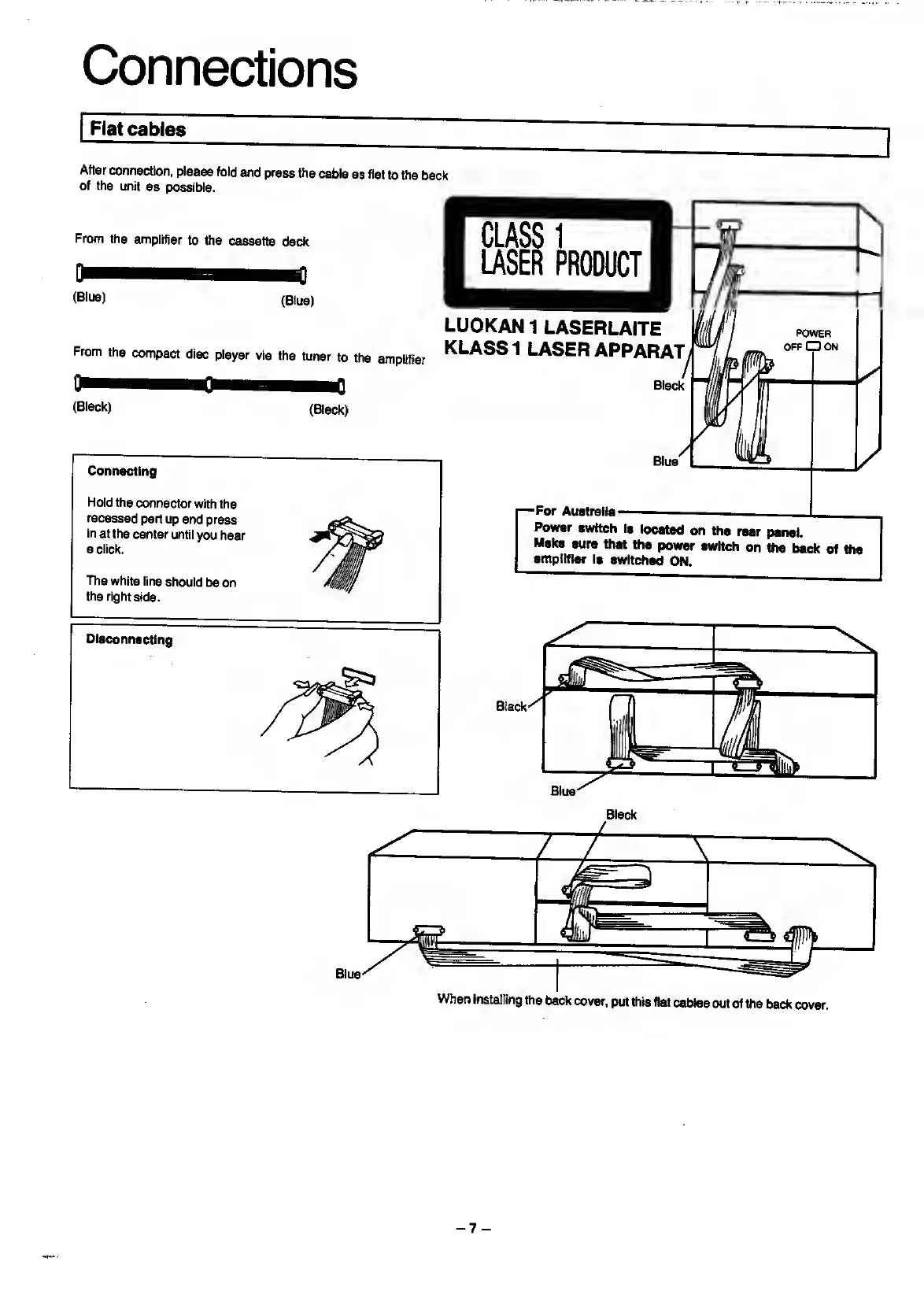

Panasonic SC-CH7 - Connections

Connections
Flat cables
After connection, please fold and press the cable as flat to the bac
of the unit as possible.
From the amplifier to the cassette deck
From the compact disc player via the tuner to the amplifier
(Black) (Black)
Connecting
Hold the connector with the
recessed part up and press
in at the center until you hear
a click.
The white line should be on
the right side.
Disconnecting
hen installing the back cover, put this flat cables out of the back cover.
- 7 -
