Panasonic SC-CH7 - Speaker cables

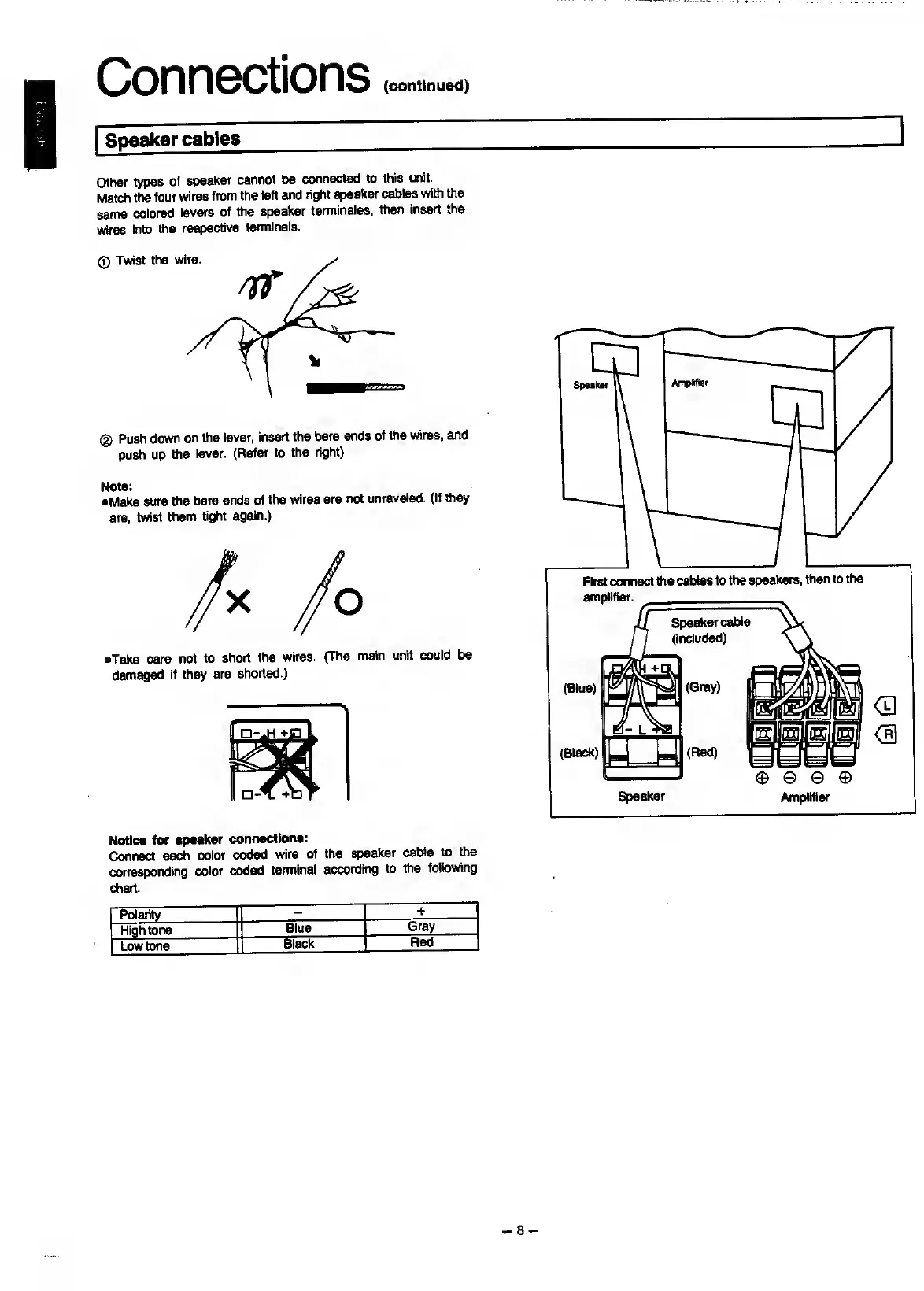

Connections (continued)
Speaker cables
other t^s of speaker cannot be connected to this unit.
Match the four wires from the left and right speaker cabies with the
same coiored ievers of the speaker terminaies, then insert the
wires into the respective terminais.
(D Push down on the iever, insert the bare ends of the wires, and
push up the iever. (Refer to the right)
Note:
•Make sure the bare ends of the wires are not unraveied. (If ^ey
are, twist them tight agsun.)
•Take care not to short the wires. (The main unit could be
damaged if they are shorted.)
• e e e ®
Speaker Amplifier
Notice for speaker connections:
Connect each color coded wire of the speaker caWe to the
corresponding color coded terminal according to the following
chart.
Polarity
-
+
High tone
Blue
Gray
Low tone
Black
Red
- 8 -
