Panasonic SC-DP1 User Manual

12
RQT6815
Getting started

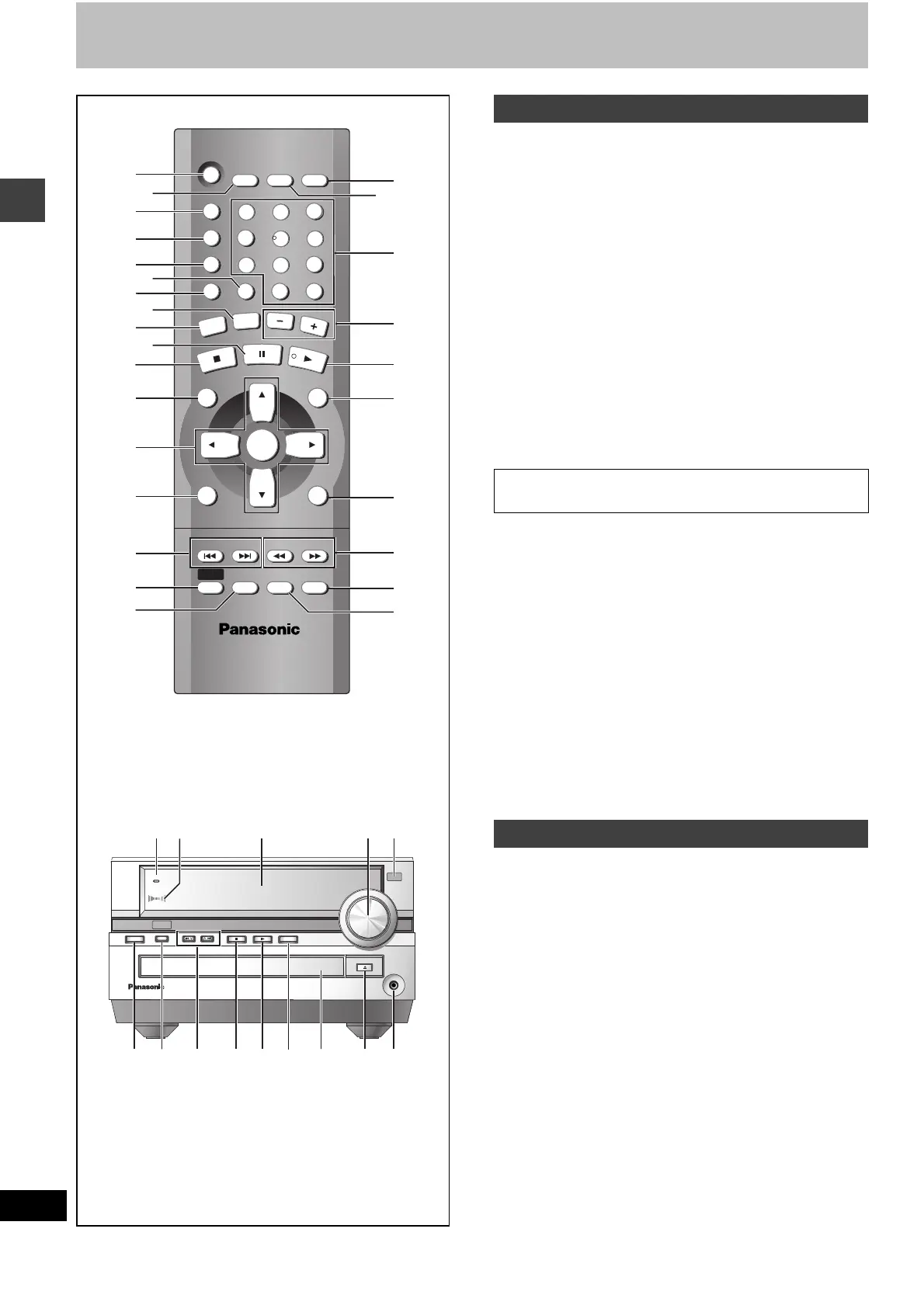

Control reference guide
1 Standby/on, TV standby/on switch [Í, TVÍ]. . . . . . . . .10, 28
2 Setup, TV/VIDEO button [SETUP, TV/VIDEO] . . . . . . . . .10, 28
3 Program button [PROGRAM] . . . . . . . . . . . . . . . . . . . . . .16, 26
4 Play mode button [PLAY MODE] . . . . . . . . . . . . . . . . . . .16, 26
5 Repeat button [REPEAT]. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Subtitle button [SUBTITLE] . . . . . . . . . . . . . . . . . . . . . . . . . .17
7 Audio button [AUDIO] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Muting button [MUTING]. . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
9 Tuner/Aux button [TUNER/AUX]. . . . . . . . . . . . . . . . . . . . . . .26
: Pause, Position memory button [;, P.MEMORY]. . . . . . . . .13
; Stop, Cancel button [∫, CANCEL] . . . . . . . . . . . . . . . . . .13, 16
< Direct navigator, Top menu, Page button
[DIRECT NAVIGATOR, TOP MENU, PAGE]. . . . . . . . .14, 19, 22
= Cursor buttons [3, 4, 2, 1], Enter button [ENTER] . . . . .10
These buttons have the following functions.
[3, 4]: TV volume buttons [TV VOL i,j] . . . . . . . . . . . . . . . .28
[2, 1]: TV channel buttons [TV CH X,W]. . . . . . . . . . . . . . . . .28
> GUI display, Display button [GUI DISP, DISPLAY] . . . . .23, 28
? Skip, Preset channel buttons
[: 9, X SKIP W] . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 26
@ Shift button [SHIFT]
A Advanced Surround, Cinema button
[SURROUND, CINEMA] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
B Play timer, Sleep timer button [FPLAY, SLEEP]. . . . . . . . . .29
C Clock/Timer button [CLOCK/TIMER] . . . . . . . . . . . . . . . .11, 29
D Numbered buttons [1–9, 0, S10] . . . . . . . . . . . . . . . . . . . . . .14
E Volume buttons [s, r, VOLUME] . . . . . . . . . . . . . . . . . . . . . .13
F Play button [1 DVD/CD] . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
G Play list, Menu, Group button
[PLAY LIST, MENU, GROUP]. . . . . . . . . . . . . . . . . . . .14, 15, 22
H Return, Angle button [RETURN, ANGLE] . . . . . . . . . . . .10, 17
I Slow/search, Tuning buttons
[6, 5 SLOW/SEARCH] . . . . . . . . . . . . . . . . . . . . . . . .14, 26
These buttons have the following functions.
[6]: Quick replay button [QUICK REPLAY] . . . . . . . . . . . . . .19
[5]: Zoom button [ZOOM] . . . . . . . . . . . . . . . . . . . . . . . . . . .18
J Double re-master, Subwoofer button
[DOUBLE RE-MASTER, SUBWOOFER]. . . . . . . . . . . . . .27, 28
K Sound, Dialogue enhancer button [SOUND, D.ENH] . . .19, 27
Buttons 9, ? and F function the same as the controls on the
remote control.
L AC supply indicator [AC IN]
This indicator lights when the unit is connected to the AC power
supply.
M Advanced Surround indicator . . . . . . . . . . . . . . . . . . . . . . . .19
N Display
O Volume control [VOLUME, DOWN, UP] . . . . . . . . . . . . . . . . .13
P Remote control signal sensor
Q Standby/on switch [Í/I POWER] . . . . . . . . . . . . . . . . . . . . . .10
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
R Advanced Surround button [ADVANCED SURROUND] . . . .19
S Stop, Demo button [∫, –DEMO] . . . . . . . . . . . . . . . . . . . .11, 13
T Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
U Open/close button [< OPEN/CLOSE] . . . . . . . . . . . . . . . . . .13
V Headphone jack [PHONES] . . . . . . . . . . . . . . . . . . . . . . . . . .29
TVÍ
TV/VIDEO
SETUP
PROGRAM
132
465
798
0
S 10
REPEAT
AUDIO
TUNER/AUX
DIRECT
NAVIGATOR
TOP MENU
M
ENU
CANCEL
MUTING VOLUME
SUBTITLE
PLAY MODE
CLOCK/
TIMER
SLEEP
F PLAY
Í
P.MEMORY
TV VOL
r
TV VOLs
PAGE
ENTER
GUI DISP
DISPLAY
QUICK REPLAY ZOOM
SHIFT
SURROUND
CINEMA D.ENH SUBWOOFER
SOUND
DOUBLE
RE-MASTER
SLOW/SEARCH
ANGLE
RETURN
TV
CH
X
TV
CH
W
X SKIP W
GROUP
DVD/CD
ENTER
132
465
798
0
S 10
1
B
D
E
F
G
H
I
J
K
C
3
4
5
7
9
;
<
=
>
?
@
A
2
6
8
:
PLAY LIST
PHONES
UPDOWN
AC IN
VOLUMETUNER/AUXDVD/CDPOWER
/
//
I
- DEMO
OPEN/CLOSE
ADVANCED
SURROUND
Í
QR ? STF VU9
LM N PO
Remote control
To use functions labeled in orange:
While pressing [SHIFT], press the corresponding button.
Main unit

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
