Panasonic SC-DP1 User Manual

7
RQT6815
Simple setup

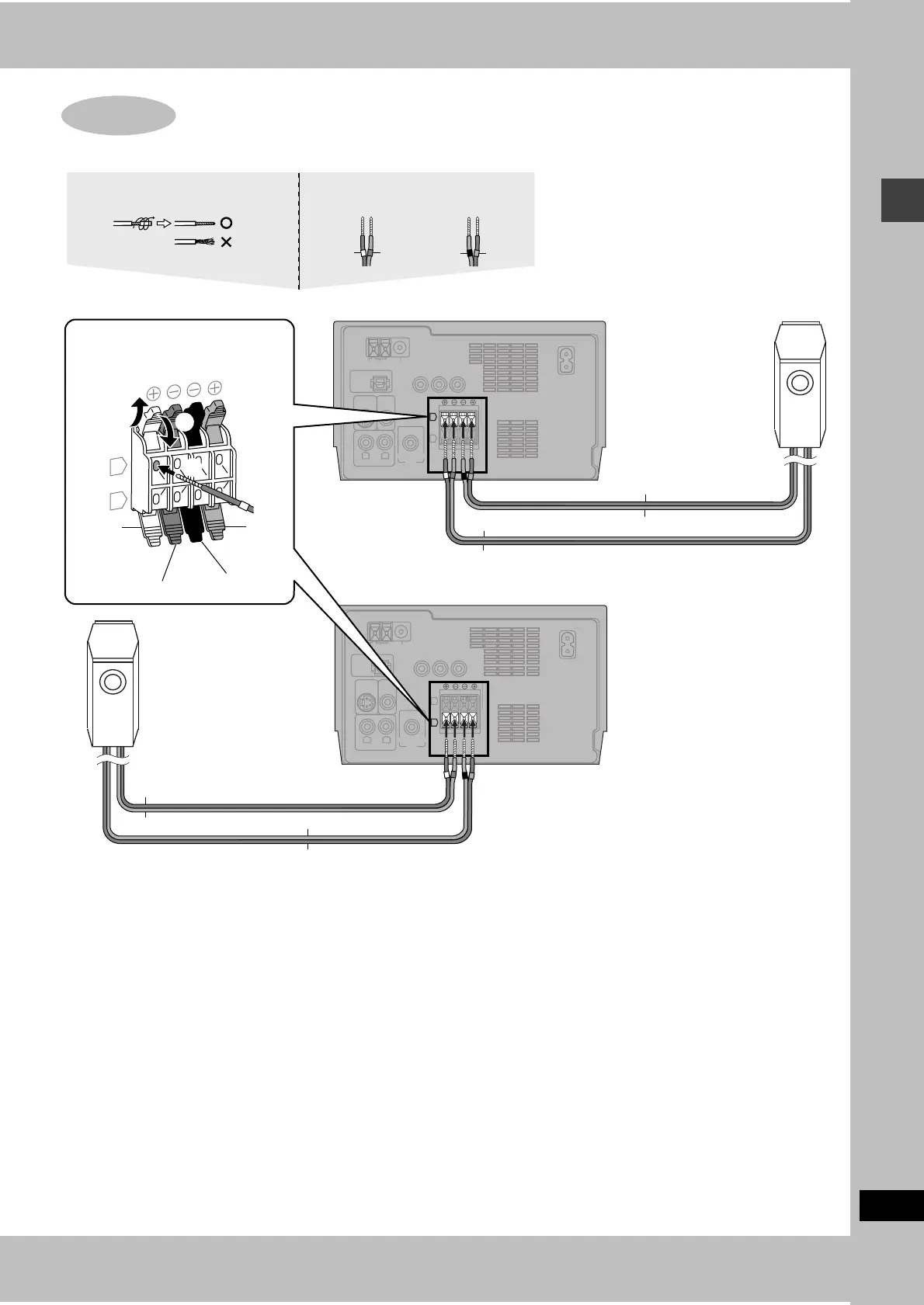

STEP2 Connecting the speakers
Twist the vinyl tip and pull off.
Confirm the colors of the tags on the
ends of the cords.
Red
White
Blue
Black
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANT
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
+--+
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANT
Copper(Red tag)
Copper(White tag)
Silver(Black tag)
Silver(Blue tag)
Left speaker
Right speaker
Copper(Red tag)
Copper(White tag)
Silver(Black tag)
Silver(Blue tag)
L
1
2
3
SPEAKERS(SB-DP1)
HIGH(6≠) LOW(6≠)
Blue
Red
Black
White
2
R
L
Connect cords so tag colors match
the terminal colors.
[Note]
≥Never short-circuit positive (i) and negative (j)
speaker wires.
≥Be sure to connect only positive (copper) wires to
positive (i) terminals and negative (silver) wires
to negative (j) terminals.
Incorrect connection can damage the speakers.

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
