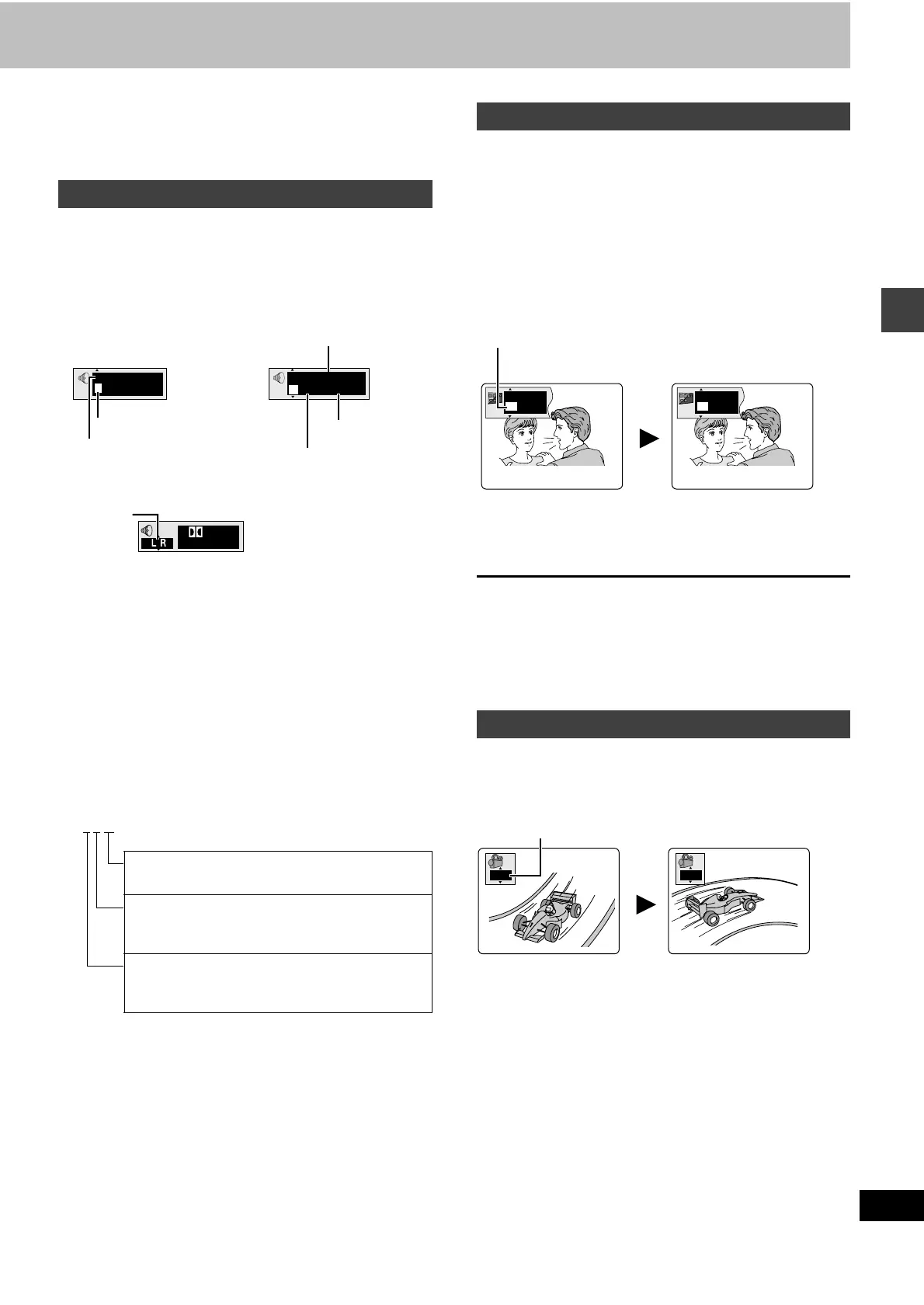

Disc operations
≥“–” or “––” is displayed instead of the language number in
circumstances such as when no language is recorded on the disc.
[VCD] (SVCD only)
Soundtrack and subtitle numbers may change even if corresponding
soundtracks are not recorded.
[RAM] [DVD-A] [DVD-V] [VCD]
(Discs with multiple soundtracks)
During play
Press [AUDIO].
The number changes each time you press the button.
≥You can also use this button to turn the vocals on and off on
karaoke discs. Read the disc’s instructions for details.
[DVD-A]
≥Play restarts from the beginning of the soundtrack when changing
soundtracks that are accompanied by still pictures.
≥Even if a second soundtrack isn’t recorded, two soundtrack
numbers will normally be shown when you press [AUDIO]. The
soundtrack currently playing is number 1.
Signal type/data
LPCM/PPCM/ÎDigital/DTS: Signal type
k (kHz): Sampling frequency
b (bit): Number of bits
ch (channel): Number of channels
Example:
3
/2 .1ch
[DVD-A] (Motion picture parts only)
[DVD-V]
[VCD] (SVCD only)
(Discs with multiple subtitle languages)
You can change the subtitle language and turn the subtitles on and
off.
[RAM]
You can turn the subtitles on and off.
During play
Press [SUBTITLE].
The number changes each time you press the button.
≥In some cases, the subtitle language is not changed to the
selected one immediately.
≥If the subtitles overlap closed captions recorded on discs, turn the
subtitles off.
To clear/display the subtitles
1 Press [SUBTITLE].
2Press [1]. ([DVD-A] [DVD-V] [VCD])
3Press [3, 4] to select “OFF” or “ON”.
∫ Changing the position and brightness of the
subtitles (➡ page 25)
[DVD-A] [DVD-V]
During play
Press [SHIFT]r[ANGLE].
The angle changes each time you press the buttons.
Soundtracks
.1: Low frequency effect
.1: (not displayed if there is no signal)
.0: No surround
.1: Mono surround
.2: Stereo surround (left/right)
.1: Center
.2: Front leftiFront right
.3: Front leftiFront rightiCenter
192k24b 2ch
LPCM
Digital
Î
1
1
1 English 3/2.1 ch
Soundtrack selected
Soundtrack playing
Audio language
[DVD-A]
Signal type/data
(➡ below)
[DVD-V]
Number of
channels (➡ below)
1 2/0 ch
Digital
[RAM] [VCD]
LR>L>R
^-----------}
Example: [RAM]
Subtitles
Angles
I love you
English
ON
1
Je t’aime
French
ON
2
Example: [DVD-V]
1
2

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
