Simple setup
Simple setup
≥Use only supplied speakers
Using other speakers can damage the unit and sound quality will
be negatively affected.
≥Set the speakers up on an even surface to prevent them from
falling. Take proper precautions to prevent the speakers from
falling if you cannot set them up on an even surface.
Positioning for best effect
How you set up your speakers can affect the bass and the sound
field. Note the following points.
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result
in excessive bass. Cover walls and windows with thick curtain.
Notes on speaker use
≥You can damage your speakers and shorten their useful life if you
play sound at high levels over extended periods.
≥Reduce the volume in the following cases to avoid damage.
–When playing distorted sound.
–When the speakers are receiving howling from a record player,
noise from FM broadcasts, or continuous signals from an
oscillator, test disc, or electronic instrument.
–When adjusting the sound quality.
–When turning the unit on or off.
If irregular coloring occurs on your television
These speakers are designed to be used close to a television, but
the picture may be affected with some televisions and setup
combinations.
If this occurs, turn the television off for about 30 minutes.
The television’s demagnetizing function should correct the
problem. If it persists, move the speakers further away from the
television.

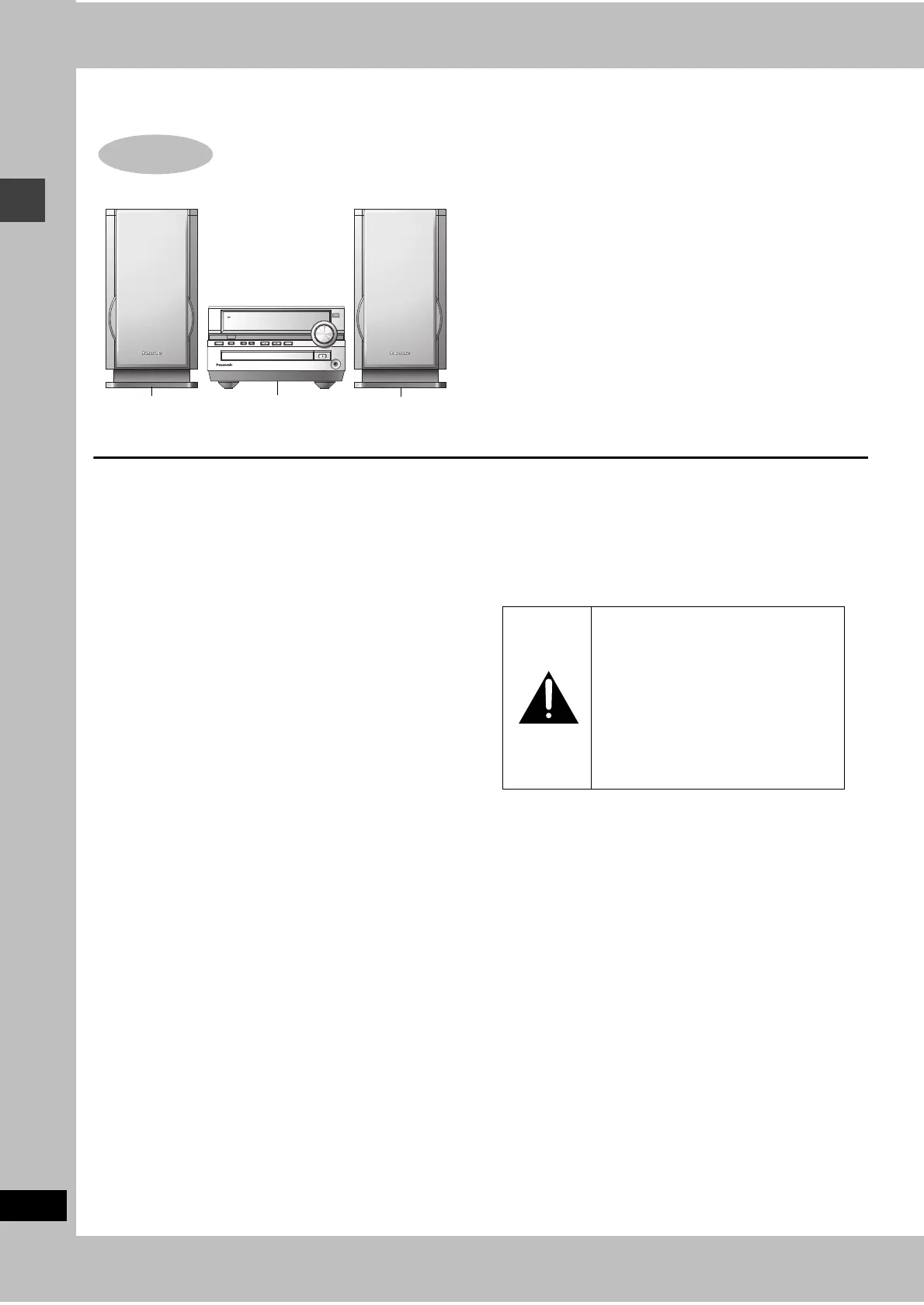

STEP1 Locating
Í
PHONES
UPDOWN
AC IN
VOLUMETUNER/AUXDVD/CDPOWER
/
//
I
- DEMO
OPEN/CLOSE
ADVANCED
SURROUND
Í
Speaker
(SB-DP1)
Speaker
(SB-DP1)
Main unit
(SA-DP1)
[Note]
Keep your speakers at least 10 mm (
13
/32″ ) away from the system
for proper ventilation.
Caution
≥Use the speakers only with the
recommended system. Failure to do
so may lead to damage to the
amplifier and/or the speakers, and
may result in the risk of fire. Consult
a qualified service person if damage
has occurred or if you experience a
sudden change in performance.
≥Do not attach these speakers to walls
or ceilings.

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
