Panasonic SC-DP1 User Manual

9
RQT6815
Simple setup
Do not;
≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which
can damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
∫ Use
Aim at the sensor, avoiding obstacles, at a maximum range of
7 m (23 feet) directly in front of the unit.

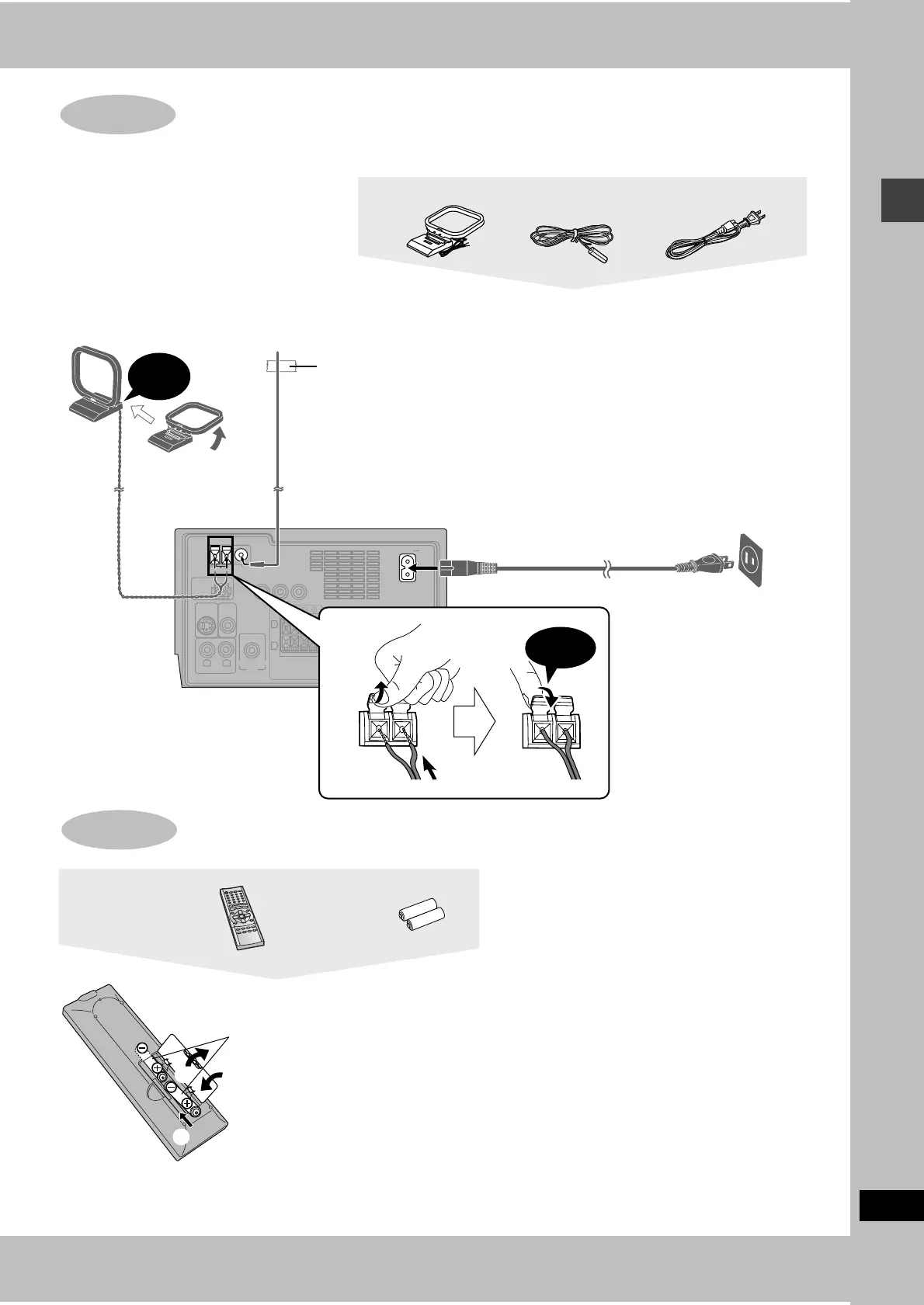

STEP4 Connecting the antennas and AC power supply cord
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
+-
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANTAM ANT
LOOP
AC IN
FM ANT
1
2
3
AM loop antenna AC power supply cord
Click!
Connect the AC power supply cord after
all other connections are complete.
AM loop antenna
Stand the antenna up on
its base.
Keep loose antenna cord
away from other wires
and cords.
Click!
FM indoor antenna
Fix the other end of the antenna where
reception is best.
Conserving power
The unit consumes power (approx. 0.9 W) even when it is
turned off with [Í]. To save power when the unit is not to be
used for a long time, unplug it from the household AC outlet.
You will need to reset some memory items after plugging the
unit.
Adhesive tape
AC power supply cord
To household AC outlet
(AC 120 V, 60 Hz)
FM indoor antenna
STEP
5
The remote control
1
2
R6, AA, UM-3
3
≥Insert so the poles (i and j)
match those in the remote
control.
≥Do not use rechargeable type
batteries.
Remote control
Batteries

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
