33
RQT6815
Other functions
Using other equipment
Before connection
≥Disconnect the AC power supply cord.
≥Turn off all equipment and read the appropriate operating instructions.
≥The equipment connections described are examples.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.

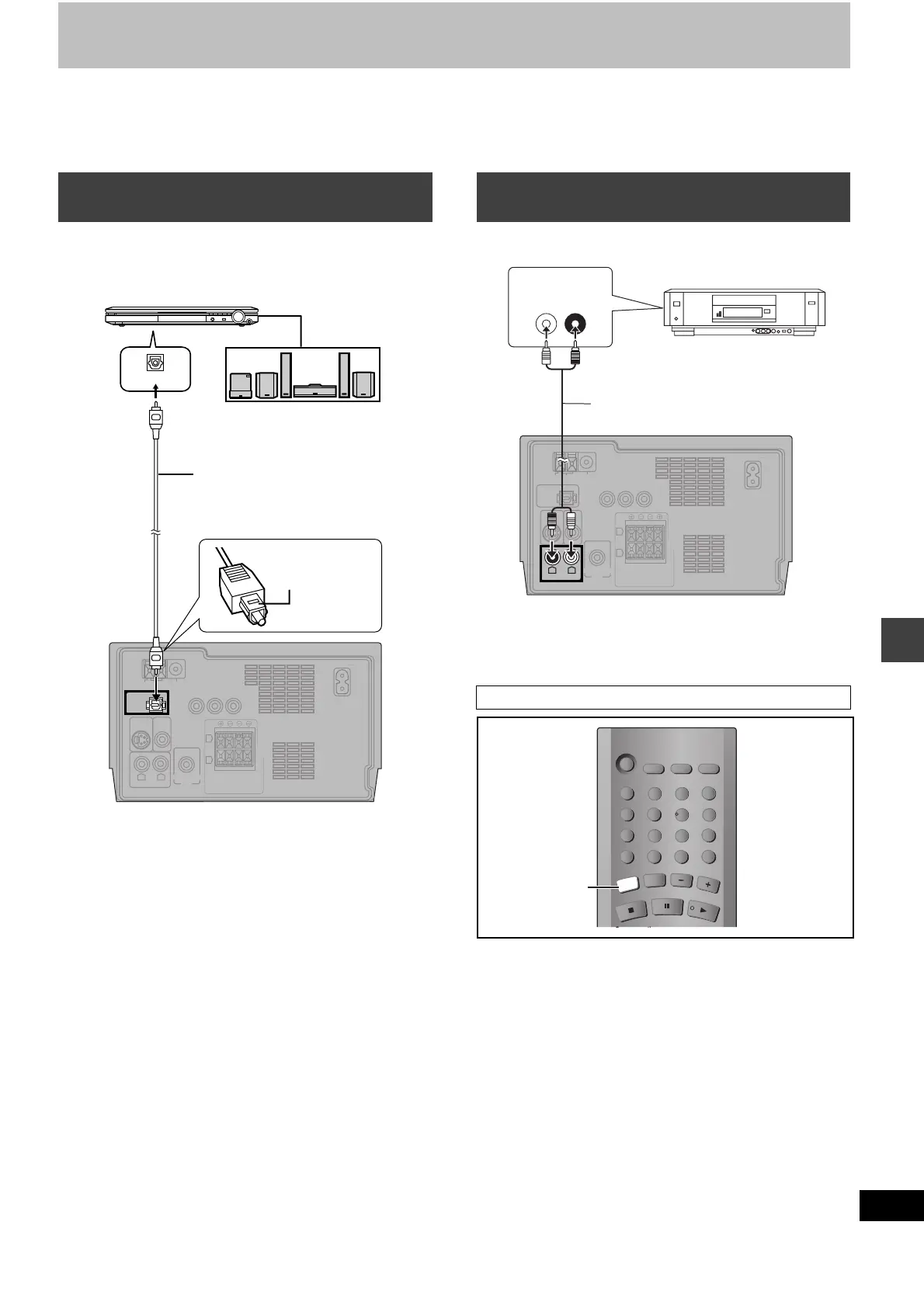

Enjoy the powerful movie theater and hall-like sound available with
multiple channel audio found on DVDs by connecting an amplifier
and speakers.
To enjoy multi-channel surround sound
Connect an amplifier with a built-in decoder or a decoder-amplifier
combination.
Change the settings in “Digital output” (➡ page 31).
≥You can only use DTS Digital Surround decoders that are
compatible with DVD.
Recording Output
≥With DVD, the following conditions must be met: a the disc doesn’t
have protection preventing digital recording, and b the recording
equipment can handle signals with a sampling frequency of 48
kHz.
≥You cannot record WMA/MP3.
When recording DVDs, make the following settings.
–Advanced surround: OFF (➡ page 19)
–PCM Digital Output: Up to 48 kHz (➡ page 31)
–Dolby Digital/DTS Digital Surround: PCM (➡ page 31)
You can playback the sound from a video cassette recorder, tape
deck, laser disc player, etc., through this unit’s speaker.
When connecting a record player
We recommend using a record player with a built-in phono equalizer.
If your player doesn’t have a built-in equalizer, connect it first to a
separate equalizer and then connect that to this unit.
1 Press [TUNER/AUX] to select “AUX”.
Each time you press the button:
FM )AM )AUX
^_____b
2 Start play.
Home Theater—Enjoying more
powerful sound
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH
(6≠)
AC IN
SPEAKERS
(SB-DP1)
LOW
(6≠)
FM ANT
(DVD) IN
VOLUME
Amplifier
Speakers (example)
Connect three or more
speakers for surround
sound.
Optical digital audio cable
Do not bend sharply when
connecting.
Insert fully, with this
side facing up.
Listening to an external source
through this unit’s speaker
To playback
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH
(6≠)
AC IN
SPEAKERS
(SB-DP1)
LOW
(6≠)
FM ANT
R
L
AUX
AUDIO OUT
LR
Audio cable
Video cassette recorder
TVÍ
TV/VIDEO
SETUP
PROGRAM
132
465
798
0
S
10
REPEAT
AUDIO
T
U
N
E
R
/A
U
X
R
E
C
T
NAVIGATOR
U
PLAY LIST
CANCEL
MUTING
VOLUME
SUBTITLE
PLAY MODE
CLOCK/
TIMER
SLEEP
F
PLAY
Í
P.MEMORY
TV VOL
r
DVD/CD
TUNER/AUX
