Panasonic SC-DP1 User Manual

8
RQT6815

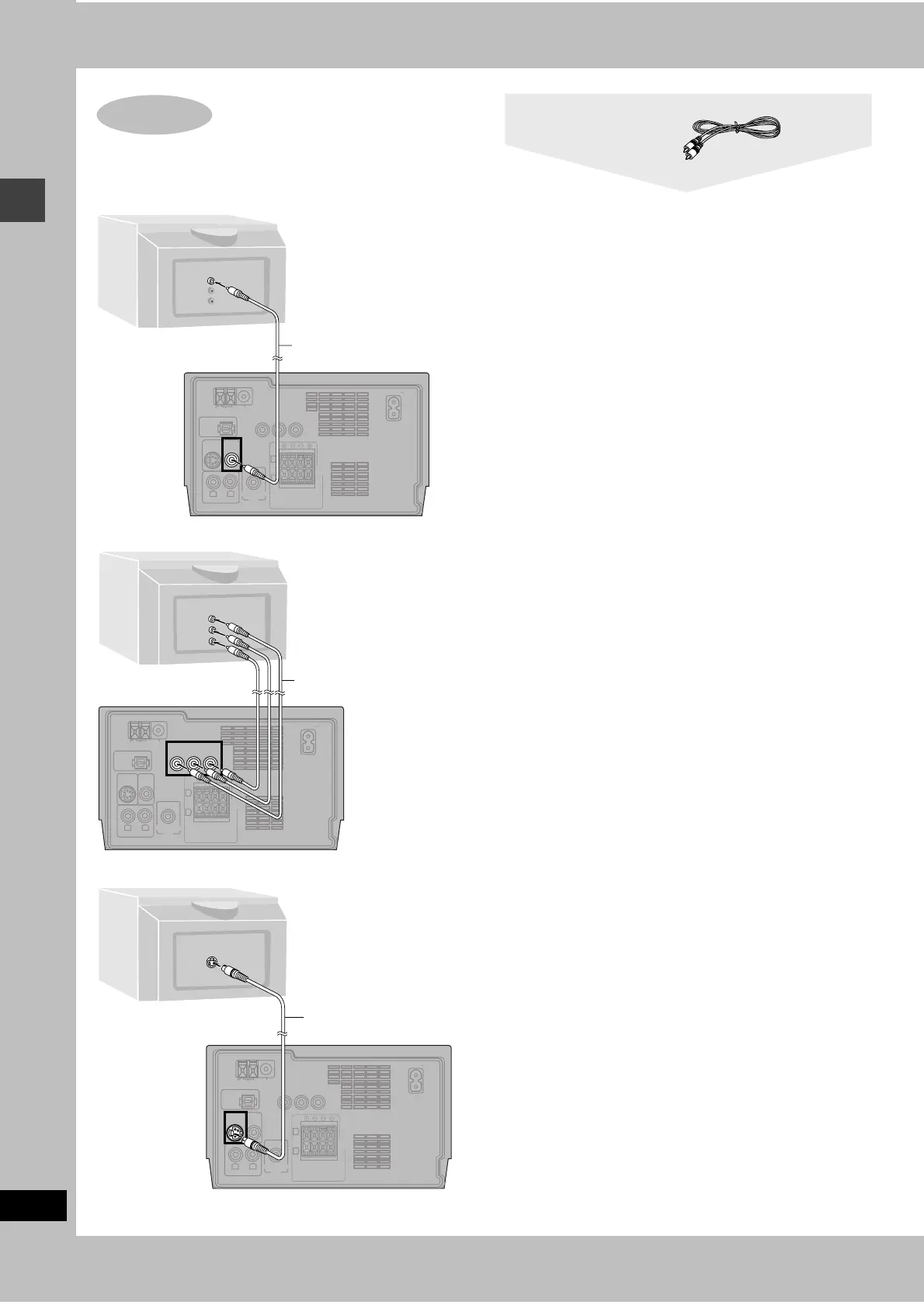

Simple setup
∫ Connecting a television with a VIDEO IN terminal
∫ Connecting a television with COMPONENT VIDEO IN terminals
∫ Connecting a television with an S-VIDEO IN terminal
STEP3 Television
Video cable
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANT
VIDEO
IN
VIDEO
OUT
Connect directly to your television.
Do not connect the unit through a video cassette recorder, because
the picture may not be played correctly due to the copy guard.
Television
(not included)
Video cable
(included)
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANT
COMPONENT
VIDEO IN
Y
P
B
P
R
COMPONENT VIDEO OUT
P
R
P
Y
B
Video cables
(not included)
COMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or progressive output
(➡ page 10) and provide a purer picture than the S-VIDEO OUT
terminal. Connection using these terminals outputs the color difference
signals (P
B/PR) and luminance signal (Y) separately in order to achieve
high fidelity in reproducing colors. The description of the component
video input terminals depends on the television or monitor (e.g. Y/P
B/PR,
Y/B-Y/R-Y, Y/C
B/CR). Connect to terminals of the same color.
≥After making this connection, change the black level for a better picture
(➡ page 30, Video—Black Level Control).
AM ANT
COMPONENT VIDEO OUT
P
R
P
Y
B
EXT
OPTICAL
OUT
S-VIDEO
R
R
L
L
AUX
SUBWOOFER
OUT
OUT
VIDEO
OUT
LOOP
75≠
HIGH (6≠)
AC IN
SPEAKERS (SB-DP1)
LOW (6≠)
FM ANT
S-VIDEO
IN
S-VIDEO
OUT
S-VIDEO OUT terminal
The S video terminal achieves a more vivid picture than the VIDEO OUT
terminal by separating the chrominance (C) and luminance (Y) signals.
(Actual results depend on the television.)
S-video cable
(not included)

Panasonic SC-DP1 Specifications

Amplifier Specifications

RMS Output Power (Low-channel)	25 W per channel (6 ≠)
RMS Output Power (High-channel)	25 W per channel (6 ≠)
Total Bi-Amp power	50 W per channel
Total RMS Stereo mode power	100 W
Total RMS Dolby Digital mode power	100 W
PMPO Output Power	1000 W
DIN Output Power (Low-channel)	20 W per channel (6 ≠)
DIN Output Power (High-channel)	20 W per channel (6 ≠)
Total DIN Power in Stereo mode	80 W
Total DIN Power in Dolby Digital mode	80 W
AUX Input sensitivity	250 mV
AUX Input impedance	19 k≠

FM Tuner Specifications

Frequency range	87.50–108.00 MHz (50-kHz step)
Sensitivity	2.5 µV (IHF)
S/N 26 dB	2.2 µV
Antenna terminals	75 ≠ (unbalanced)
Preset station	15

AM Tuner Specifications

Frequency range (UK, Europe, Russia)	522–1629 kHz (9-kHz steps)
Frequency range (Australia, N.Z., Southeast Asia)	522–1629 kHz (9-kHz steps)/520–1630 kHz (10-kHz steps)
Sensitivity	560 µV/m
Preset station	15

Speaker Specifications

Type	2 way, 2 speaker system
Tweeter	6 cm cone type 6 ≠
Woofer	10 cm cone type 6 ≠
Input power (High)	50 W (Music)
Input power (Low)	50 W (Music)
Output sound pressure level	81 dB/W (1.0 m)
Crossover frequency	2.2 kHz
Frequency range (16 dB)	47 Hz–32 kHz
Frequency range (10 dB)	64 Hz–31 kHz
Dimensions (WxHxD)	158k276k280 mm
Mass	2.4 kg

General Specifications

Power supply (UK, Australia, N.Z.)	AC 230–240 V, 50 Hz
Power supply (Europe, Russia)	AC 230 V, 50 Hz
Power supply (Southeast Asia except Thailand)	AC 230–240 V, 50/60 Hz
Power supply (Thailand)	AC 220 V, 50 Hz
Power consumption	105 W
Dimensions (WxHxD)	205k123.5k383.5 mm
Mass	4.2 kg
Power consumption in standby mode	1 W
