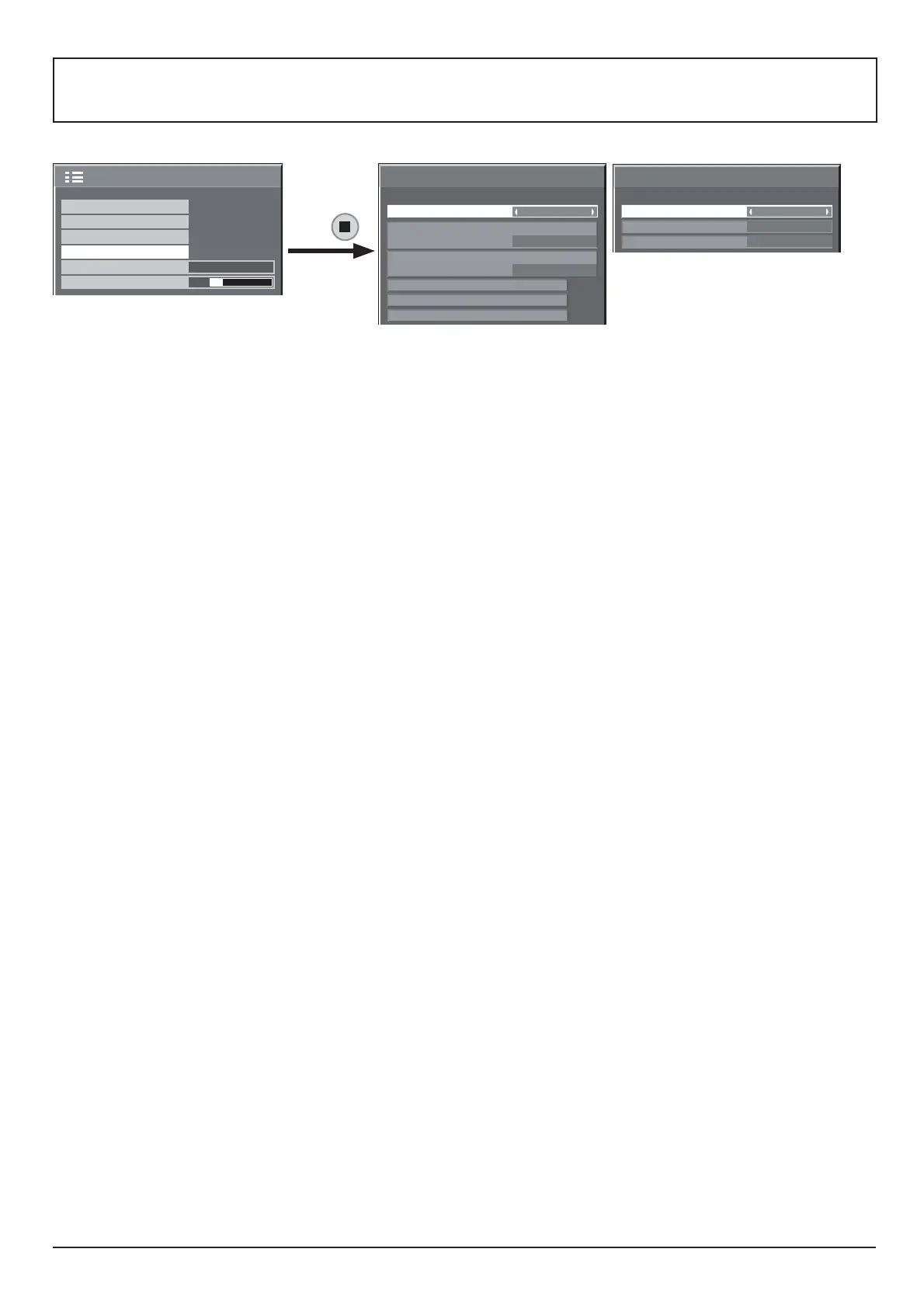

Network Setup

Network Setup
DIGITAL LINK mode
Auto
LAN Setup
DIGITAL LINK status
Digital Interface Box
Control I/F Select
RS-232C (Serial)
Display Name
LF6-00
1/2
Network Setup
AMX D.D.
Off
Off
Off
Crestron Connected™
Extron XTP
2/2
Press
2/2Setup
MULTI DISPLAY Setup
Set up Timer
PRESENT TIME Setup
Network Setup
Menu Display Duration
15 S
Menu Transparency
20


You can switch the communication method of DIGITAL

 Auto: The communication method is automatically
selected. HDMI/LAN/RS232C communication can
be used. Ethernet connection can be made.
 : HDMI/LAN/RS232C
communication can be used via a twisted pair
cable transmitter.
 Ethernet: LAN communication can be used via the
LAN terminal of the Display.
Note:
 When “Ethernet” is selected, set the “Control I/F
Select” to “LAN”.

Control I/F Select
 RS-232C (Serial): Control using the Display’s
RS232C.
 LAN: Control using the Display or the LAN terminal
of a twisted pair cable transmitter.
 : Control using the
twisted pair cable transmitter’s RS-232C.
Notes:
 
display can’t respond to all supported commands when
the remote control power is switched “Off”(standby).
 When controlling using the RS232C command from
page 17 to the RS232C terminal of the Display,

RS232C terminal of the “RS-232C (Serial)” or DIGITAL

 When using any of the control techniques listed on
pages 56 to 61, select “LAN”.

Display Name
The name of the Display that is shown on the network
can be changed.

LAN Setup
See page 4848


See page 49


See page 4949


This function allows the Display to be detected by AMX
Device Discovery. For more details, visit the following
website.


Crestron Connected™
When this function is set to on, the Display can be
monitored or controlled via the network using equipment
and application software of Crestron Electronics, Inc.
This Display supports the following application software
from Crestron Electronics, Inc.
 RoomView
®

 Fusion RV
®
 RoomView
®
Server Edition
[Crestron Connected™] is a function to connect to a
system developed by Crestron Electronics, Inc. which
manages and controls multiple system devices connected
to the network.
 For details of “Crestron Connected™”, refer to the
Crestron Electronics, Inc. website (Provided only in
English).
http://www.crestron.com/
For the download of “RoomView
®

the Crestron Electronics, Inc. website (Provided only
in English).
http://www.crestron.com/getroomview


To carry out connection settings with XTP Transmitter


