CONNECTION OF OPTIONAL UNITS
I-33
EXTERNAL PAGING / LOUD RINGING BELL
The External Paging Amplifier (EPA) is the output terminal for external paging. To carry out
external paging, connect the External Paging Adaptor (VA-30966UK) and the External Paging
Amplifier.

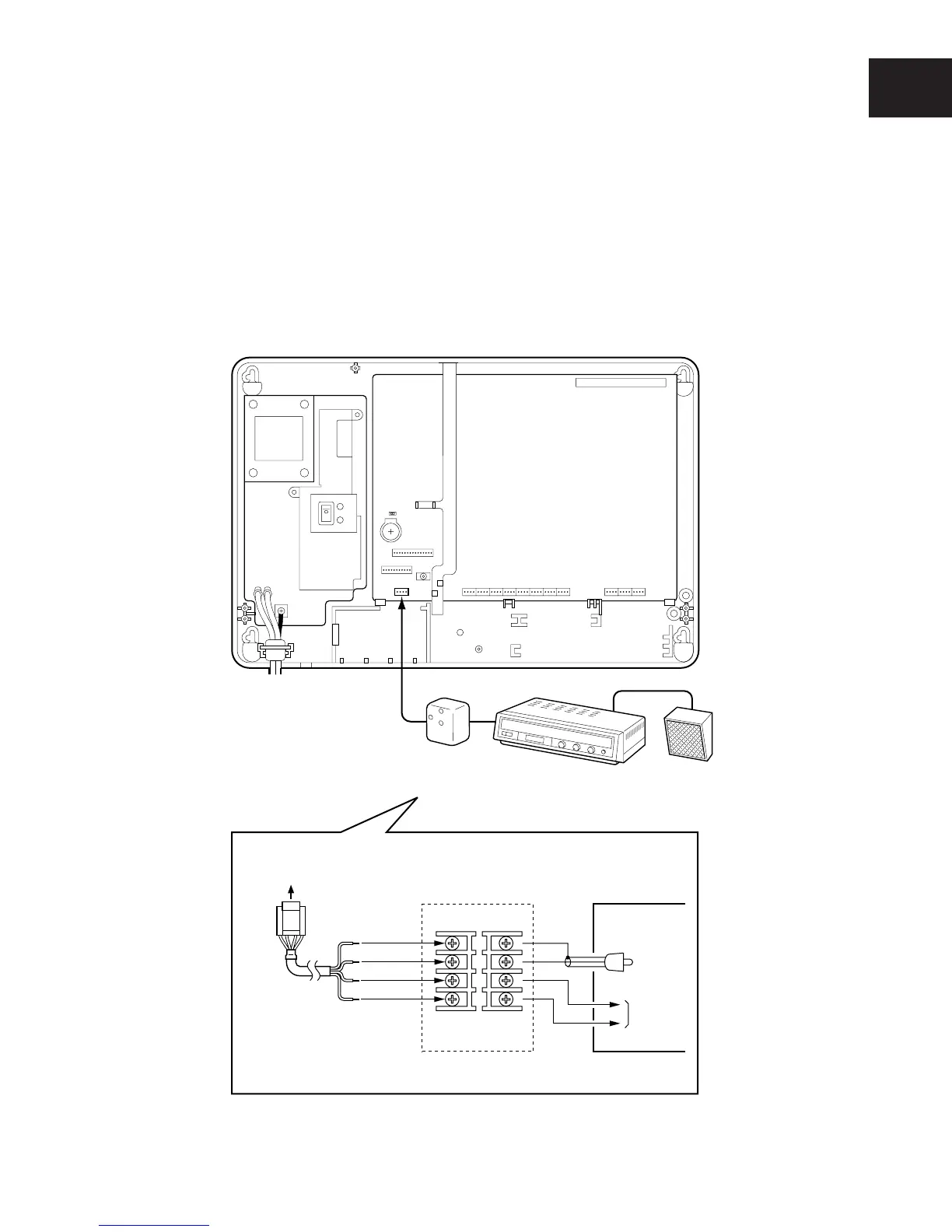

Connecting the External Paging Adaptor and External Paging Amplifier
Connect an external amplifier and external adaptor to the “EPA-OUT/EPA-C” connector (CN8)
inside the CCU. The “EPA-C” terminals control the external amplifier.
NOTE : EPA terminal output impedance: 600 Ohms
EPA terminal output level: -20dB
CCU
CN8
AMP Speaker
External Paging Adaptor
(VA-30966UK)
To EPA
Control
To EPA
IN
14
41
CN 2 CN 3
External Adaptor
(VA-30966UK)
RED
BLUE
ORANGE
GREEN
To the EPA-OUT/
EPA-C connector(CN8)
inside the CCU
AMP
