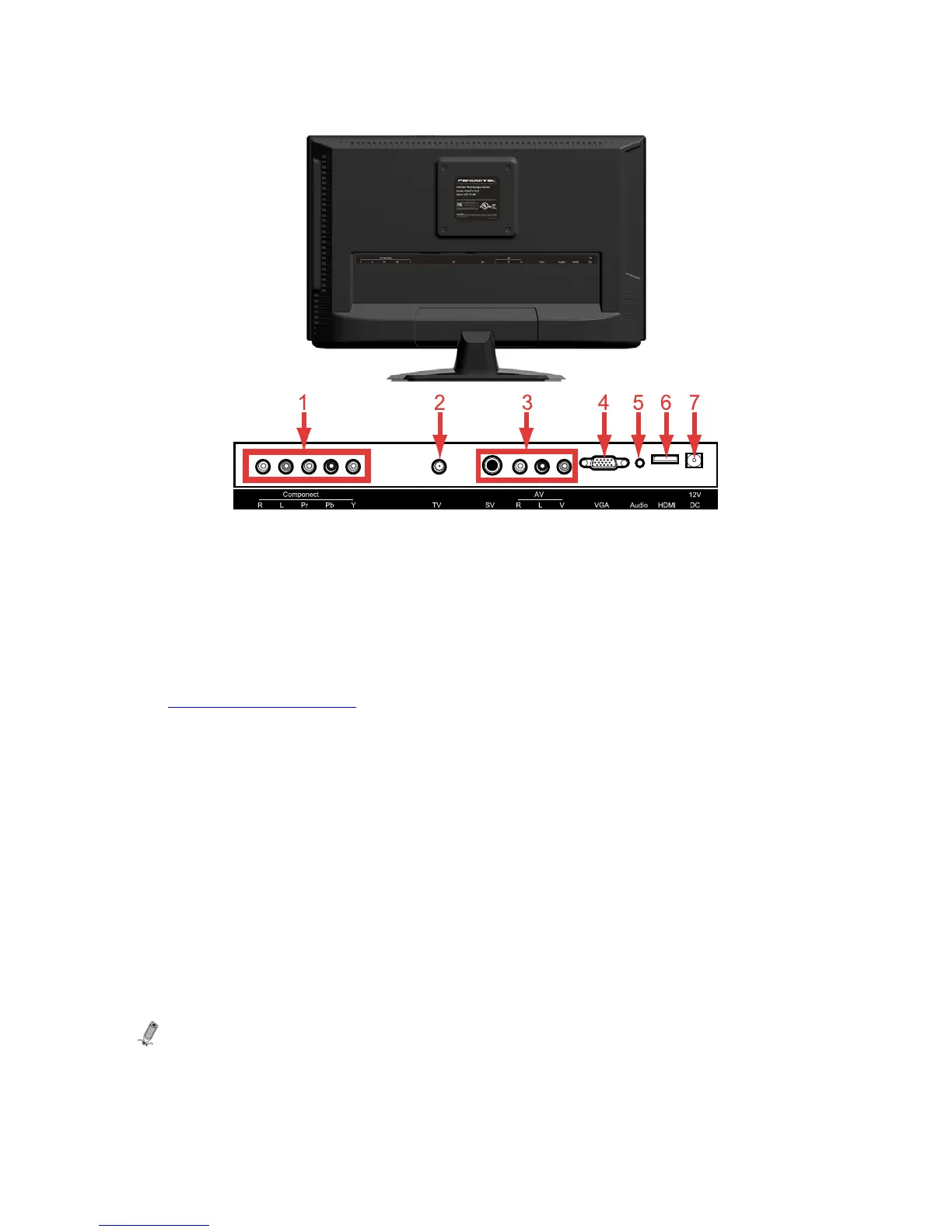

Back Panel Input Connectors

The following descriptions are for connections from left to right.

1. RLPrPbY – Connection ports for DVD players, or satellite / cable set-top boxes that use component

cables. From right to left, connect green, blue, and red for video, and then connect white for left

channel audio, and red for right channel audio.

2. TV – Connection for digital or analog cable without the cable box or over-the-airwave antennas. The

tuner is a hybrid tuner that tunes to both analog and digital channels. This connection uses coaxial

RF cable. For over-the airwave digital stations check the following website:

http://www.antennaweb.org

3. SV and AV – Connect devices that use composite video cables such as VCR or camcorder or video

game consoles. The S-Video connector is associated with AV’s video. Connect the video portion with

either the yellow connector or the S-Video connector. Do NOT connect both video connectors at the

same time, because the audio connection is shared.

4. VGA – Connects to a PC for video using VGA cable. Connect your audio cable to the VGA Stereo

input if you want sound out of the VGA video source.

5. Audio (VGA STEREO INPUT) – Connect a 3.5mm mini-jack audio cable if you want to provide audio

to the TV when using a PC.

6. HDMI – Connect to devices that use HDMI cables, such as Blu-ray or HD DVD player, or HD cable /

satellite set-top box. This connection port receives pure digital audio and high definition signal

through one single cable. This port also can accept a HDCP video device for video.

7. 12V DC – Power connector for providing electricity to the KTC. Connects to the AC power adapter

which connects to the AC power source (wall outlet). (It is very important to use only the AC adapter

included with the KTC.)

Note: When in TV mode, if left idle on a channel connection with very weak or no signal for 5 minutes,

the KTC will automatically switch from TV mode to DPF mode and begin playing a photo

slideshow. This feature is present on all channel connections.
