Parker AC10 series User Manual

13-3 The Default Applications
AC10 Inverter
This Application is ideal for general purpose applications. The set-point is the sum of the two
analogue inputs AI1 and AI2, providing Speed Set-point + Speed Secondary capability.

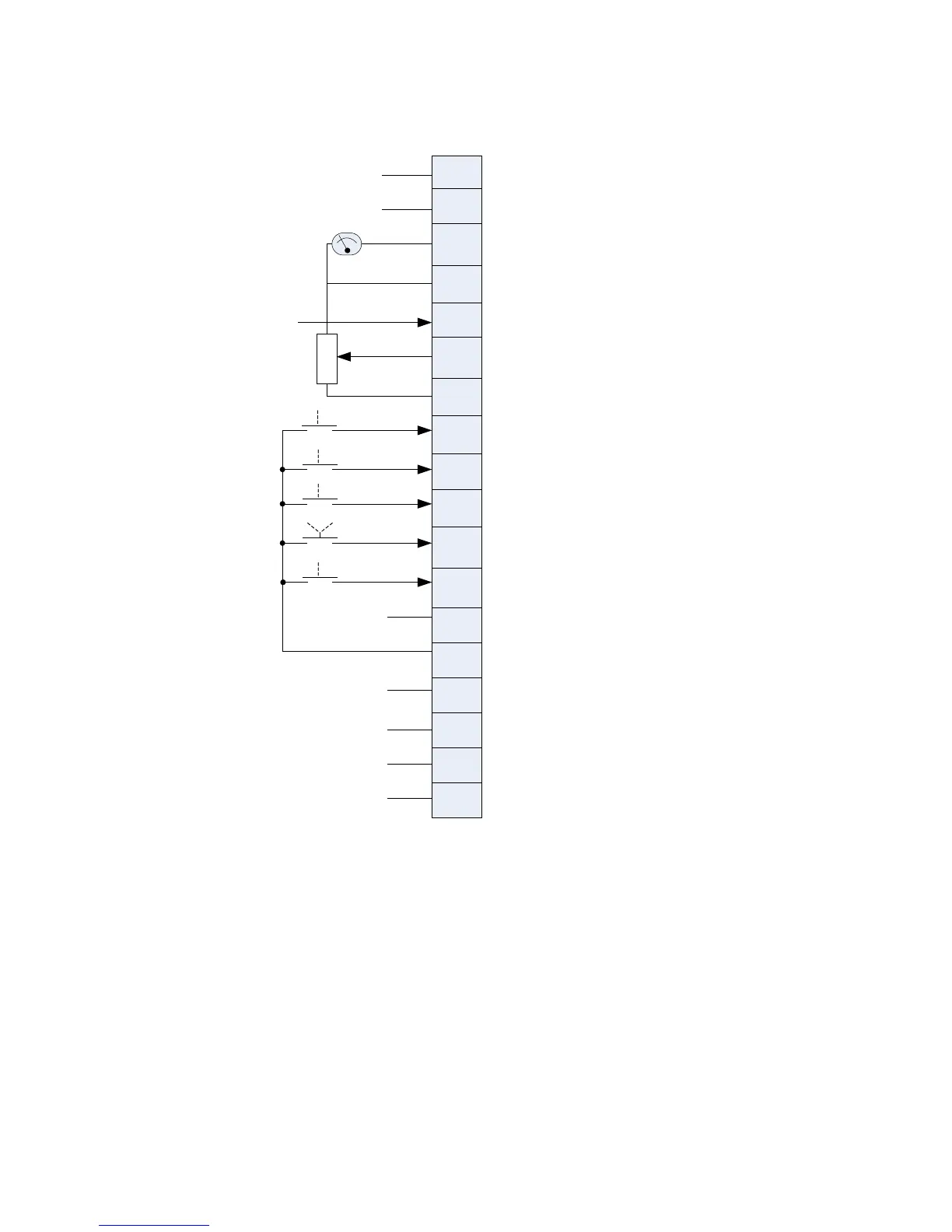

Application 1 : Basic Speed Control
Parameters Setting:
F228 = 1
F106 = 2
F203 = 1
F204 = 2
F207 = 1
F316 = 1
F317 = 58
F318 = 52
F319 = 2
F320 = 8
F431 = 0
Coast stop
1
2
3
5
6
4
7
8
9
10
11
12
13
14
15
16
17
18
TA
TB
TC
1DO
24V
CM
DI1
DI2
DI3
DI4
DI5
10V
1AI
2AI
GND
1AO
A +
B -
REF
Stop
Jog
Direction
Run
Speed trim
not used
not used
Analog output
F431=0 , running
frequency is output.
GND
Speed trim AI2 input 4-20 mA
Speed setpointAI 1 input 0-10V
10V
Coast stop
Stop
Jog
The jogging direction is
controlled by DI2.
Direction
When the function is valid
,
inverter runs reverse
Run
CM
24V
not used
Relay output
TC-Hydraulik - Rsdorfer Str. 8 - 25746 Heide - Lars Lornsen - T: +49 481 909 - 34 - l.lornsen@tc-hydraulik.de - www.tc-hydraulik.de

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
