Parker AC10 series User Manual

Operation and Simple Running 8-6
AC10 Inverter
Press the “Run” key, to autotune the parameters of the motor. After completion of
the tuning, the motor will stop running, and relevant parameters will be stored in
F806～F809. For the details of tuning of motor parameters, please refer to
“Operation process of measuring the motor parameters” in this manual. (Note:
F800=1 is rotating tuning, F800=2 is stationary tuning. In the mode of rotating
tuning, make sure to disconnect the motor from the load).
iv. Set functional parameters of the inverter:
Function code Values
F111 50.00
F200 0
F201 0
F202 0
F203 0
v. Press the “I” key, to start the inverter;
vi. During running, current frequency of the inverter can be changed by pressing ▲ or
▼;
vii. Press the “Stop/Reset” key once, the motor will decelerate until it stops running;
viii. Switch off the air switch, and power off the inverter.
8.3.2 Setting the frequency using the keypad panel, and starting, forward
and reverse running, and stopping inverter through control terminals

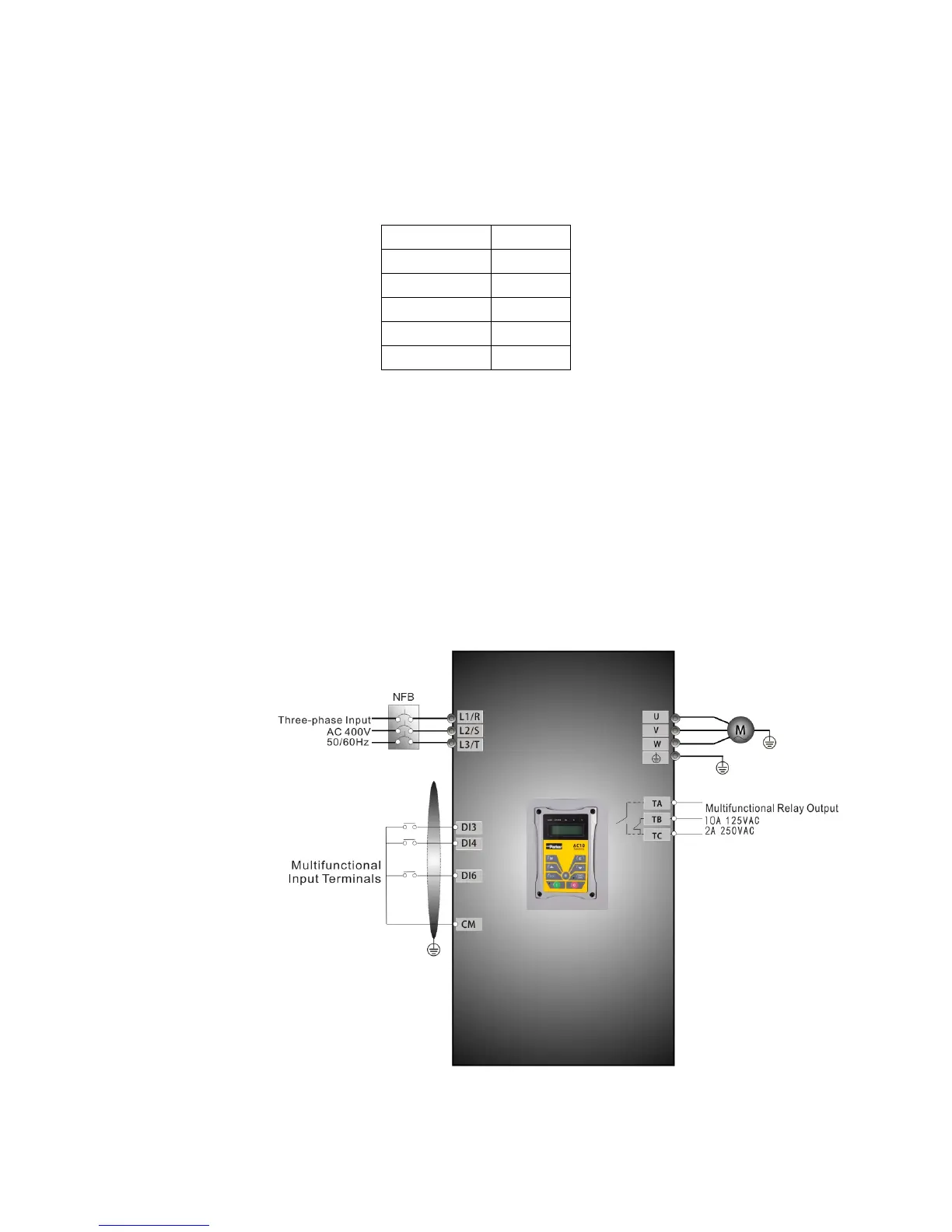

i. Connect the wires in accordance with
Figure 8-2. After having checked the wiring
successfully, switch on the air switch, and power on the inverter;
Figure 8-2 Wiring Diagram 2
TC-Hydraulik - Rsdorfer Str. 8 - 25746 Heide - Lars Lornsen - T: +49 481 909 - 34 - l.lornsen@tc-hydraulik.de - www.tc-hydraulik.de

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
